Without Surround Sound

VIDEO DISTRIBUTOR

Removal and Installation


REMOVAL

1.Remove luggage side lower finisher. Refer to "LUGGAGE SIDE LOWER FINISHER : Removal and Installation" Luggage Side Lower Finisher.

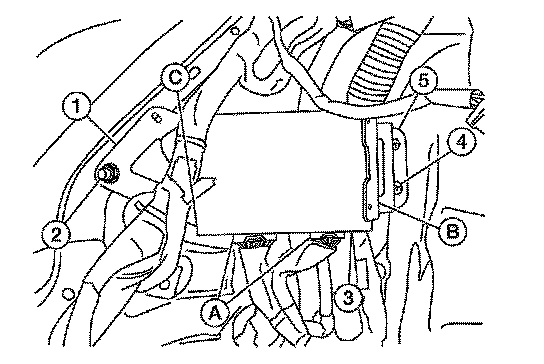

2.Disconnect video distributor harness connectors (A).





3.Remove video distributor nuts (2) and bolts (4).
4.Remove video distributor (3) and brackets (1) (5) from the vehicle as a single unit.
5.Remove screws (B) (C), then remove video distributor (3).

INSTALLATION

Installation is in the reverse order of removal.
Revision: March 20122013 Infiniti JX
