With Surround Sound

POWER SUPPLY AND GROUND CIRCUIT

SUBWOOFER : Diagnosis Procedure

Regarding Wiring Diagram information, refer to "Wiring Diagram" With Surround Sound.

1. CHECK FUSE

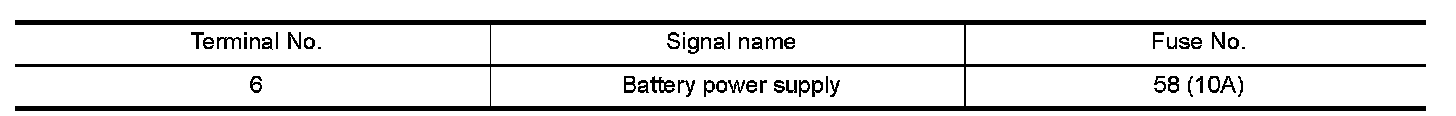

Check that the following fuses are not blown.





Are the fuses blown?
YES- Replace the blown fuse after repairing the affected circuit.
NO- GO TO 2.

2. CHECK POWER SUPPLY CIRCUIT

1.Disconnect subwoofer connector.

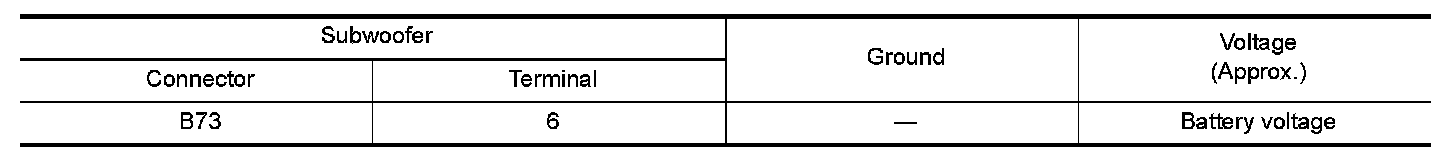

2.Check voltage between subwoofer connector B73 and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness or connectors.

3. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Check continuity between subwoofer connector B73 and ground.
Revision: March 20122013 Infiniti JX





Is the inspection result normal?
YES- Inspection End.
NO- Repair or replace harness or connectors.
