Inspection

MOONROOF UNIT ASSEMBLY

Inspection


WIND DEFLECTOR

1.Open glass lid fully.
2.Visually check for proper installation, damaged/deteriorated components, or foreign objects within mechanism. Correct as required for smooth operation.





3.Check for grease at the wind deflector arm (1) and pivot areas. If necessary, apply a sufficient amount of grease for non-binding operation.
: Front

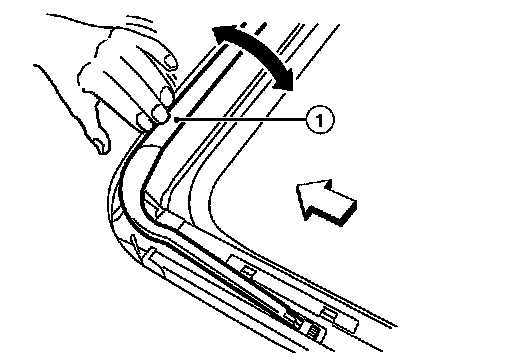

4.Check that the wind deflector (1) moves freely within the moonroof unit assembly while manually pressing down and releasing.
If a malfunction is detected, remove the moonroof unit assembly and visually inspect. If damage is found, replace either wind deflector (1) or moonroof unit assembly as required. Refer to
"Removal and Installation" Service and Repair (WIND DEFLECTOR) or RF54, "Removal and Installation" (MOONROOF UNIT ASSEMBLY).
: Front

LINK AND WIRE ASSEMBLY

NOTE:
Before replacing a suspect part, make sure it is the source of noise being experienced.
1.Check link to determine if coating film has peeled off excessively enough that substrate is visible. Check also to determine if link is the source of noise. Replace as necessary.
2.Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not, add grease as required.
3.Check wire for any damage or deterioration. If any damage is found, replace moonroof unit assembly.
Refer to "Removal and Installation" Removal and Installation

WEATHERSTRIP

1.Visually check weatherstrip for damage, deterioration, or deformation.
- Open glass lid partially to inspect front edge of weatherstrip.
- Tilt up glass lid fully to inspect sides and rear edge of weatherstrip.
If any area of the weatherstrip is found to be damaged, replace the glass lid. Refer to "Removal and Installation" Service and Repair.
2.Check for leakage around glass lid.
- Close glass lid.
- Pour water around surface to determine area of concern.
- For gaps or misalignment, adjust glass lid to specifications. Refer to ADJUSTMENT in this section.
- For damaged sealing surfaces, either replace glass lid, refer to "Removal and Installation" Service and Repair or repair the panel.

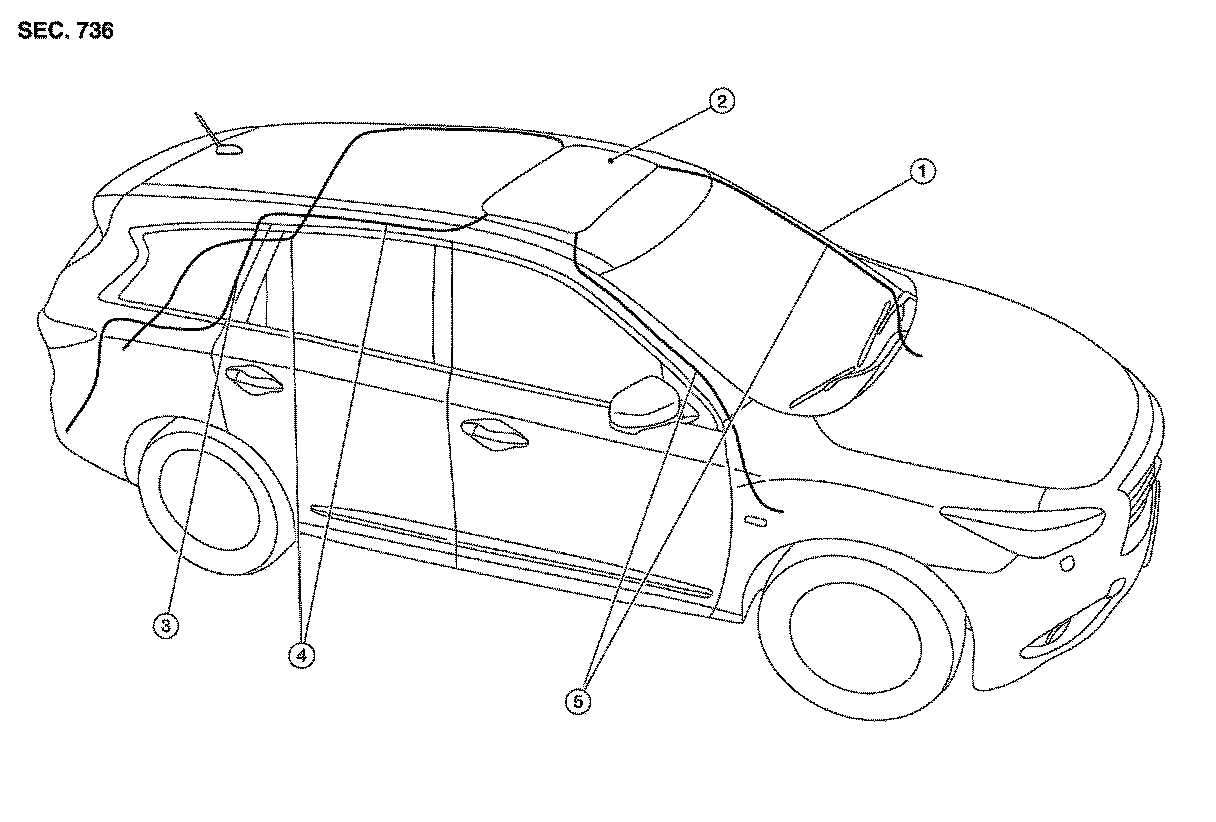

DRAIN HOSES

Revision: March 20122013 Infiniti JX










1.Remove the headlining. Refer to "Removal and Installation" Removal and Installation.

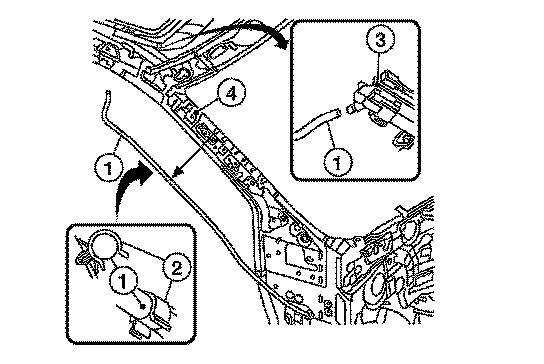

2.From the inside front pillar (4) visually check drain hoses (1) for:
- Proper connection at moonroof unit assembly (3) and drain hose (1).
- Damage, pinch, cracks, deterioration.
- Proper fastening (2) and routing on body panels.
3.Pour water through drain hoses to determine watertight performance.
If damaged or leaking portions in any drain hose is found, replace entire drain hose as necessary.





4.From the inside of the rear quarter panel (3) visually check drain hoses (2) for damage, pinching, cracks, or deterioration.
5.Check for proper connection at moonroof unit assembly (4) and drain hose (2) and for proper routing along the rear side glass (1) and the rear inner quarter panel (3).

ADJUSTMENT


CAUTION:
Revision: March 20122013 Infiniti JX
- Always work with a helper.


- Handle glass lid with care to prevent damage.
NOTE:
- For easier and more accurate installation, always mark each point before removal.
- After any adjustment, check moonroof operation and glass lid alignment.

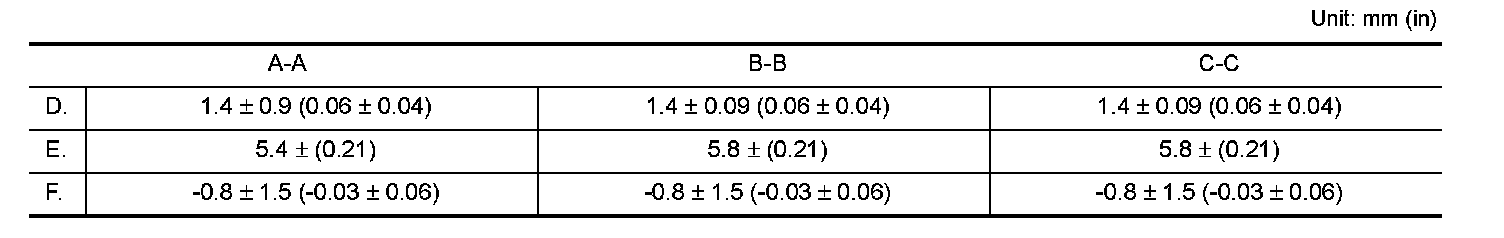

Unit: mm (in)





Gap adjustment (Front and Rear)





1.Open sunshade (1).
: Front

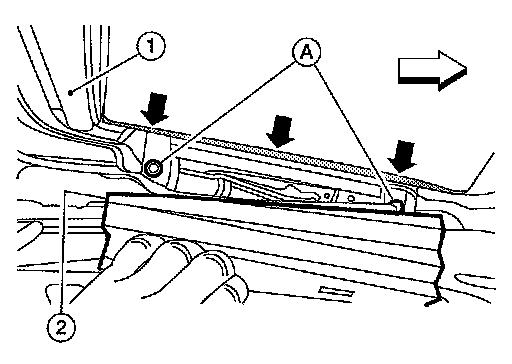

2.Tilt glass lid up, then release side trim cover (2) on each side and set aside.
NOTE:
LH side shown; RH similar.
3.Loosen glass lid bolts (A) (2 each on LH and RH side), then tilt glass lid down.

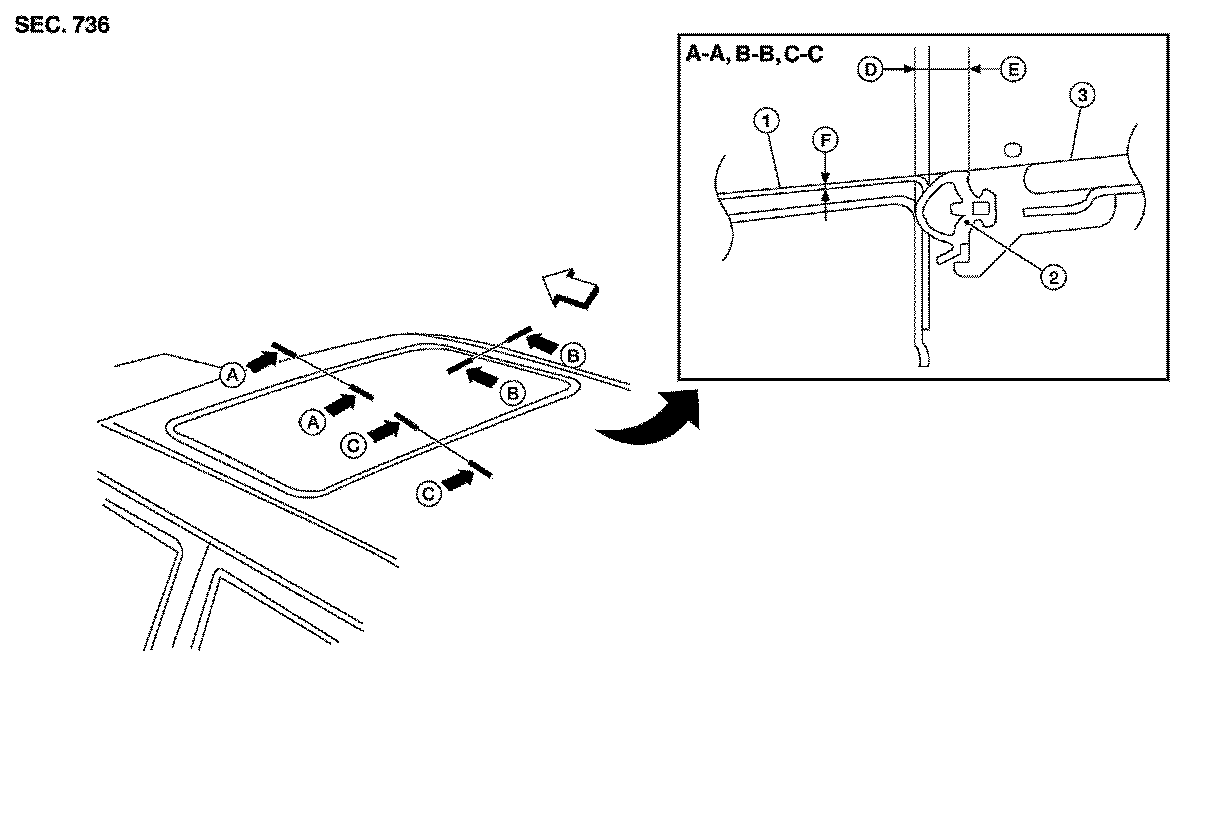

4.Manually adjust glass lid from outside of vehicle until gaps A-A
and C-C are within specification.
NOTE:
Temporarily loosely tighten glass lid, with assembly bolts to prevent movement between each adjustment.
5.Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
6.Tilt glass lid up and tighten bolts.
NOTE:
Revision: March 20122013 Infiniti JX
First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening remaining bolts.
7.Attach side trim covers (LH/RH), then tilt glass lid down.
Gap Adjustment (Sides)
1.Remove headlining. Refer to "Removal and Installation" Removal and Installation.
2.Loosen moonroof unit assembly and moonroof side bracket bolts.
3.Carefully slide moonroof unit assembly side to side or add shims until gap B-B is within specifications.
NOTE:
Temporarily loosely tighten moonroof unit assembly bolts to prevent movement between each adjustment.
4.Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
5.Tighten moonroof unit assembly and moonroof side bracket bolts.
NOTE:
First tighten left front moonroof unit assembly bolt, then right rear to prevent uneven torque while tightening remaining bolts.
6.Install headlining. Refer to "Removal and Installation" Removal and Installation.
Height Adjustment
1.Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
2.Check height difference between roof surface and glass lid surface, then compare to specifications.
3.If necessary, adjust height difference by using the following procedure.
- Loosen glass lid bolts.
- Manually raise/lower glass lid until height difference is within specification.
NOTE:
If necessary, shims may be added between moonroof unit assembly and roof to increase adjustment range. Refer to "Removal and Installation" Removal and Installation.
Temporarily loosely tighten moonroof unit assembly bolts to prevent movement between each adjustment.
- Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
- Tighten glass lid and moonroof side bracket bolts.
NOTE:
First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening remaining bolts.
- After any adjustment, check moonroof operation and glass lid alignment.
Revision: March 20122013 Infiniti JX
