Audible Warning Device

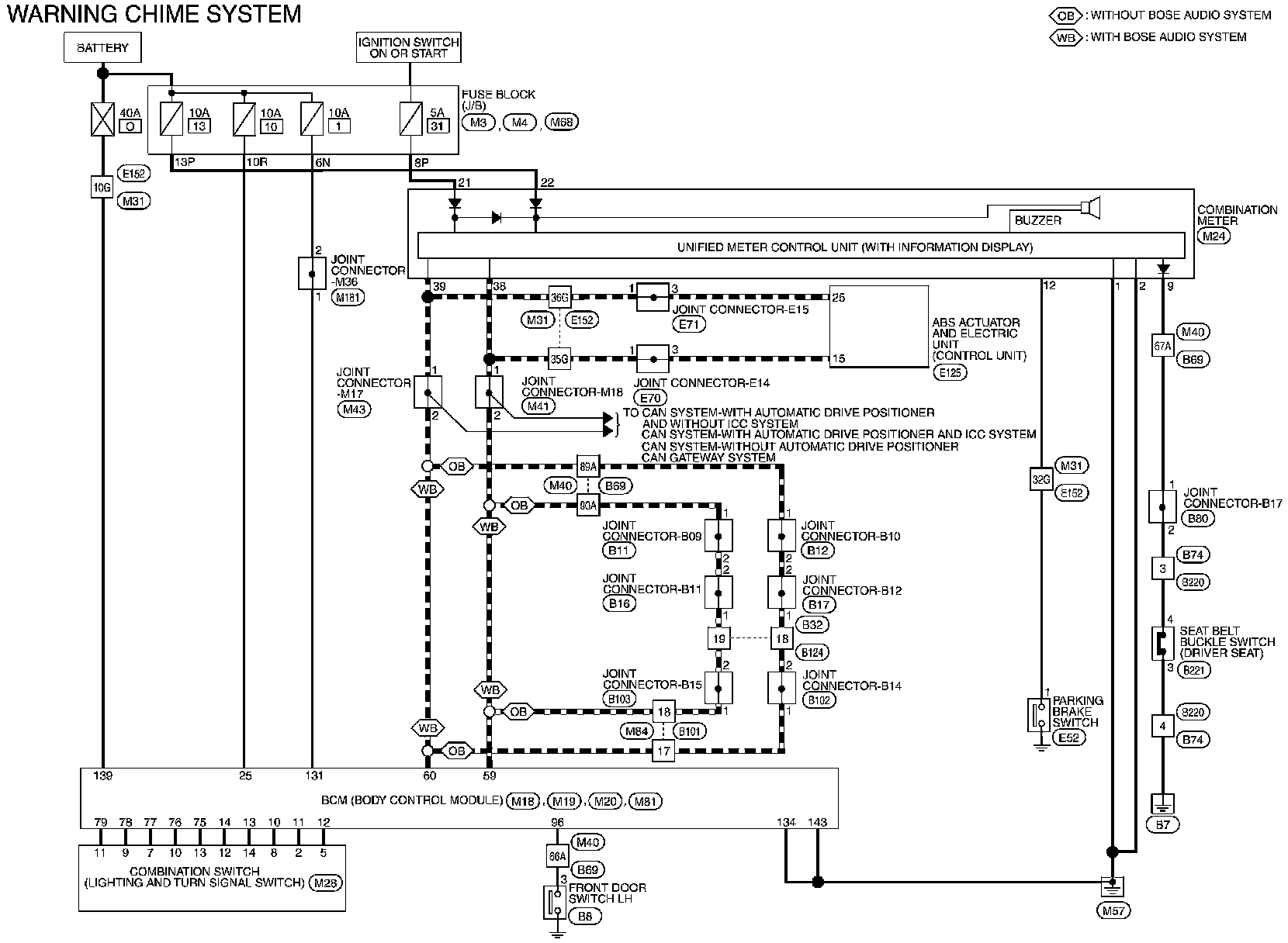

WARNING CHIME SYSTEM

Wiring Diagram






Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX
