The Oil Pressure Warning Continues Displaying, or Does Not Display

THE OIL PRESSURE WARNING CONTINUES DISPLAYING, OR DOES NOT DISPLAY

Description

- The low oil pressure warning message stays on when oil pressure is normal.
- The low oil pressure warning message stays off when oil pressure is low.


Diagnosis Procedure


1. CHECK COMBINATION METER INPUT

1.Start the engine and select METER/M&A on CONSULT.

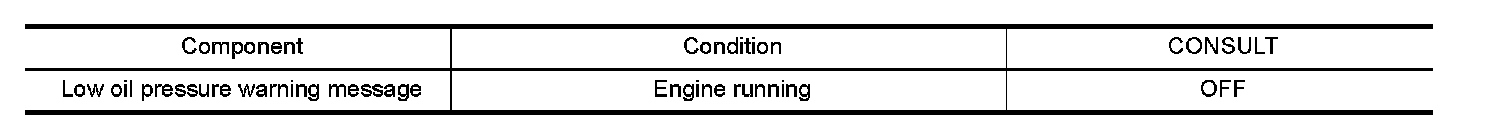

2.Observe OIL W/L DATA MONITOR and the operation of the low oil pressure warning message in the information display.





Is the inspection result normal?
YES- Perform ECM self-diagnosis. Refer to "CONSULT Function" Consult Function.
NO- Replace combination meter. Refer to "Removal and Installation" Service and Repair.
Revision: March 20122013 Infiniti JX
