Component Inspection

WASHER SWITCH

Component Inspection


1. CHECK FRONT WASHER SWITCH

1.Turn the ignition switch OFF.
2.Disconnect combination switch (wiper and washer switch).

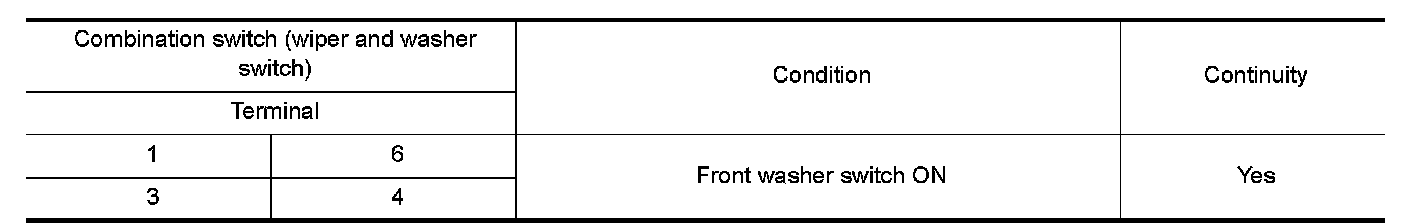

3.Check continuity between the combination switch (wiper and washer switch) terminals.





Is the inspection result normal?
YES- GO TO 2.
NO- Replace combination switch (wiper and washer switch). Refer to "Removal and Installation" Service and Repair.

2. CHECK REAR WASHER SWITCH

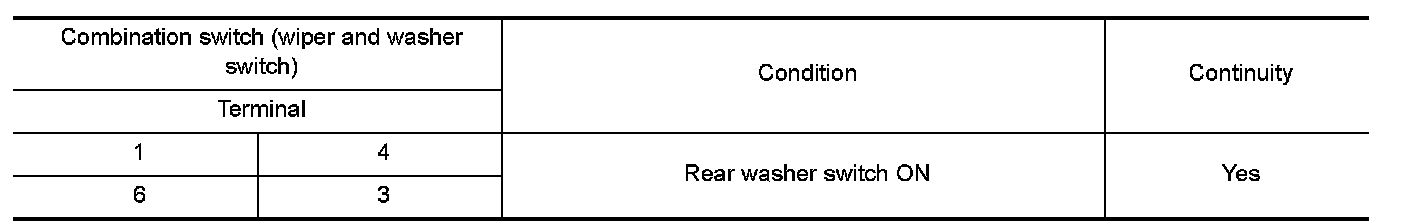

1.Check continuity between the combination switch (wiper and washer switch) terminals.
Revision: March 20122013 Infiniti JX















Is the inspection result normal?
YES- Wiper and washer switch is normal.
NO- Replace combination switch (wiper and washer switch). Refer to "Removal and Installation" Service and Repair.
