Infiniti
>>
1990
>>
M30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Time Control System
Time Control System

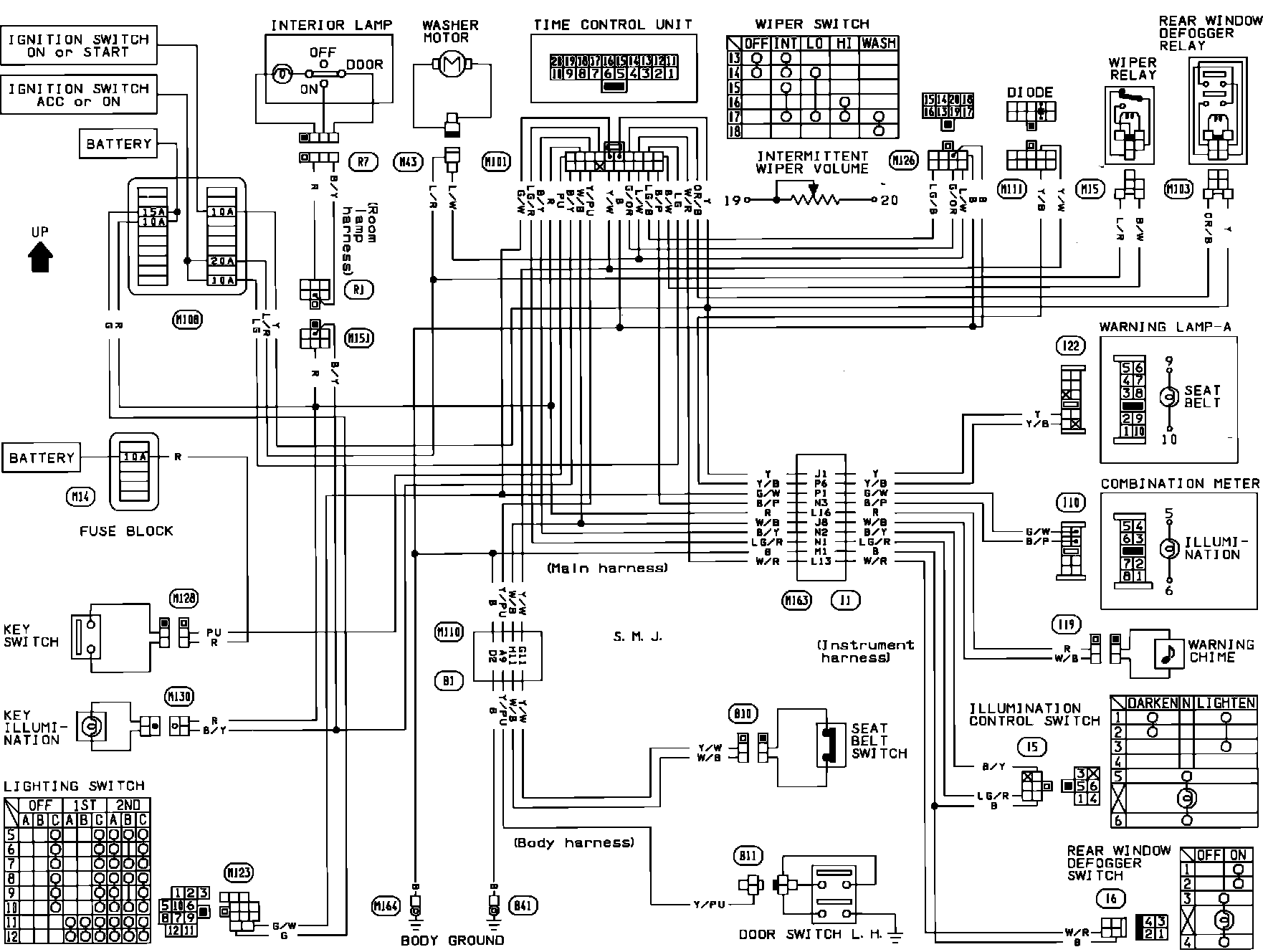

Time Control System:
