Low Idle

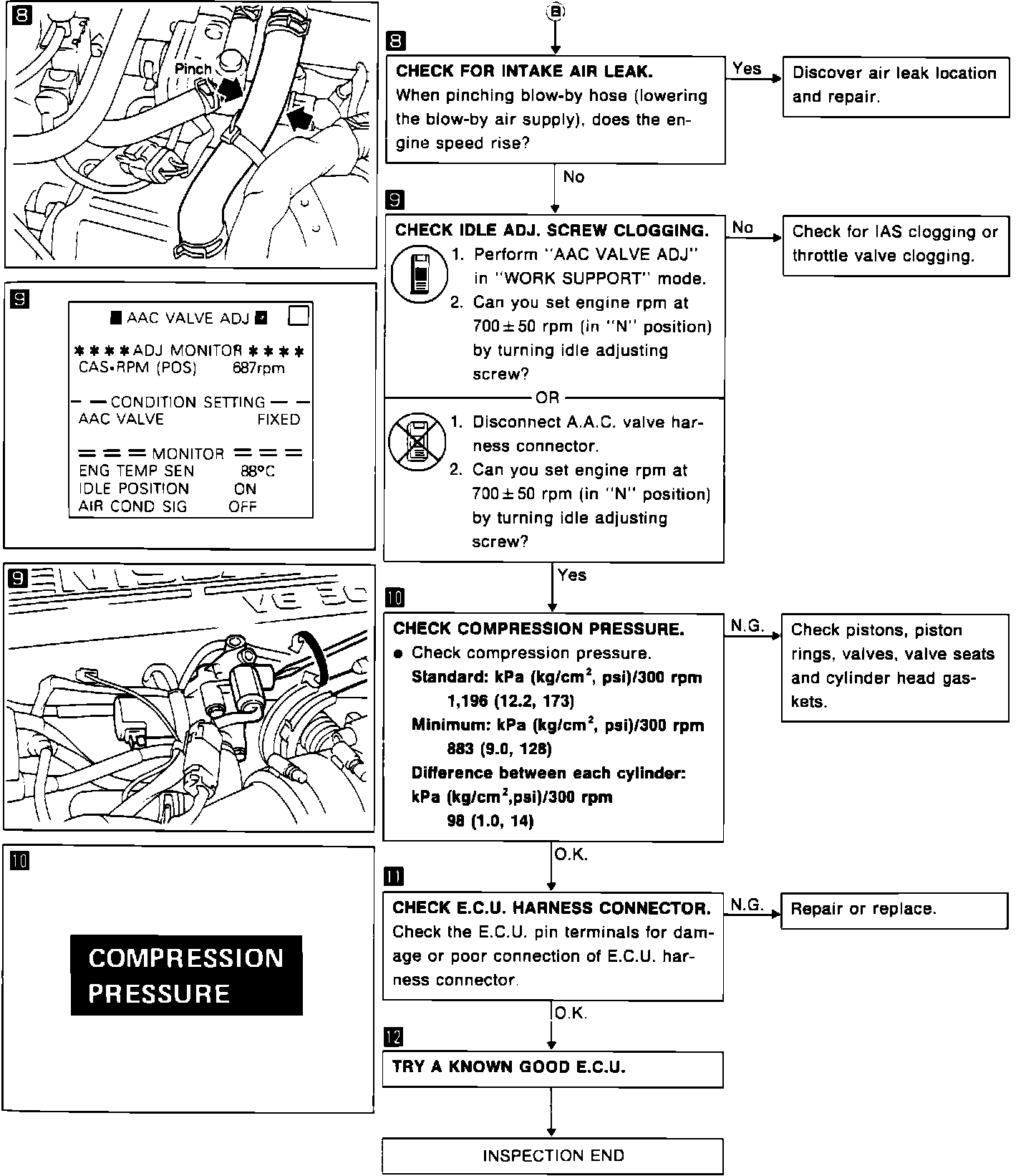

Fig. 116 Symptom, Low Idle (Part 1 Of 3):



Fig. 116 Symptom, Low Idle (Part 2 Of 3):



Fig. 116 Symptom, Low Idle (Part 3 Of 3):
