Charging System: Description and Operation

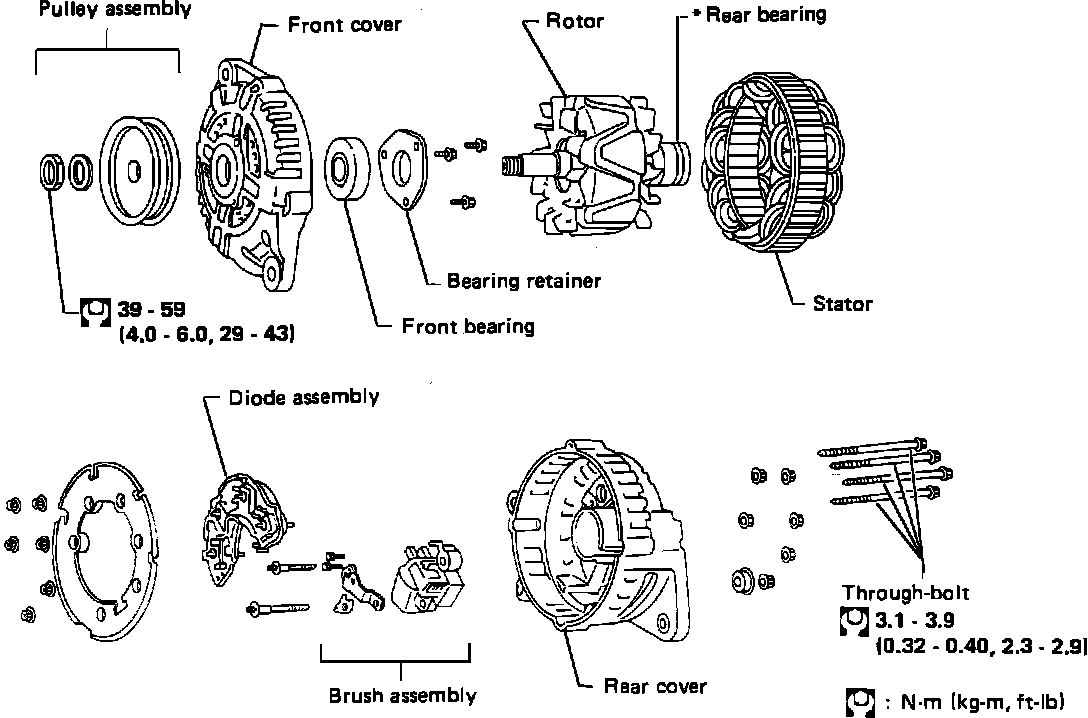

Fig. 3 Exploded View Of Hitachi Alternator. LR190-714:
Refer to
Fig. 3,
for exploded view of
alternator
.
