Procedure For Memorizing the Desired Positions

PROCEDURE FOR MEMORIZING THE DESIRED POSITIONS





The ADPCU can memorize 2 desired position patterns.

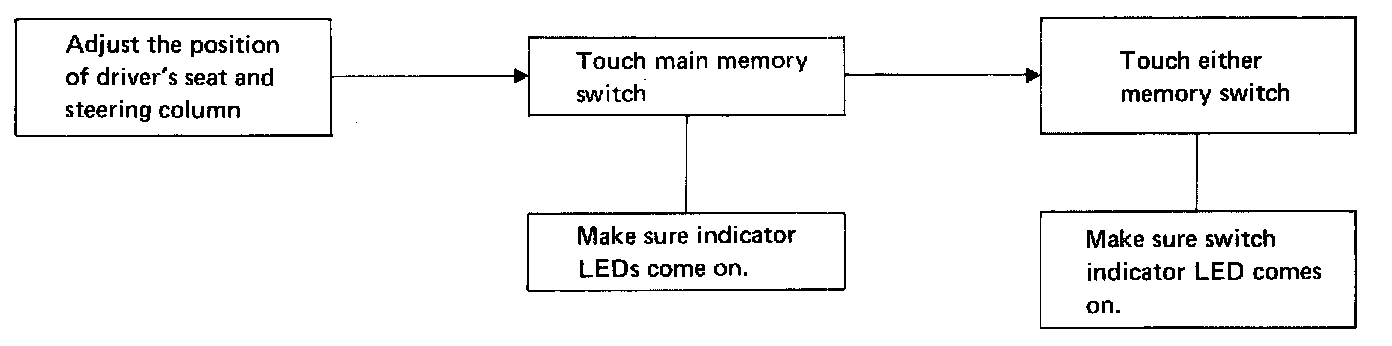

The procedure for memorizing these is as follows:

1. Move the driver's seat and the steering column to the proper positions using the position switches.

2. With the ignition switch "ON", touch the main memory switch.
- When the memory has stored the position in the ADPCU, the indicator L.E.D. comes on for approximately 5 sec. after the main memory switch is touched.
- If the memory has not stored the position in the ADPCU, the indicator L.E.D. comes on for approximately 0.5 sec. after the main memory switch is touched.

3. Touch the memory switch you wish to use within 5 sec. after touching the set switch.
- Make sure the indicator L.E.D. for the memory switch which you use comes on for approximately 5 sec. after the switch is touched.
