Body and Frame: Description and Operation











Clip and Fastener

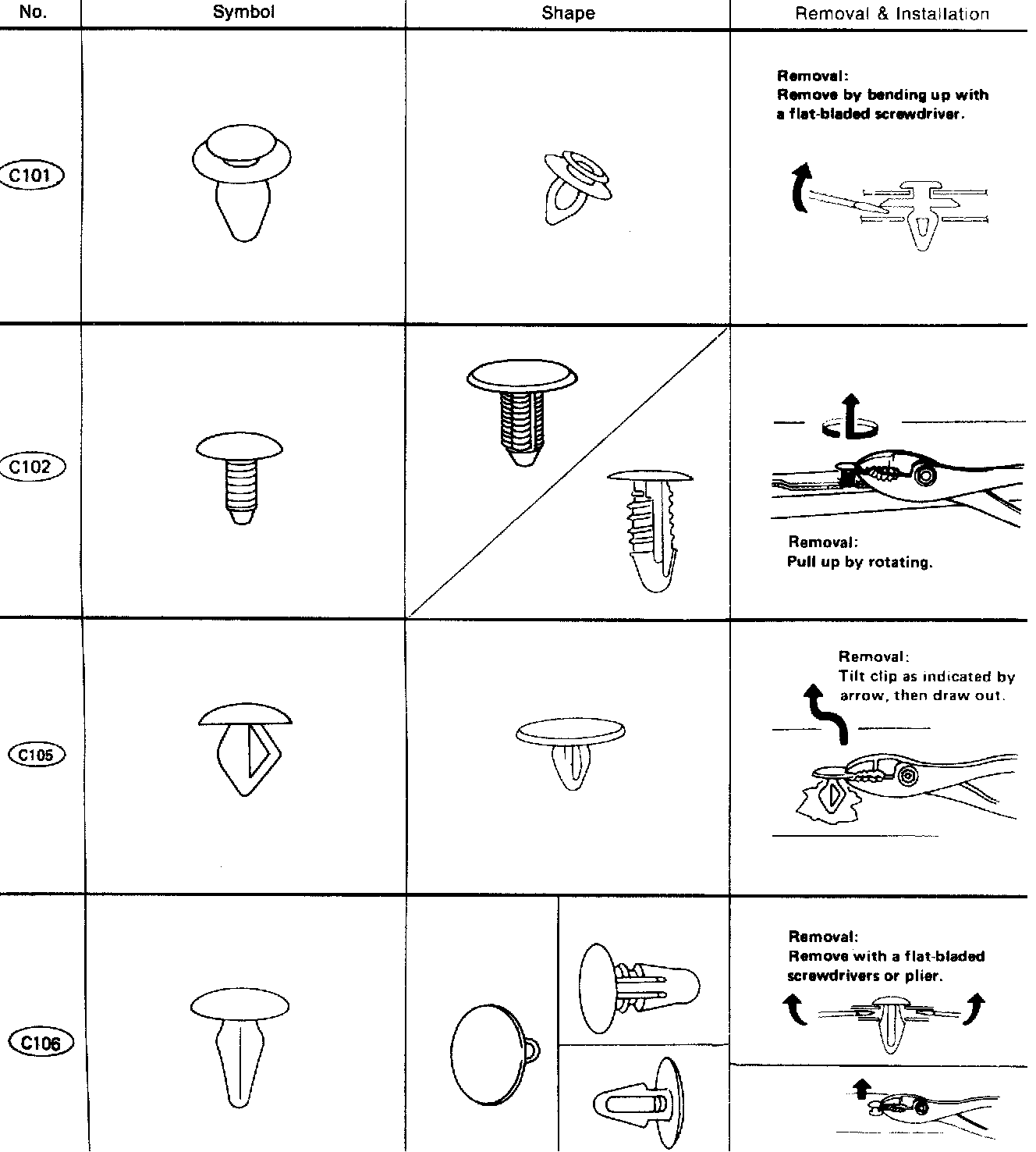

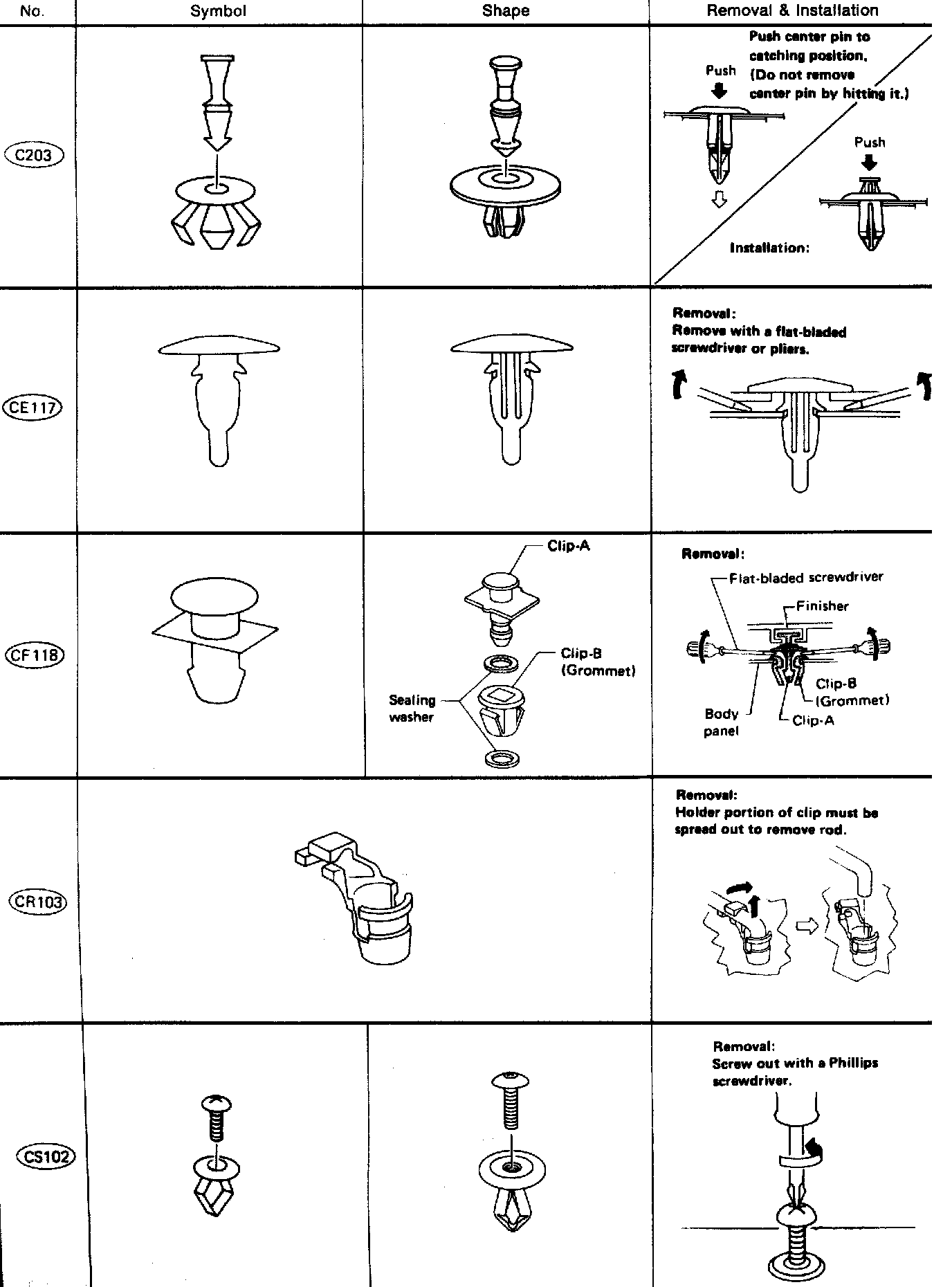

^ Clips and fasteners in body and frame section correspond to the following numbers and symbols.
^ Replace any clips and/or fasteners which are damaged during removal or installation.
