Dashboard / Instrument Panel: Service and Repair

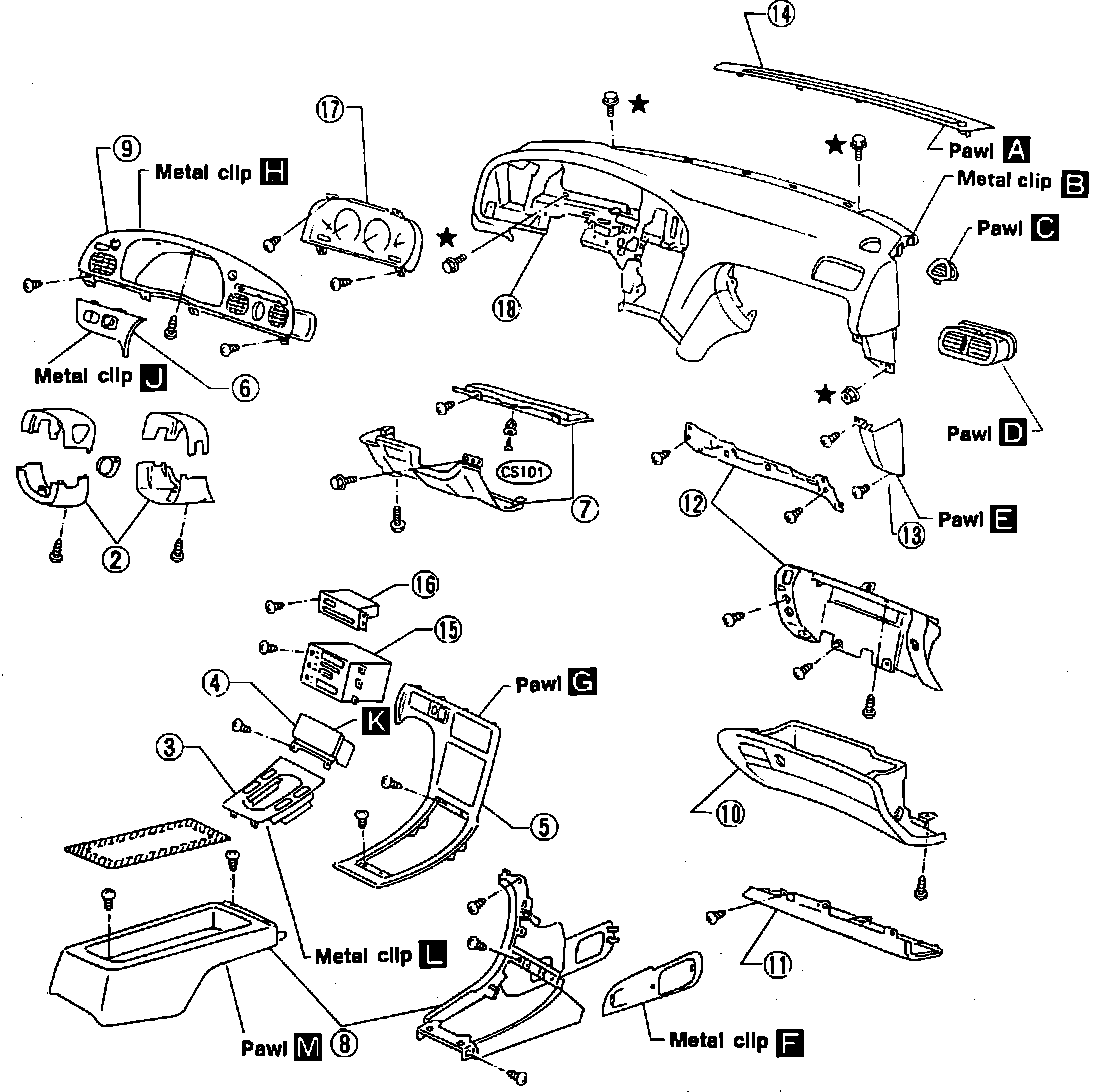

Fig. 2 Exploded View Of Instrument Panel.:

1. Disarm airbag system as described, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair.
2. Remove steering column cover, Fig. 2.
3. On models equipped with automatic transmission, remove console trim panel.
4. On all models, remove ashtray.
5. Remove cluster lid C and D.
6. Remove left side lower instrument panel cover.
7. Remove front and rear console assembly.
8. Remove cluster lid A and glove box.
9. Remove right side lower instrument panel cover.
10. Remove glove box cover and top instrument panel bezel.
11. Remove defroster grille and radio.
12. Remove heater control.
13. Remove combination meter assembly.
14. Remove instrument panel assembly and pads.
15. Reverse procedure to install.
