Description of On-Board Diagnostics

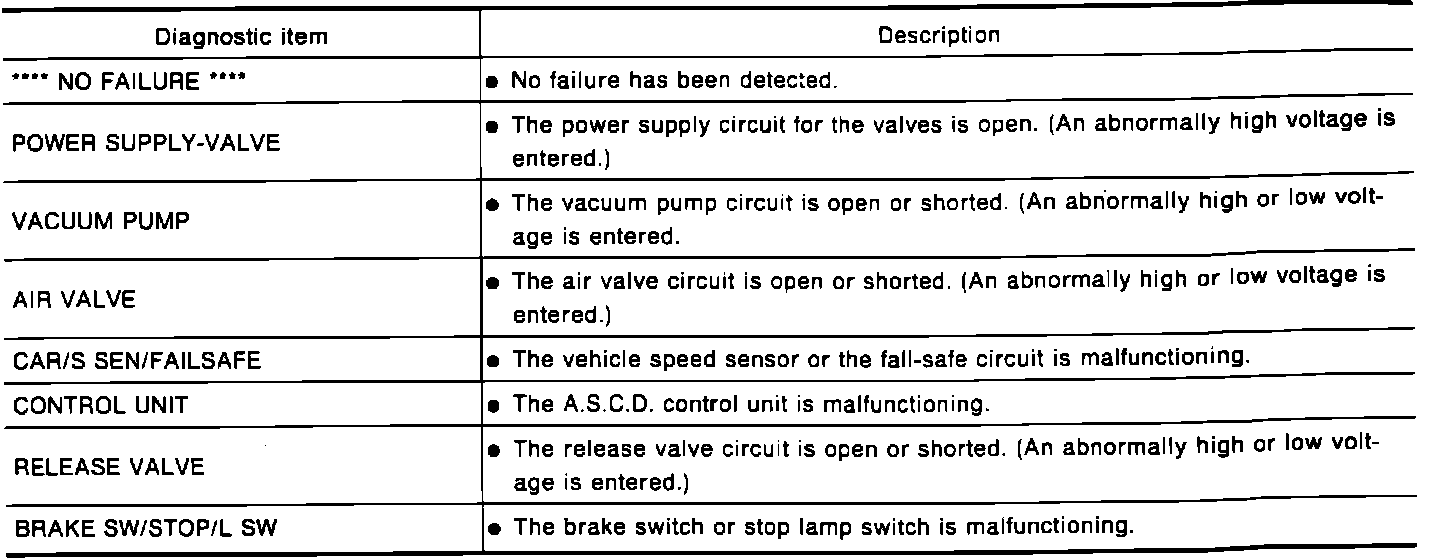

Fig. 41 CONSULT Self Diagnostic Results.:

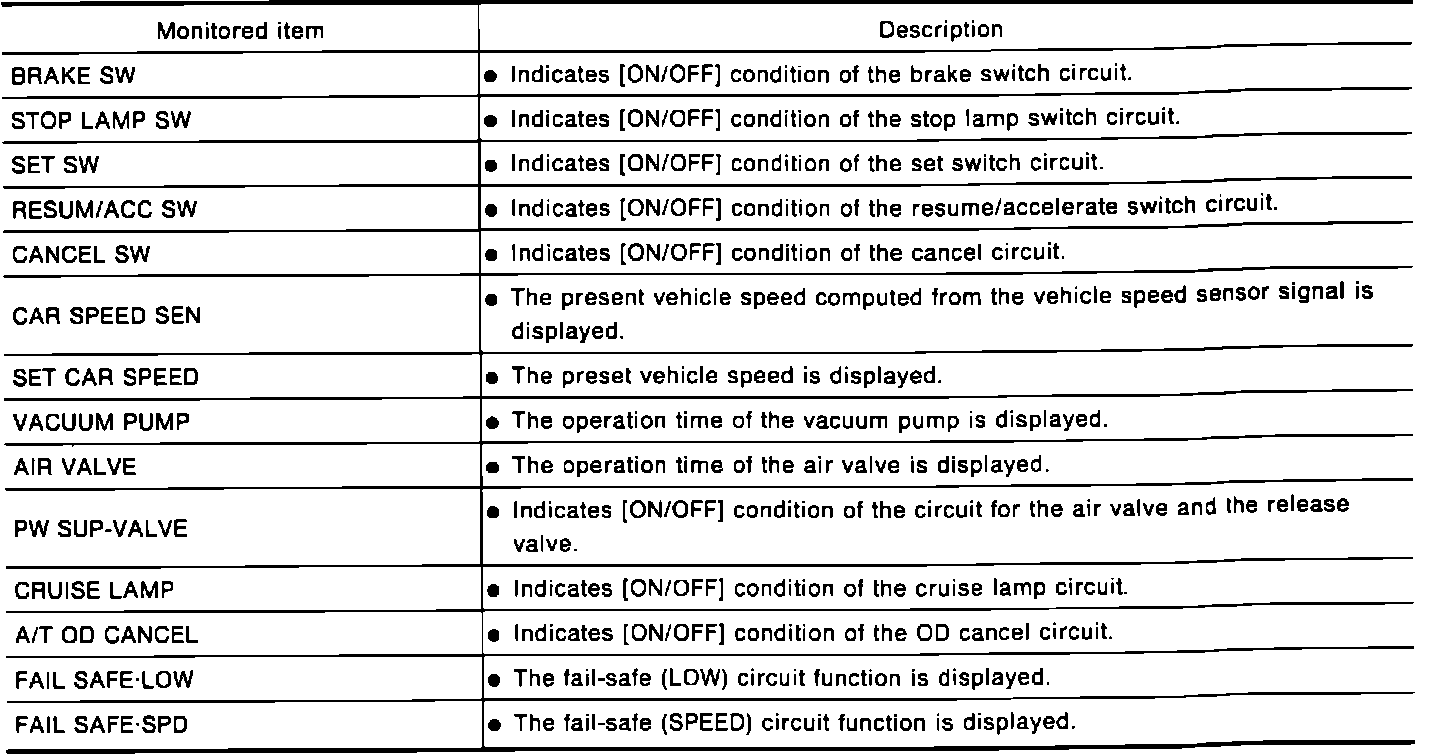

Fig. 42 CONSULT Data Results.:

Two methods can be used to test the speed control on the Q45. One method is to use the Nissan CONSULT tool, the other is to use a volt ohmmeter.

With CONSULT Tool

1. With ignition switch off, connect CONSULT tool to diagnostic connector.
2. Turn ignition switch On, then A.S.C.D. main switch.
3. Touch START, on CONSULT display.
4. Touch A.S.C.D., then SELF-DIAG RESULTS. For diagnostic results shown on display, refer to Fig. 41
5. Touch DATA MONITOR, then touch START.
6. For data results shown on display, refer to Fig. 42.
7. For further details, refer to the CONSULT owners manual.

Less CONSULT Tool

When diagnosing and testing speed controls, refer to DIAGNOSTIC CHARTS for diagnostic flow charts, and SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS for wiring diagram circuits.
