Home >> Infiniti >> 1991 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Connectors >> Door Harness and Connectors >> Front L.H. Door

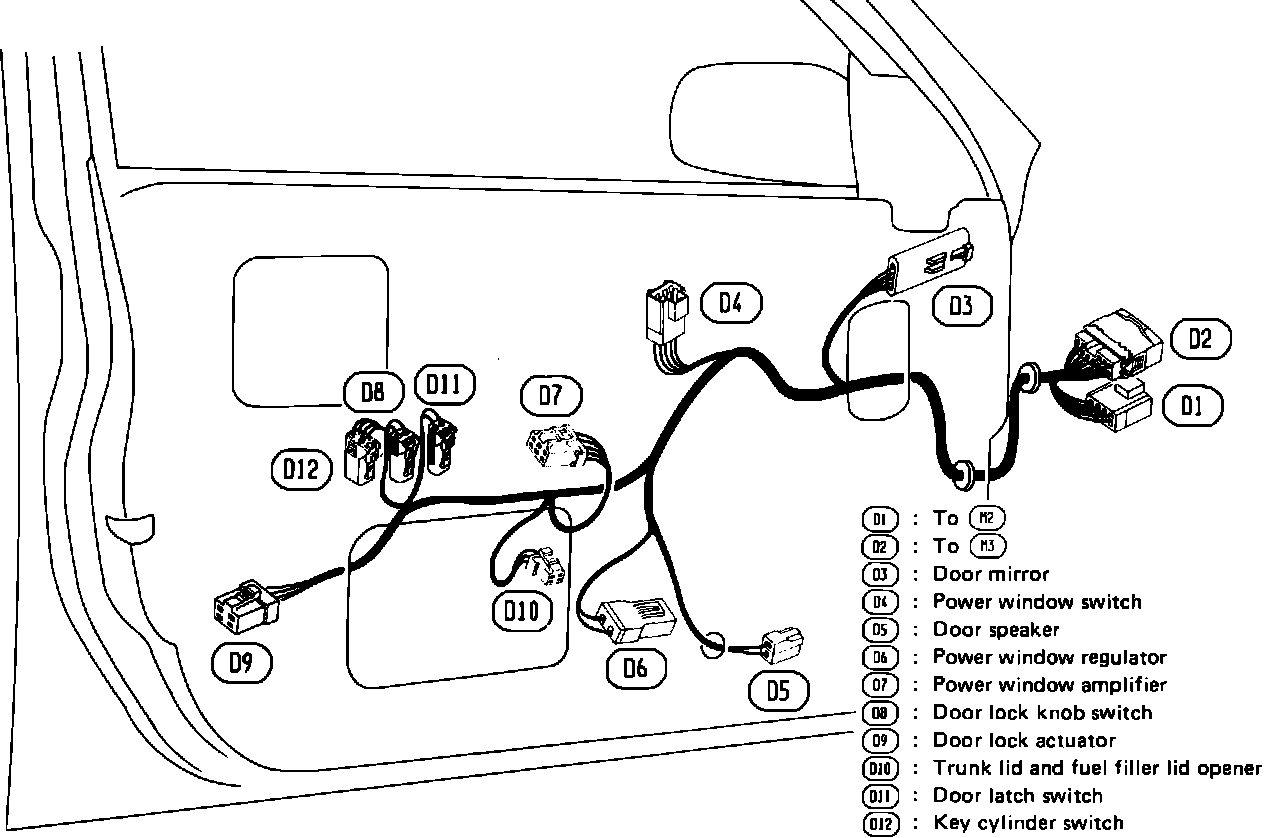

Front L.H. Door

Front L.H. Door:
