Compressor HVAC

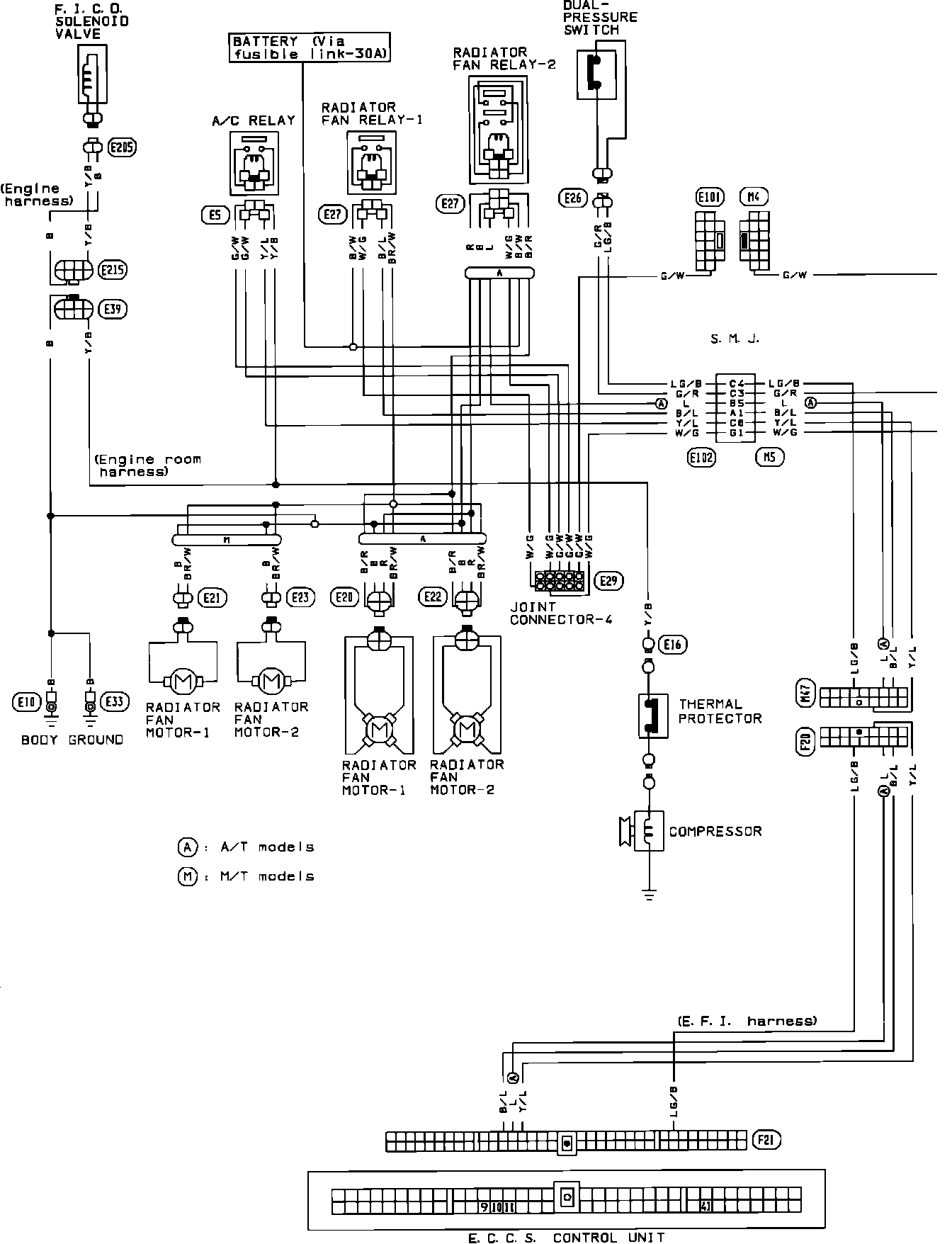

Air Conditioning, Heater And Cooling Fan (Engine):



Air Conditioning, Heater And Cooling Fan (Engine):
