Air Injection Vacuum Control Solenoid Valve

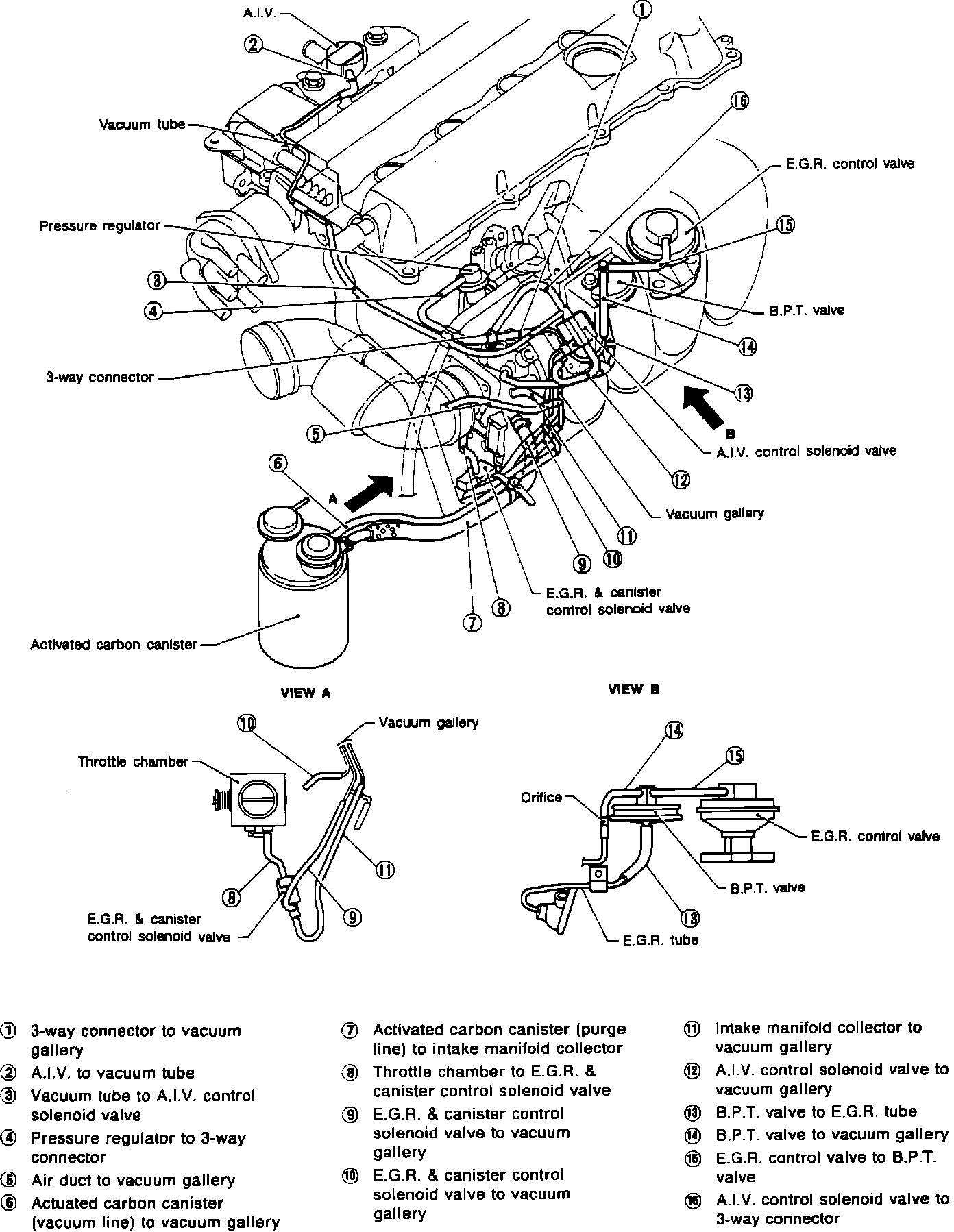

Fig. 3 Vacuum Hose Routing & Engine Compartment Reference Diagram:
