Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1991
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

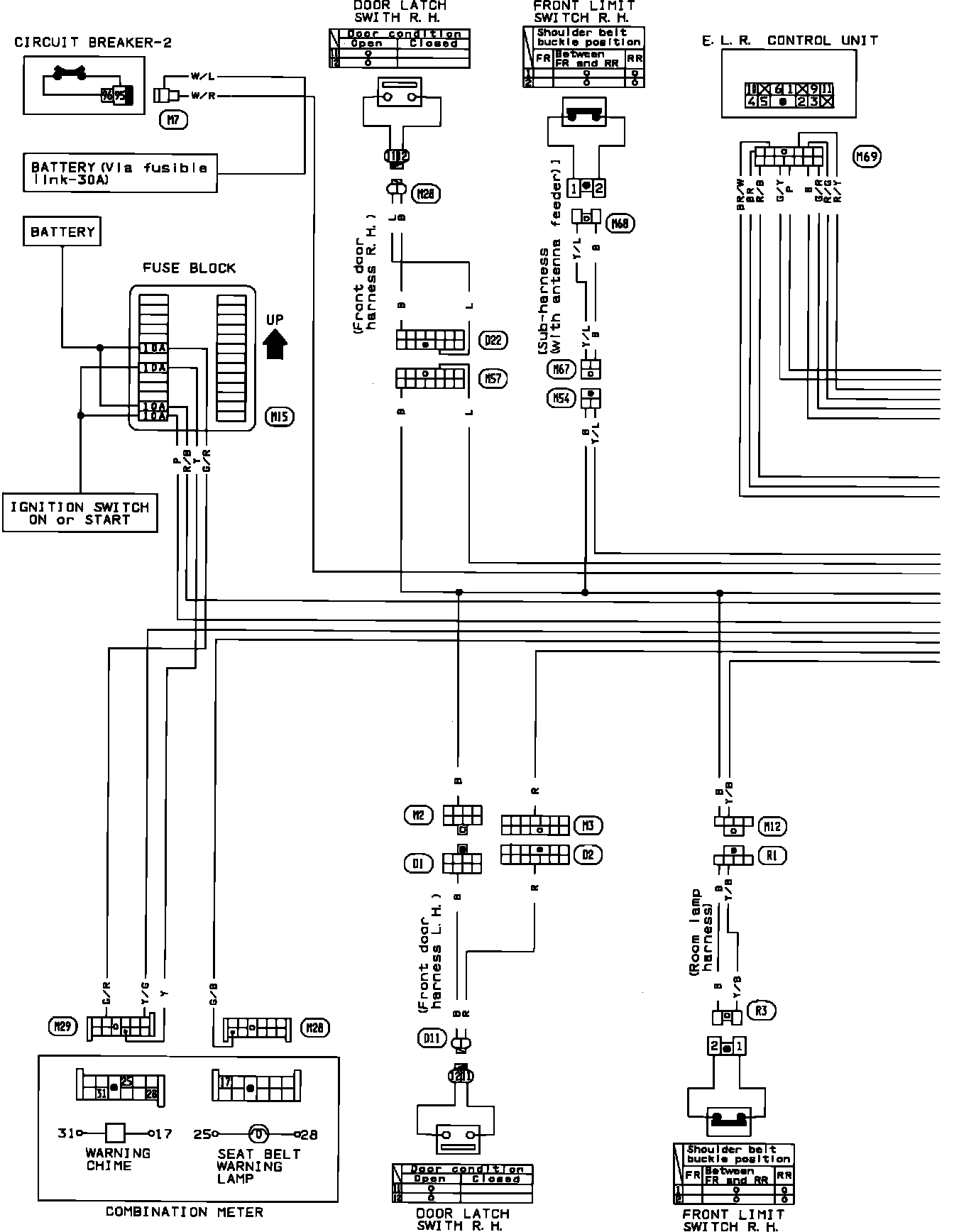

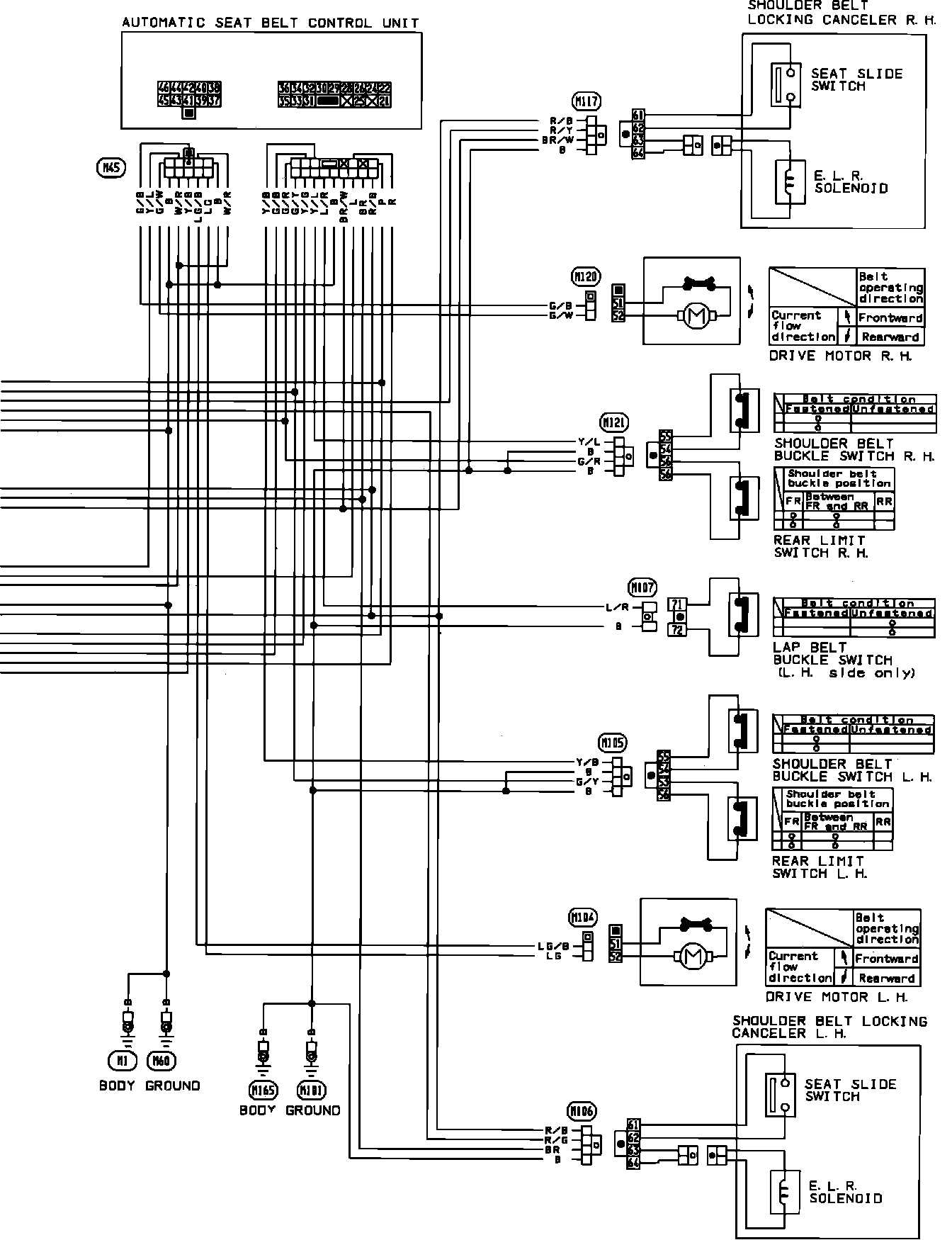

Motorized Seat Belts:
Motorized Seat Belts:
