System Specifications

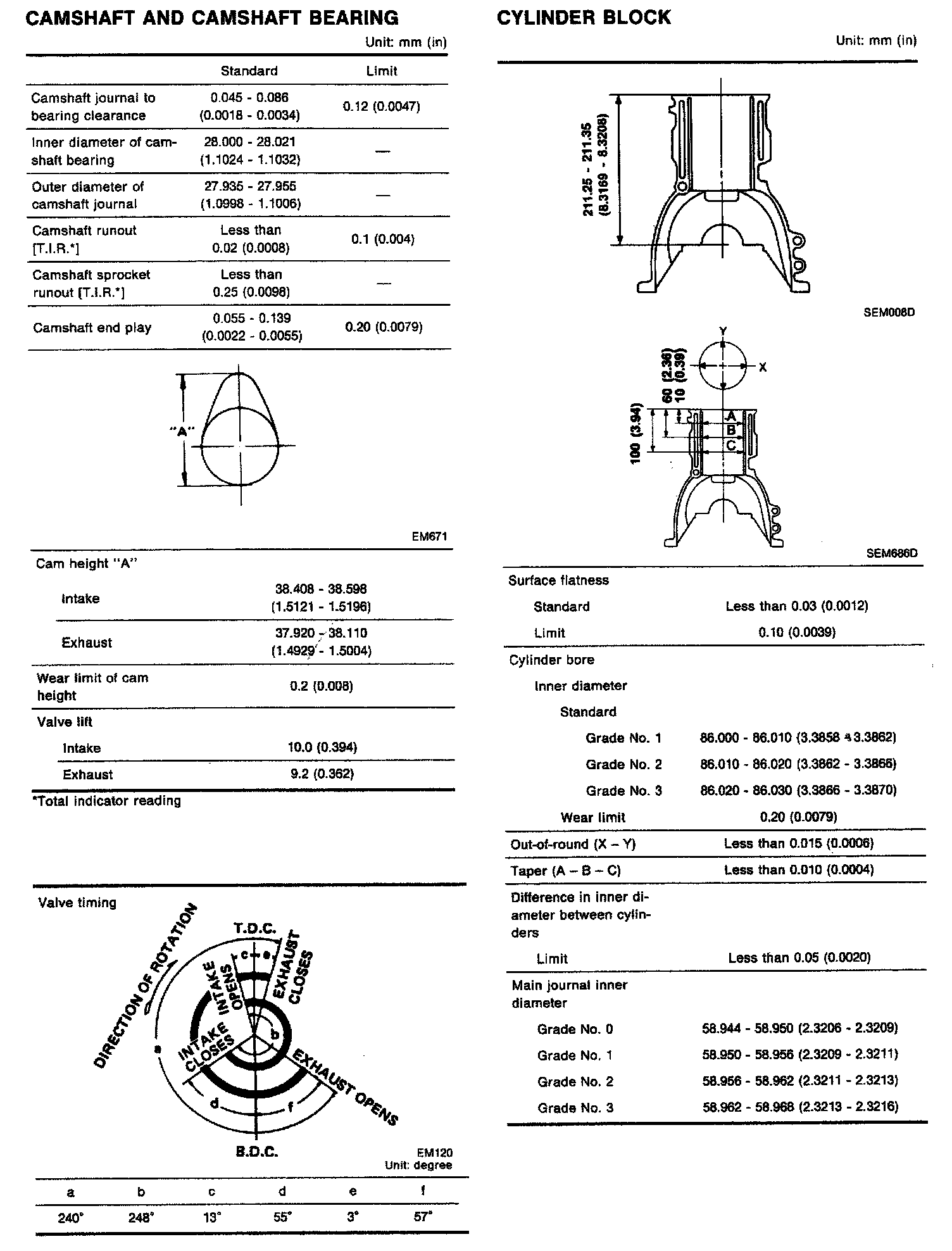

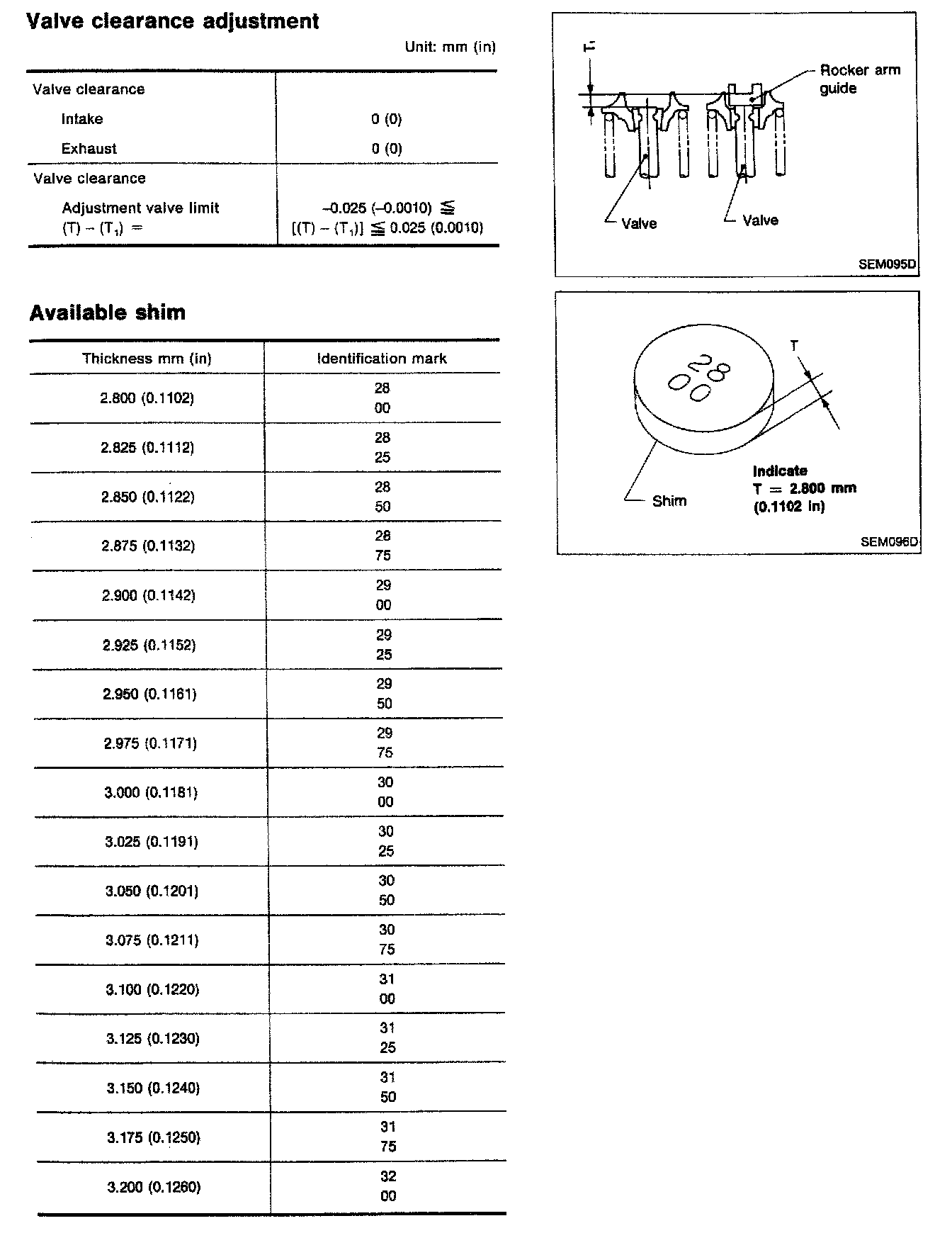

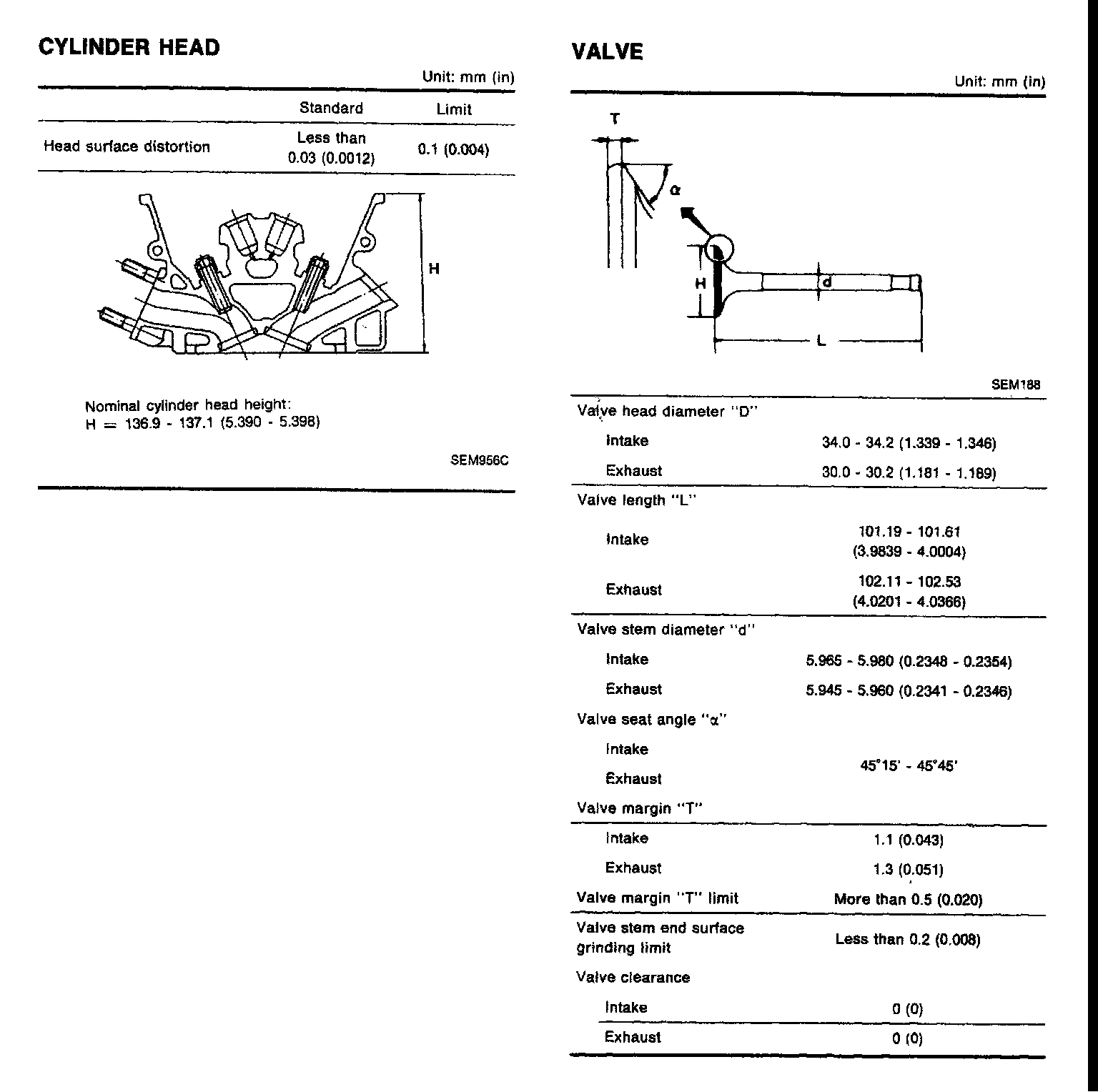

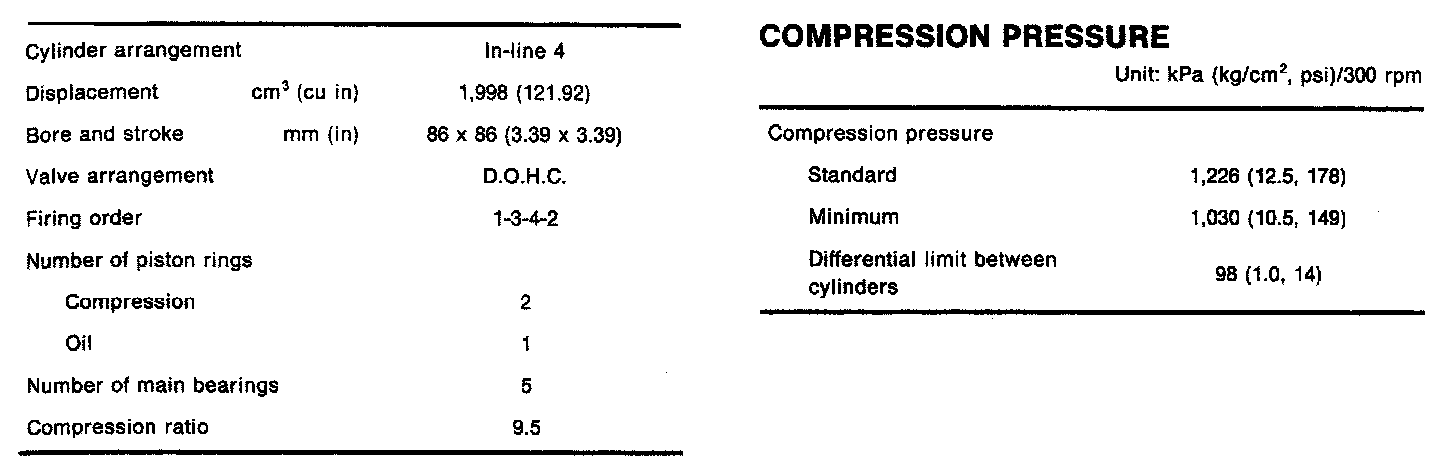

ENGINE SPECIFICATIONS

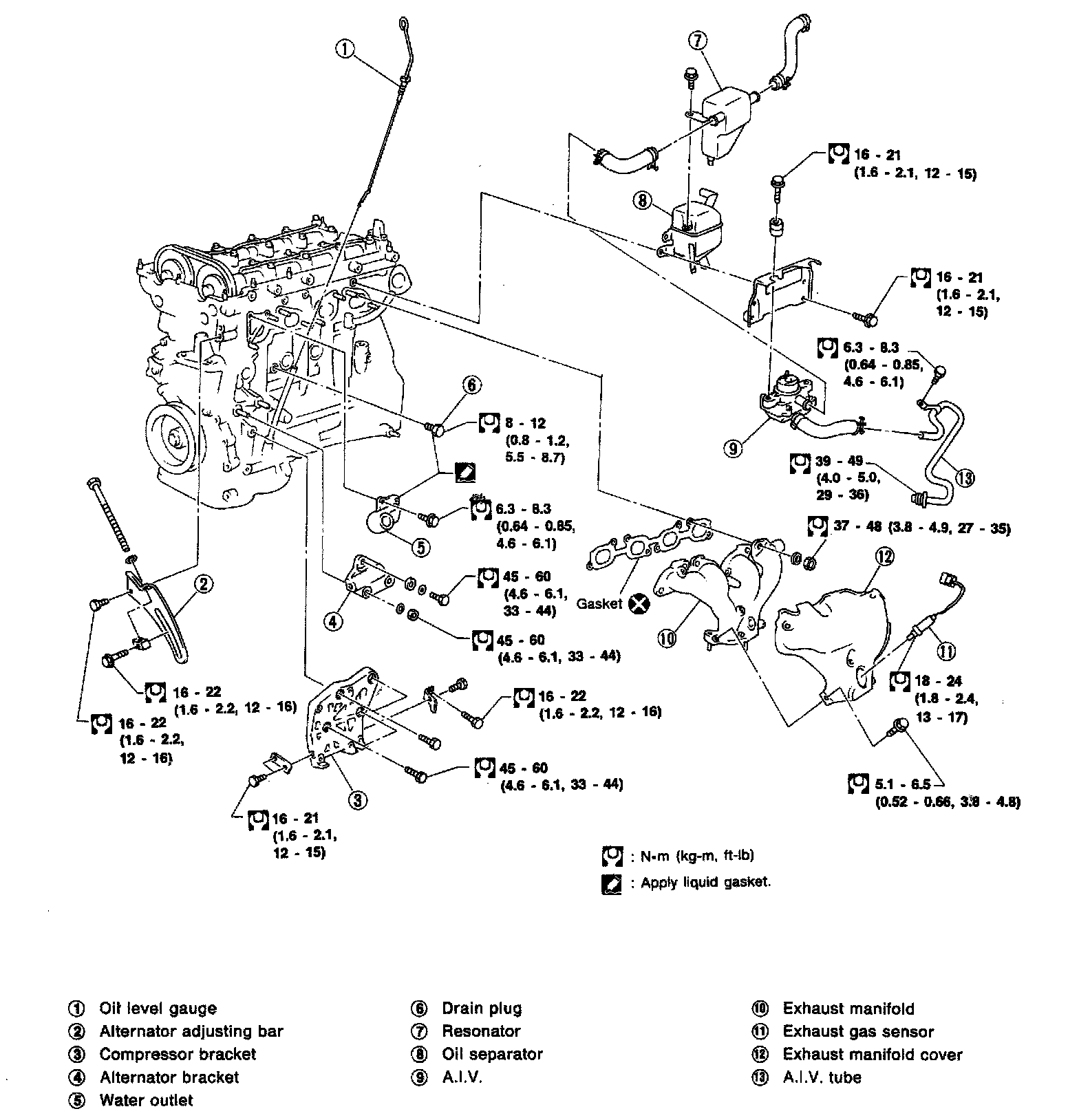

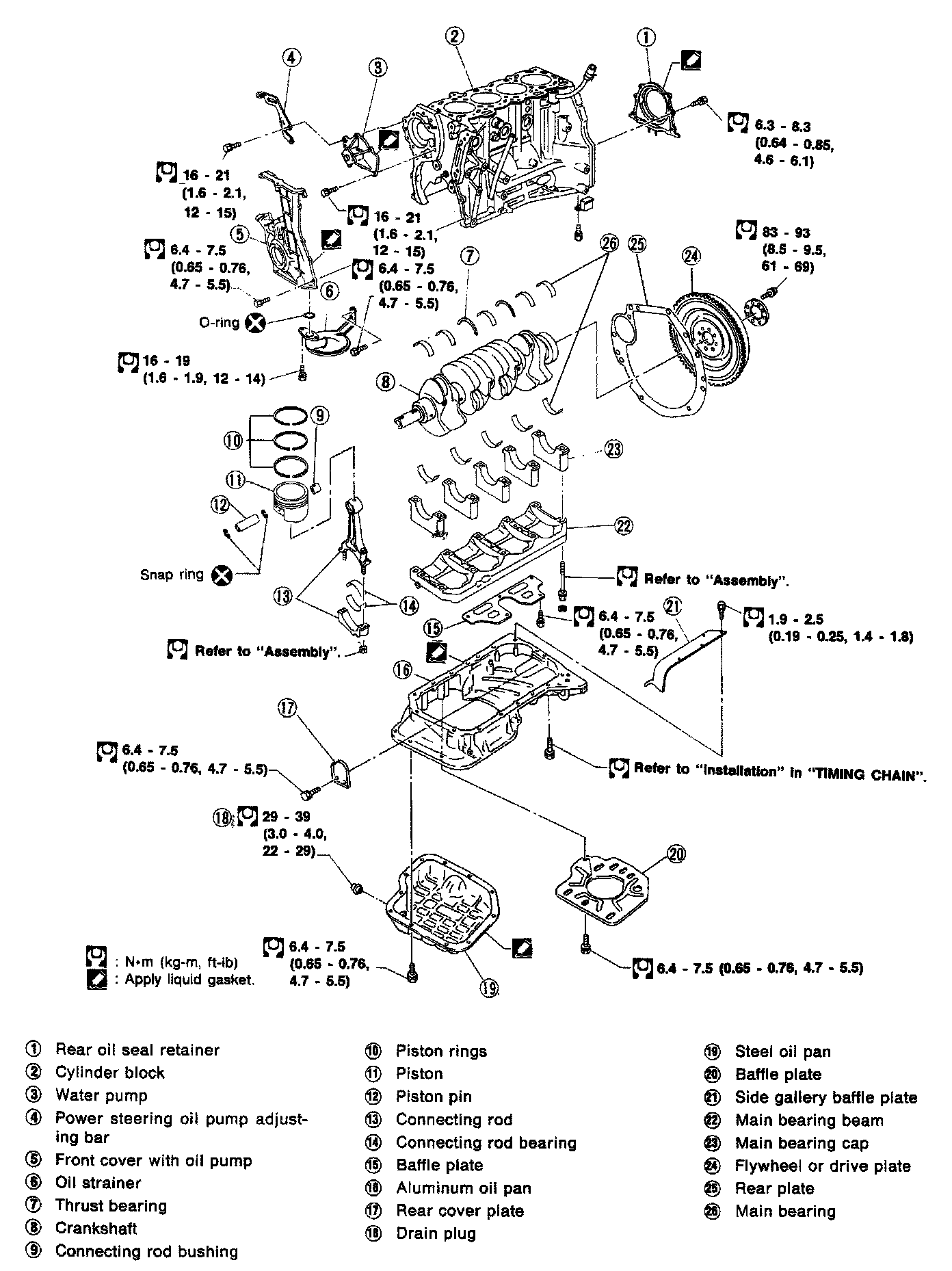

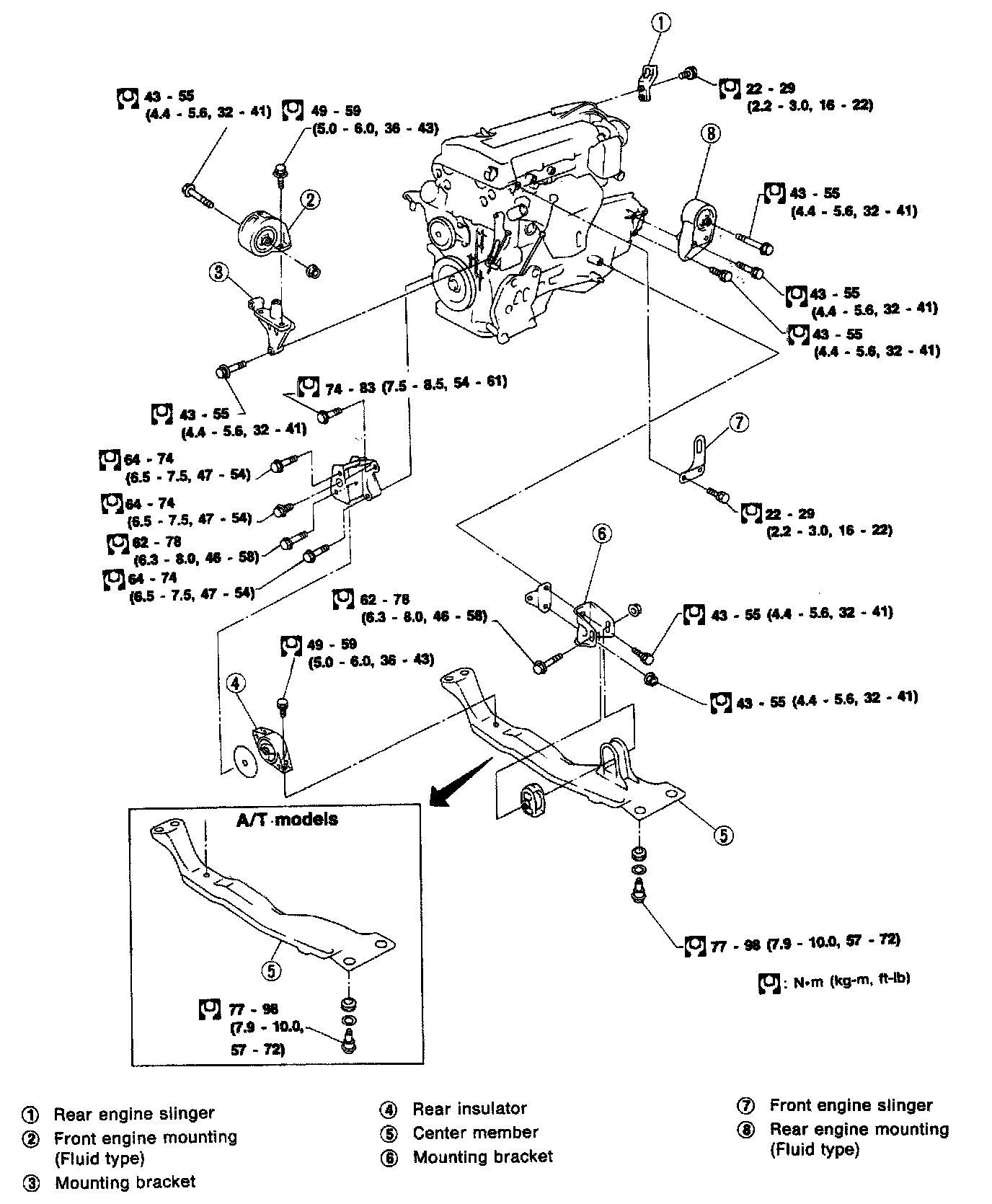

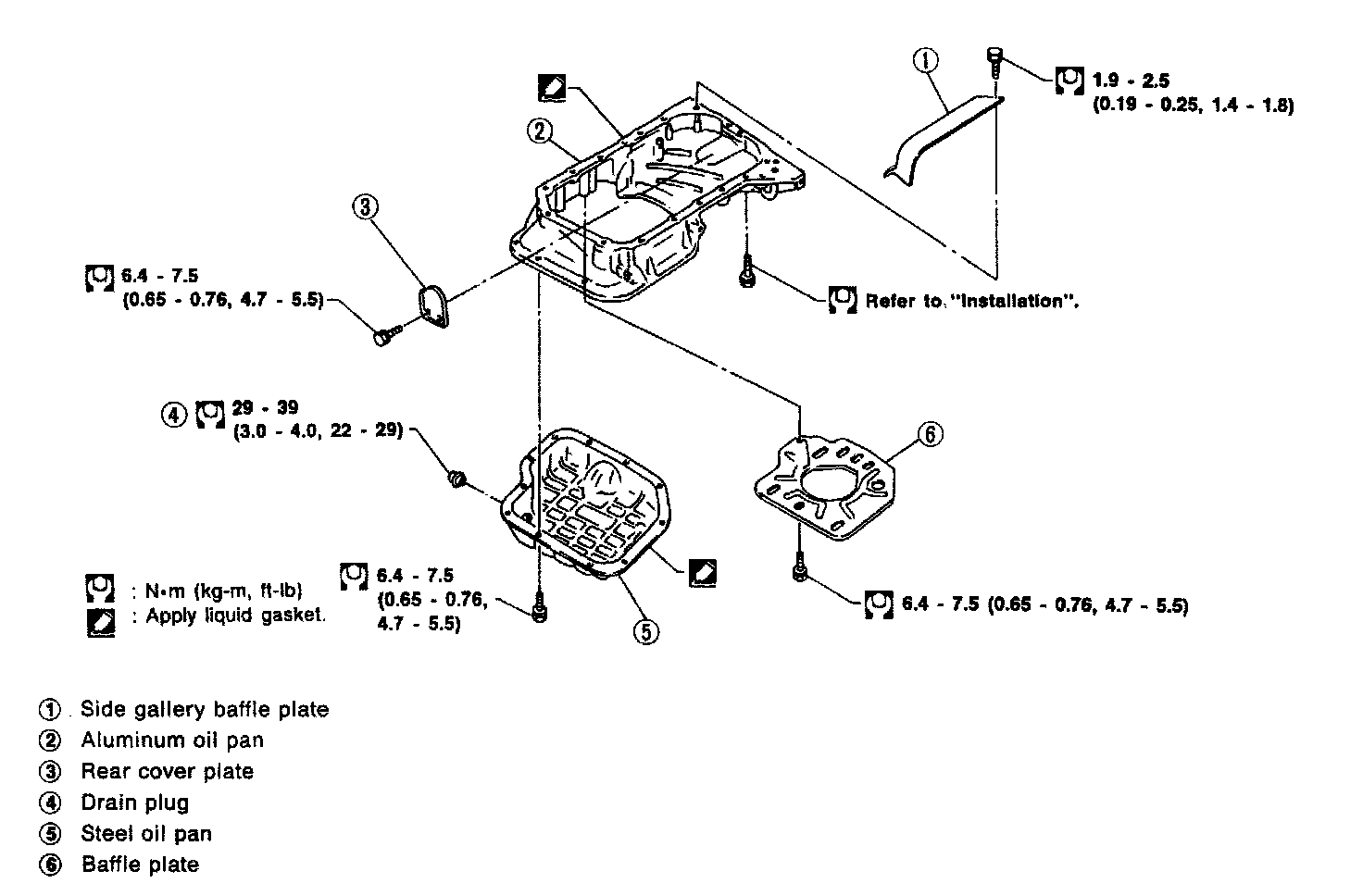

TIGHTENING SPECIFICATIONS

































CAMSHAFT TIGHTENING SEQUENCE





CYLINDER HEAD TIGHTENING SEQUENCE

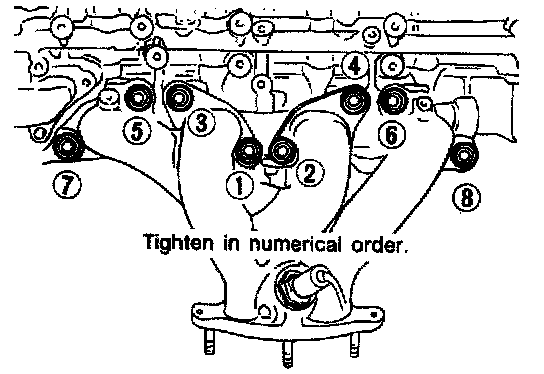

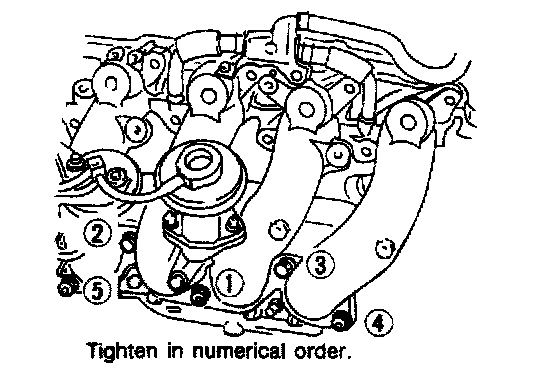

EXHAUST MANIFOLD TIGHTENING SEQUENCE

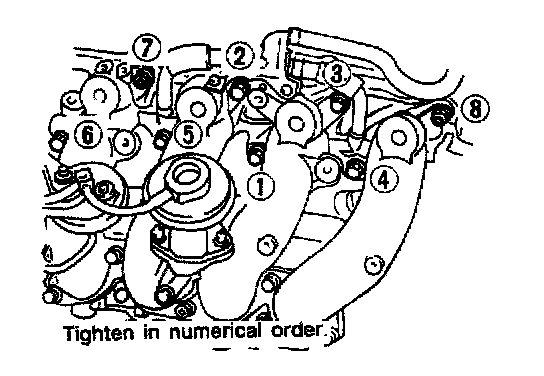

INTAKE MANIFOLD TIGHTENING SEQUENCE









MAIN BEARING TIGHTENING SEQUENCE





VALVE COVER TIGHTENING SEQUENCE
