A.S.C.D. Cancel and Stop Lamp Switch

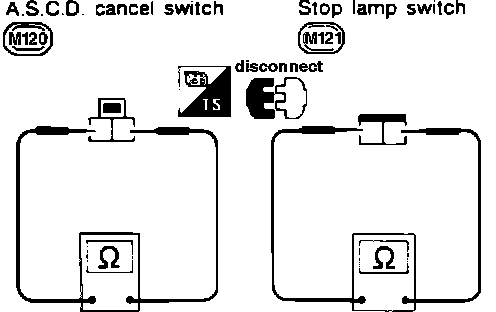

Fig. 82 A.S.C.D. Brake & Stop Lamp Switch Terminal Connections.:

For location of speed control components, refer to Cruise Control/Locations.

1. Connect ohmmeter to terminals as shown in Fig. 82.
2. With brake pedal depressed, no continuity should exist at A.S.C.D. cancel switch. Release pedal, continuity should then exist.
