Control Assembly: Locations

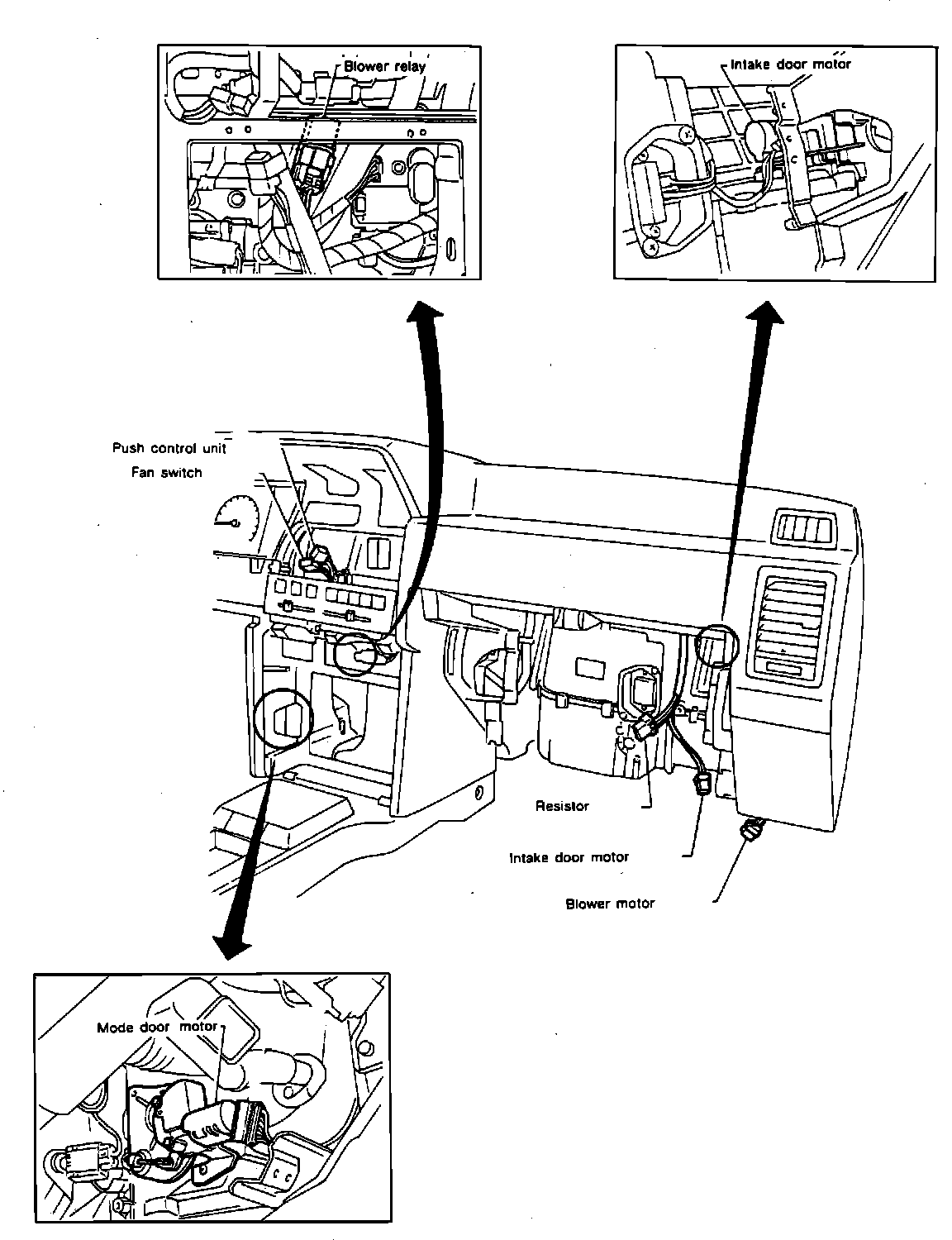

Air Conditioning Component Locations (Passenger Compartment).:

Behind Center Of I/P

Applicable to: Manual Air Conditioning
