ECM - Identification

Classification:
EF & EC 93-001

Section:
Engine Fuel

Reference:
TECHNICAL BULLETIN ITB93-025

Models:
Various

Date:
April 27, 1993

ELECTRONIC CONTROL MODULE IDENTIFICATION

APPLIED MODELS:

1991-93 G20
1993 J30
1990-92 M30
1990-93 Q45

SERVICE INFORMATION:

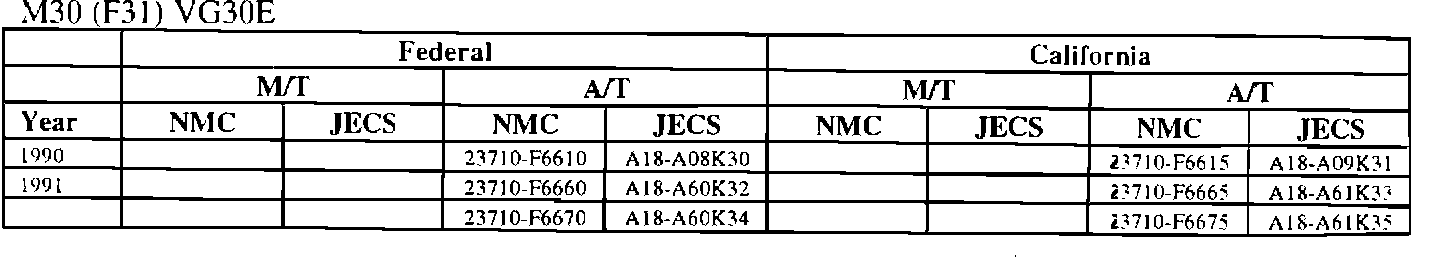

This bulletin contains a chart that lists the ECM Vendor serial number and cross-references to an Infiniti part number. This chart is intended to be used as a reference guide to determine that a vehicle has the correct ECM installed in it. The parts catalog along with the VIN number and Date of Manufacture should be used to determine the correct part number when ordering a new ECM.

An ECM with a part number with 2371M-*****RE is a replacement ECM and should have the same programming as the original. If a vehicle has an ECM with a part number containing "M" and "RE", disregard the "M" and "RE" when using this chart.

On any CONSULT compatible vehicle the ECM part number can be accessed through the CONSULT connector using CONSULT. All other vehicles have a decal that has the vendor part number on the ECM cover.
