Brake Switch (Cruise Control): Testing and Inspection

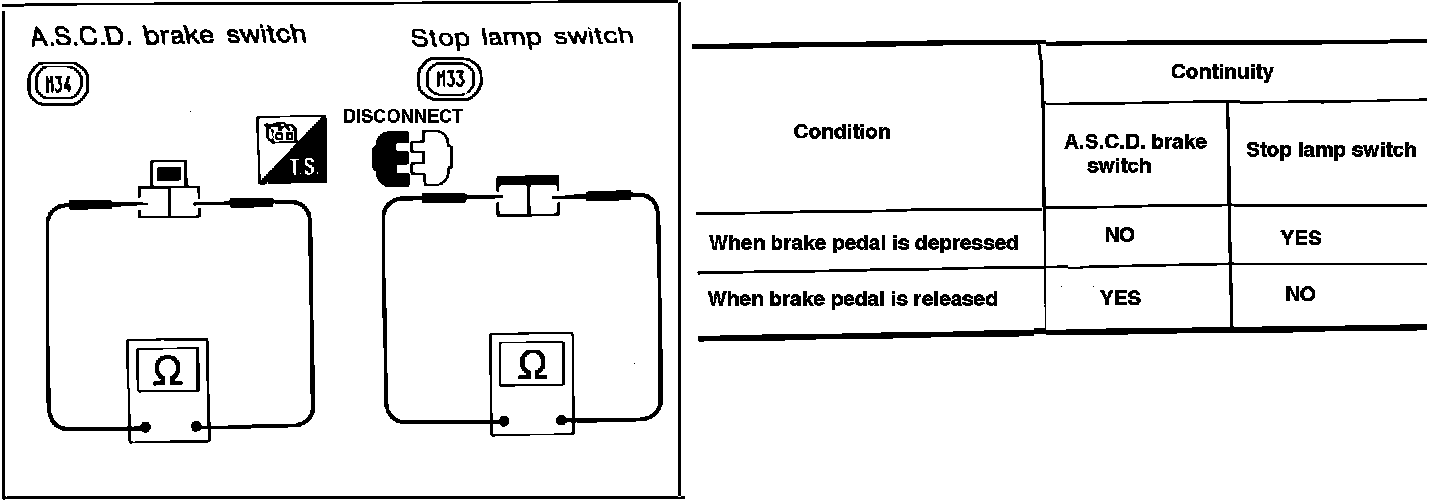

Fig. 83 A.S.C.D. Brake & Stop Lamp Switch Terminal Connections.:

For location of speed control components, refer to Cruise Control/Locations.

1. Connect ohmmeter to terminals as shown in Fig. 83.
2. With brake pedal depressed, no continuity should exist at A.S.C.D. cancel switch. Release pedal, continuity should then exist.
