Procedure 1, A.S.C.D. Control Cannot Be Set

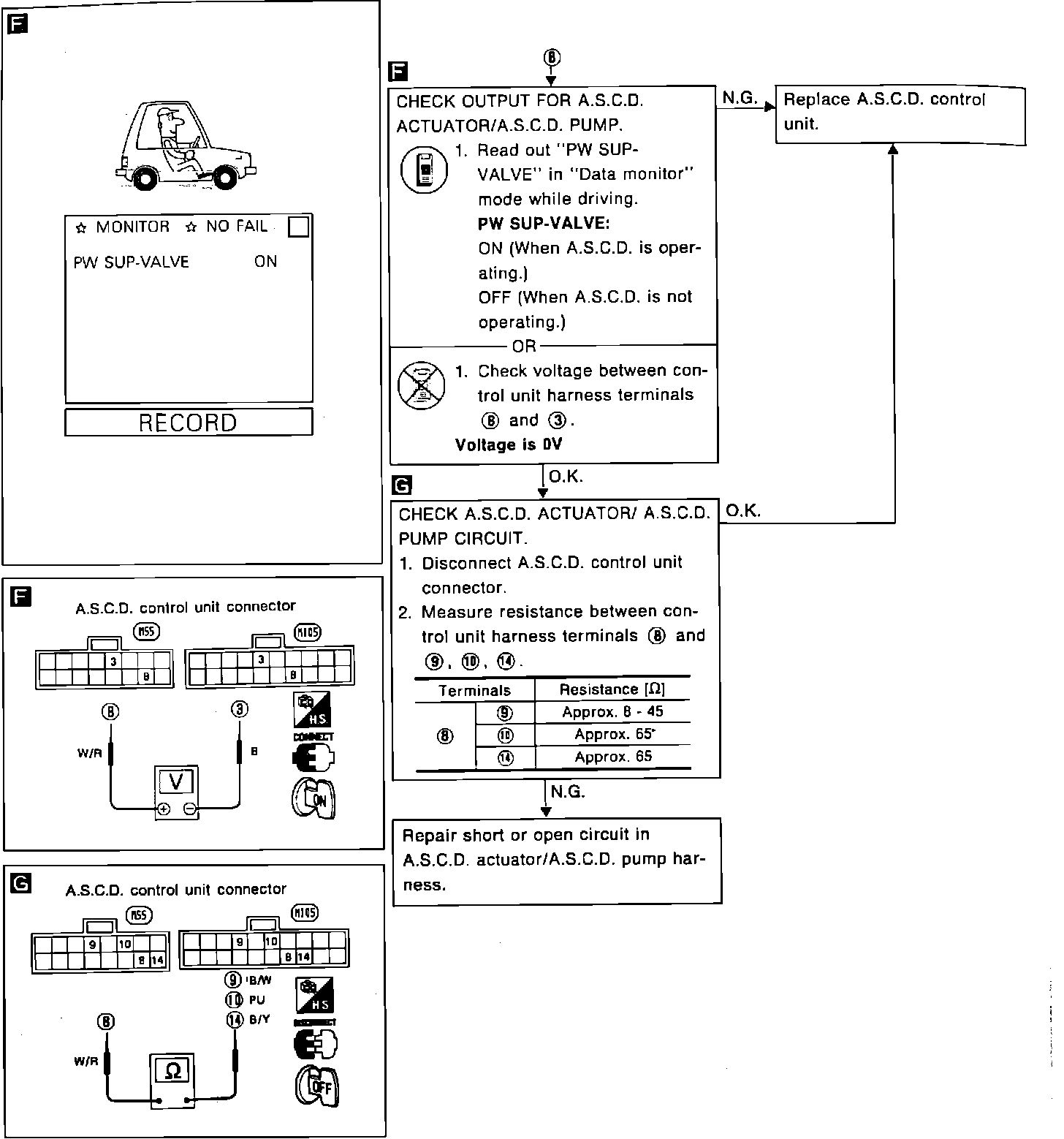

Fig. 59 Diagnostic Procedure 1, A.S.C.D.control Cannot Be Set (Part 1 Of 3).:



Fig. 59 Diagnostic Procedure 1, A.S.C.D. Control Cannot Be Set (Part 2 Of 3).:



Fig. 59 Diagnostic Procedure 1, A.S.C.D. Control Cannot Be Set (Part 3 Of 3).:
