Infiniti
>>
1991
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>

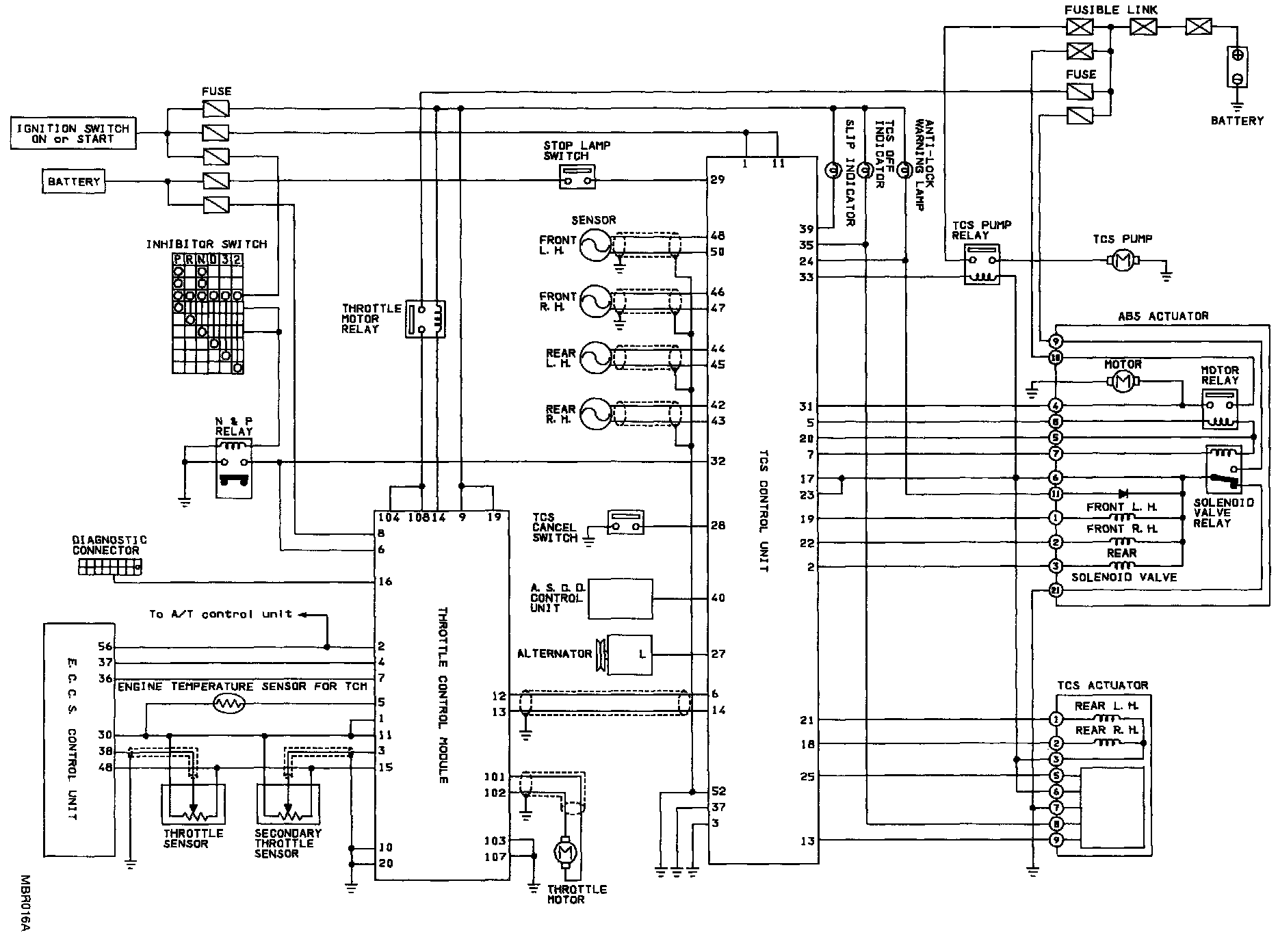

Circuit Diagram
Circuit Diagram
