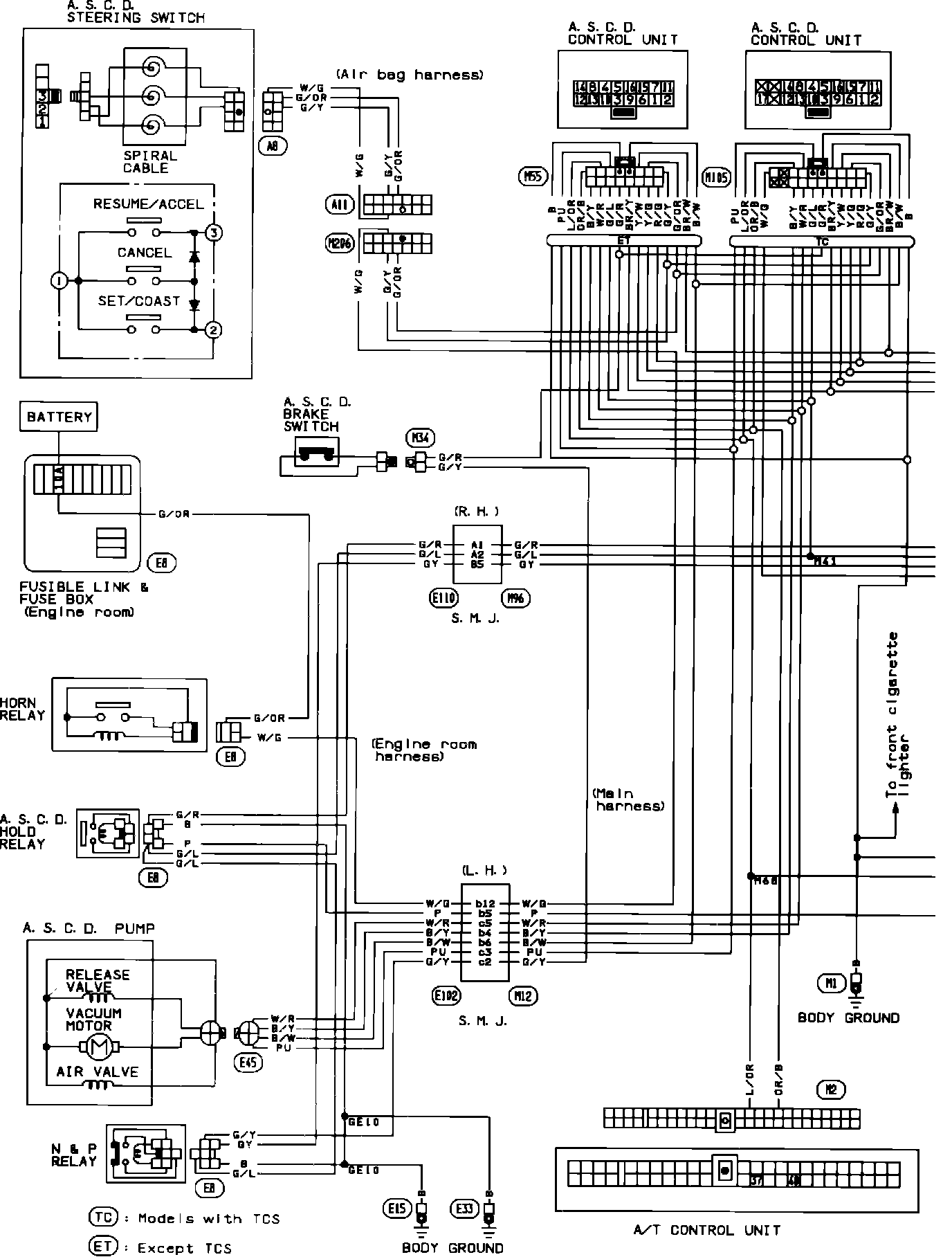

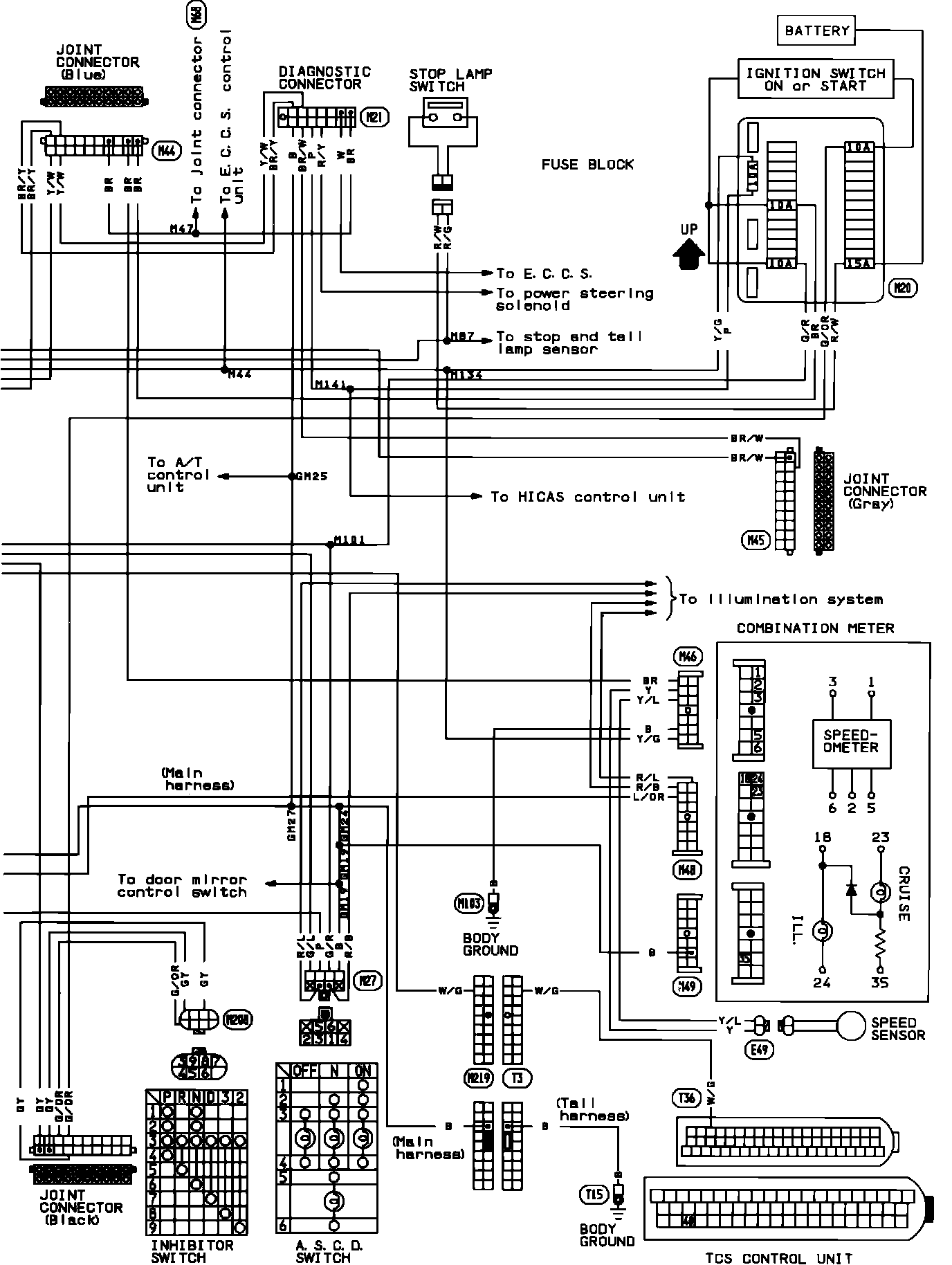

Automatic Speed Control Device Wiring Circuit
Automatic Speed Control Device Wiring Circuit
Cruise Control:
Cruise Control:
