Instrument Panel, Gauges and Warning Indicators
>>
Diagnostic Information Display
Diagnostic Information Display

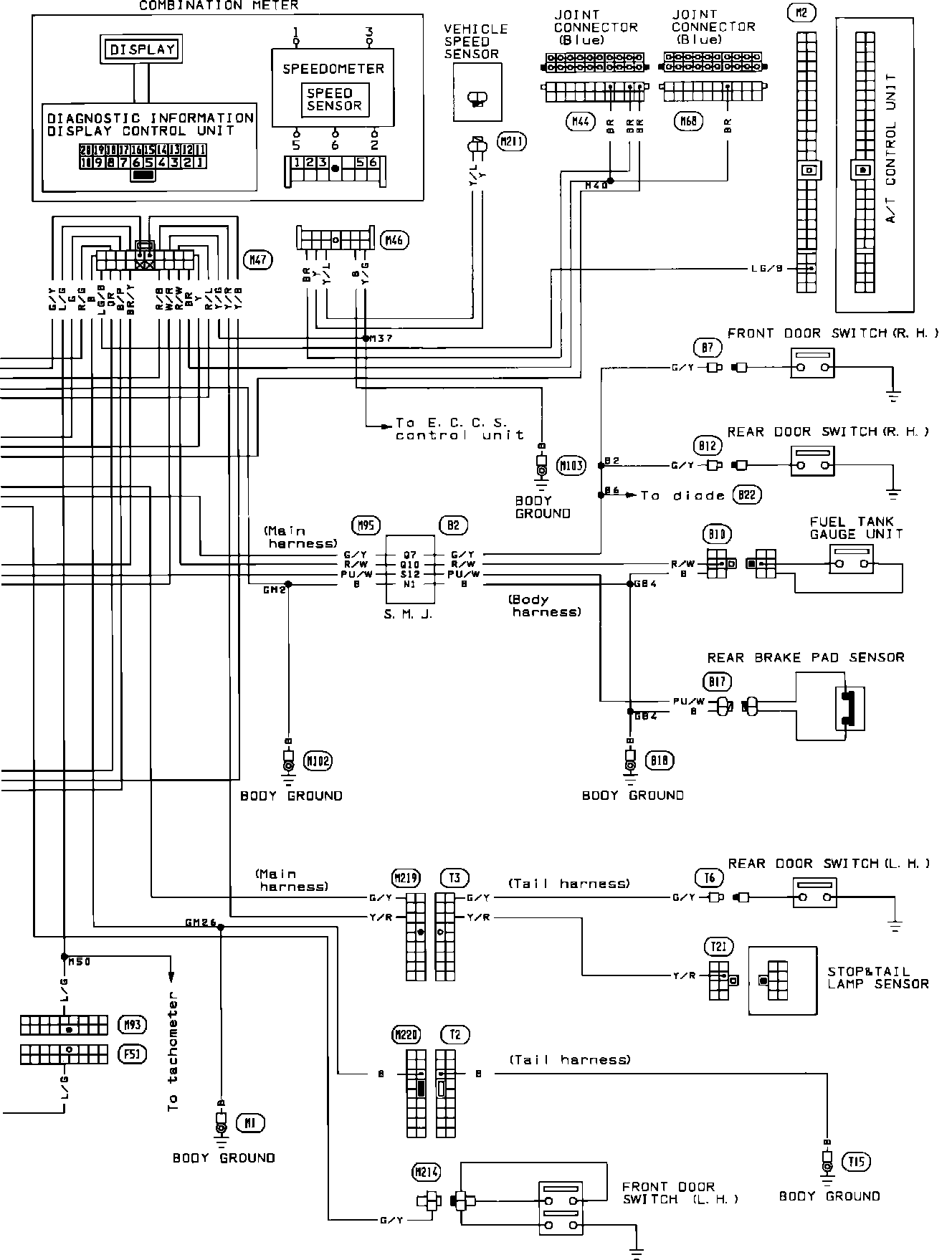

Diagnostic Information Display:

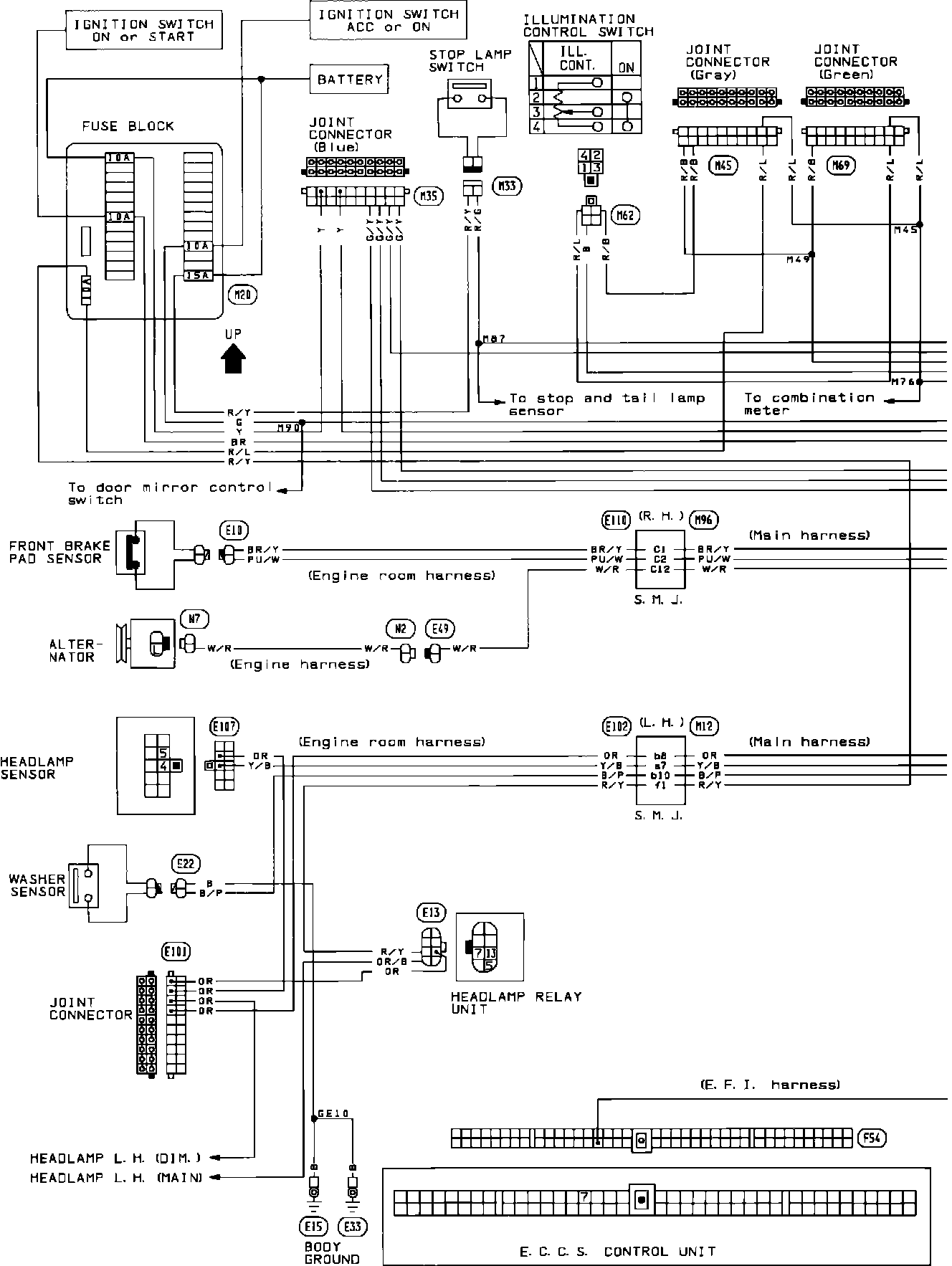

Diagnostic Information Display:
