M102, M103, B18, and M72 (Main Harness, Right Side)
M102, M103, B18, and M72 (Main Harness, Right Side)

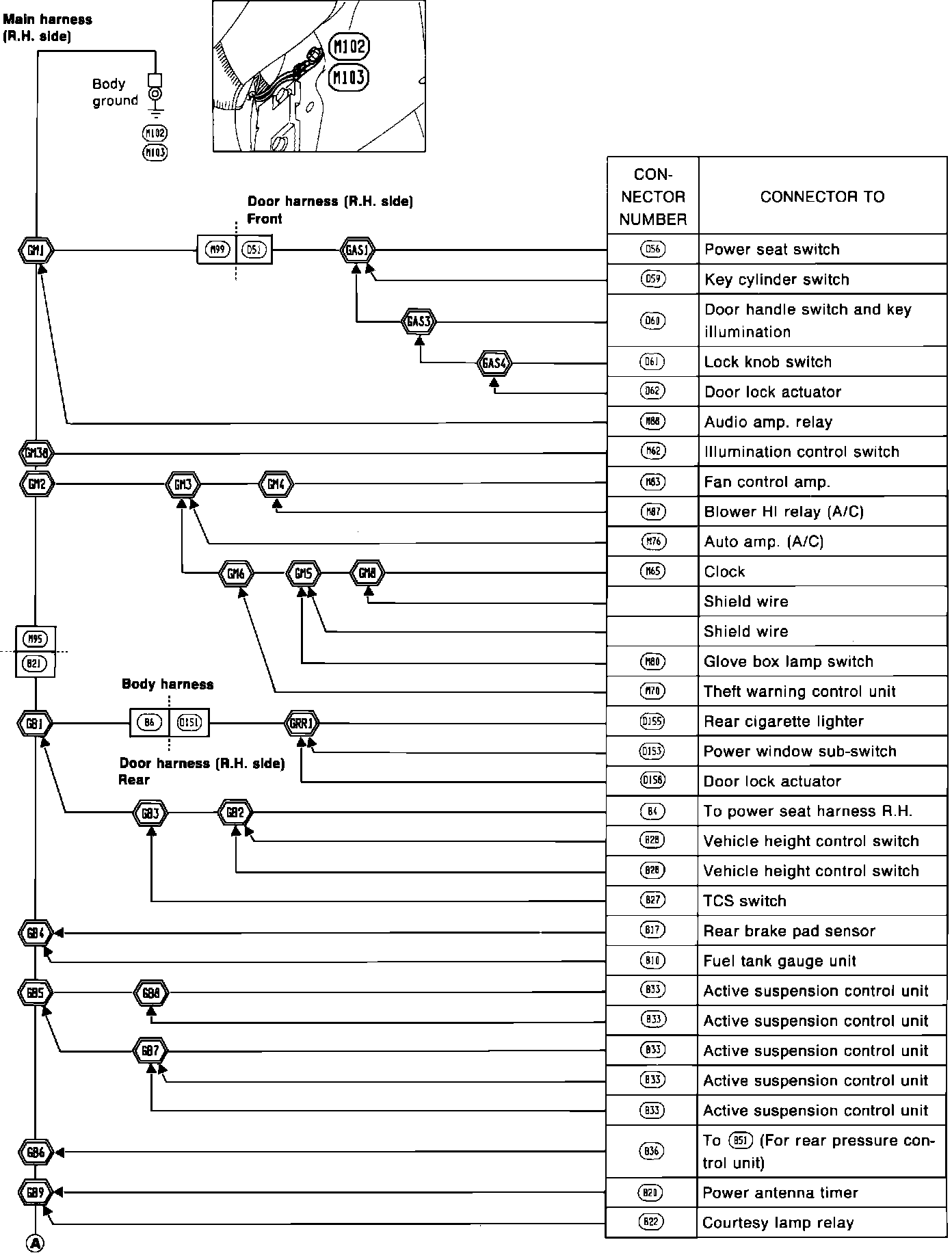

Ground Distribution (M102, M103, B18, And M72):
Ground Distribution (M102, M103, B18, And M72):
