Anti-Theft and Alarm System

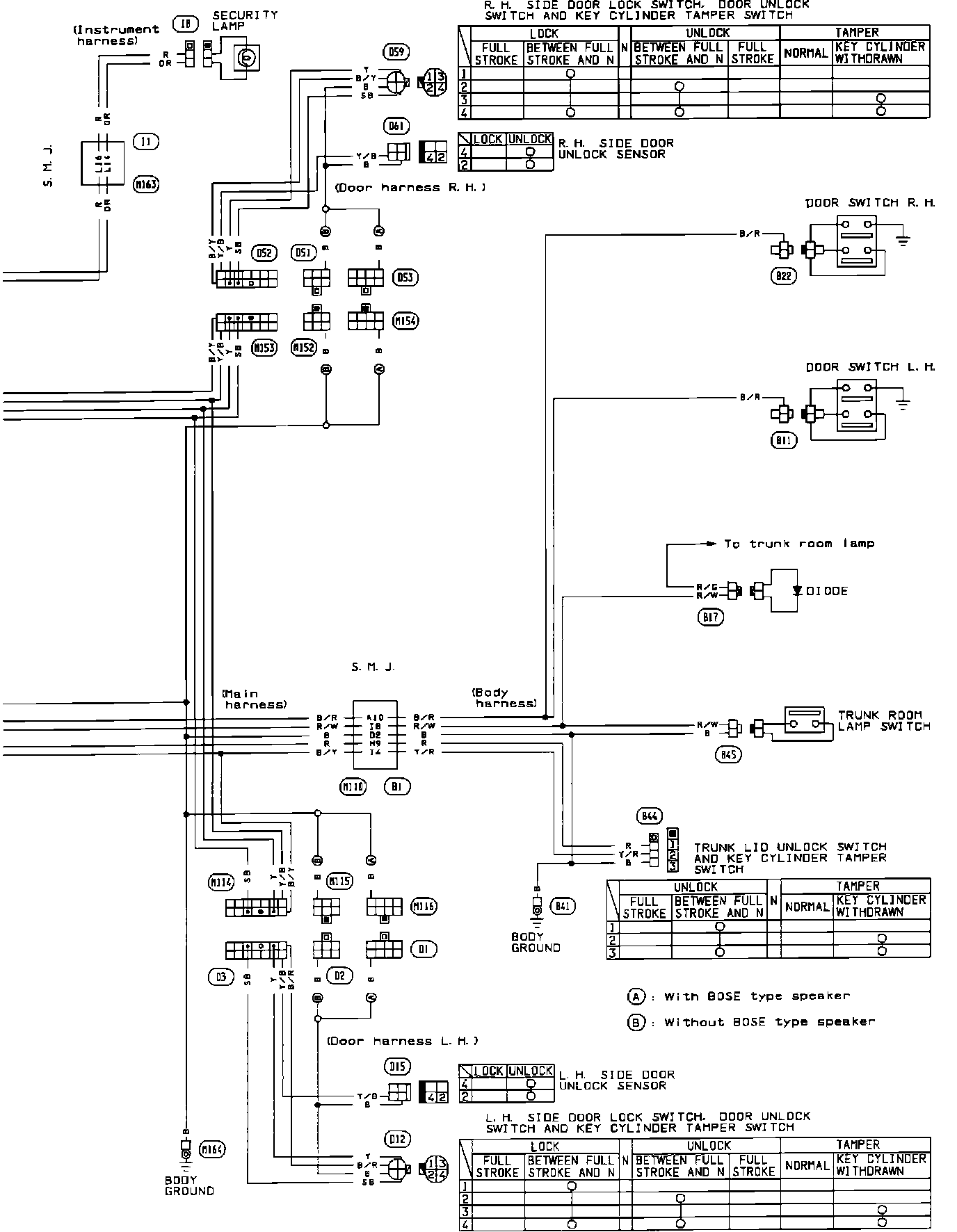

Antitheft And Alarm System Wiring:



Antitheft And Alarm System Wiring:
