Dashboard / Instrument Panel: Service and Repair

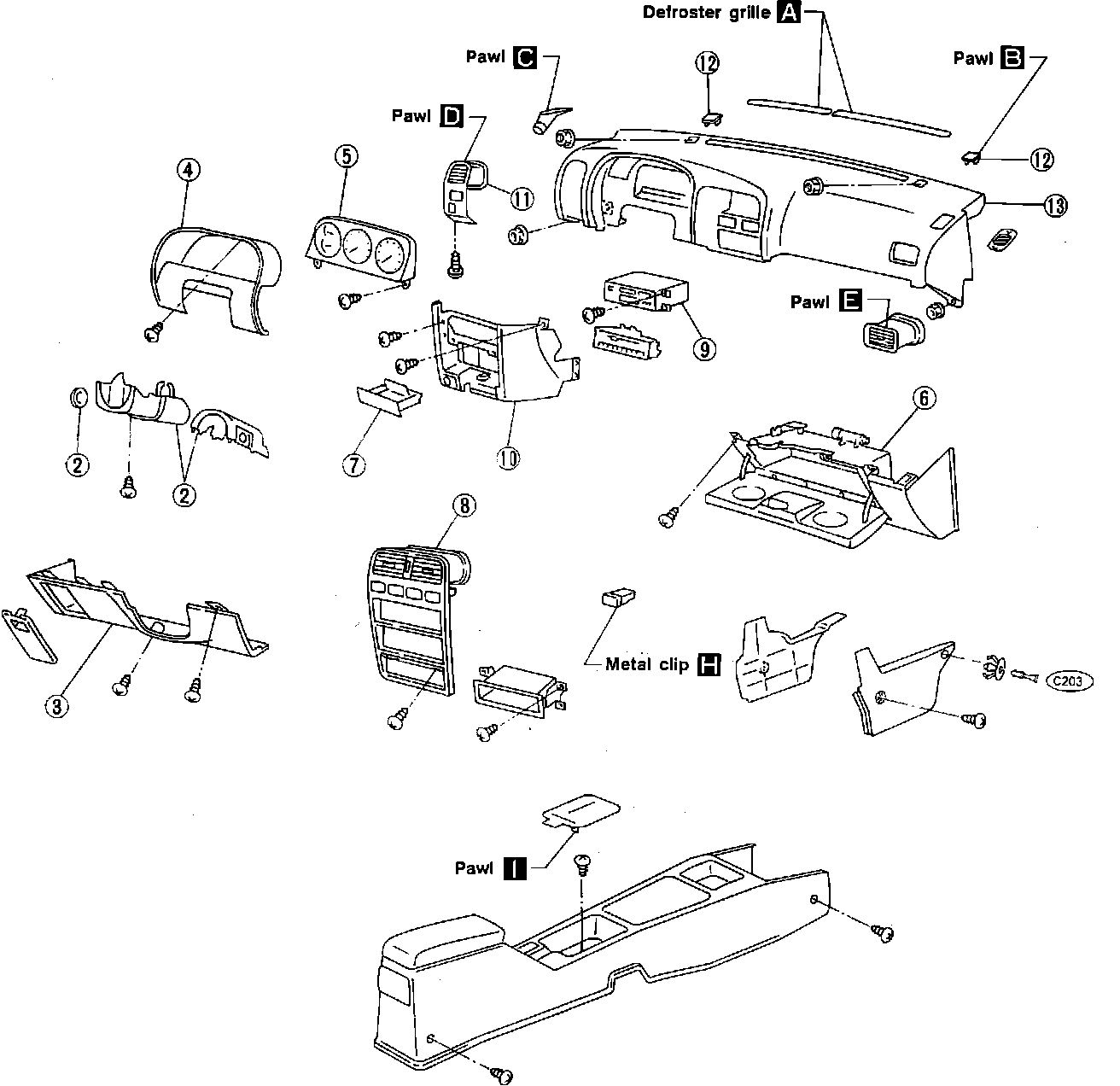

Fig. 3 Exploded View Of Instrument Panel.:

1. Disconnect battery ground cable.
2. Remove steering wheel.
3. Remove upper and lower steering column covers, Fig. 3.
4. Remove left side lower instrument panel.
5. Remove cluster A.
6. Remove meters, then disconnect meter harness electrical connector.
7. Remove glove box, then disconnect glove box lamp electrical connector.
8. Remove lower instrument panel.
9. Remove reinforced panel, ashtray inner case and cluster C.
10. Disconnect cluster electrical connector, then remove audio bracket to instrument panel retaining screw.
11. Disconnect audio system electrical connector and antenna feeder cable.
12. Remove pocket deck and center lower instrument panel.
13. Remove heater control unit, then disconnect cigarette lighter electrical connector.
14. Remove left side ventilator, then disconnect switch electrical connector.
15. Remove left and right side instrument panel mask.
16. Remove instrument panel.
17. Reverse procedure to install.
