Home >> Infiniti >> 1993 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Components >> 2-Point Motorized Automatic Seat Belt System

2-Point Motorized Automatic Seat Belt System

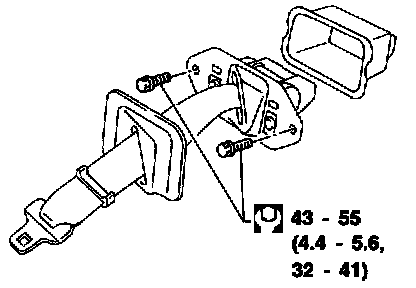

Unit Location:

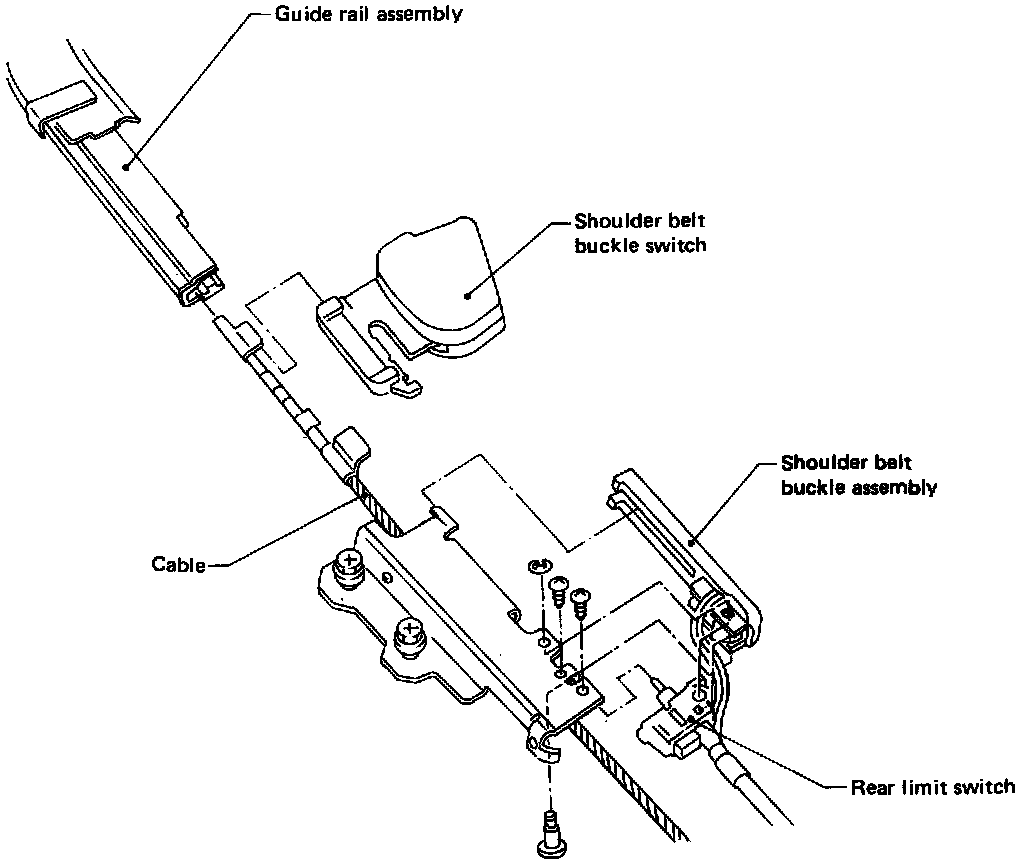

Unit Location:

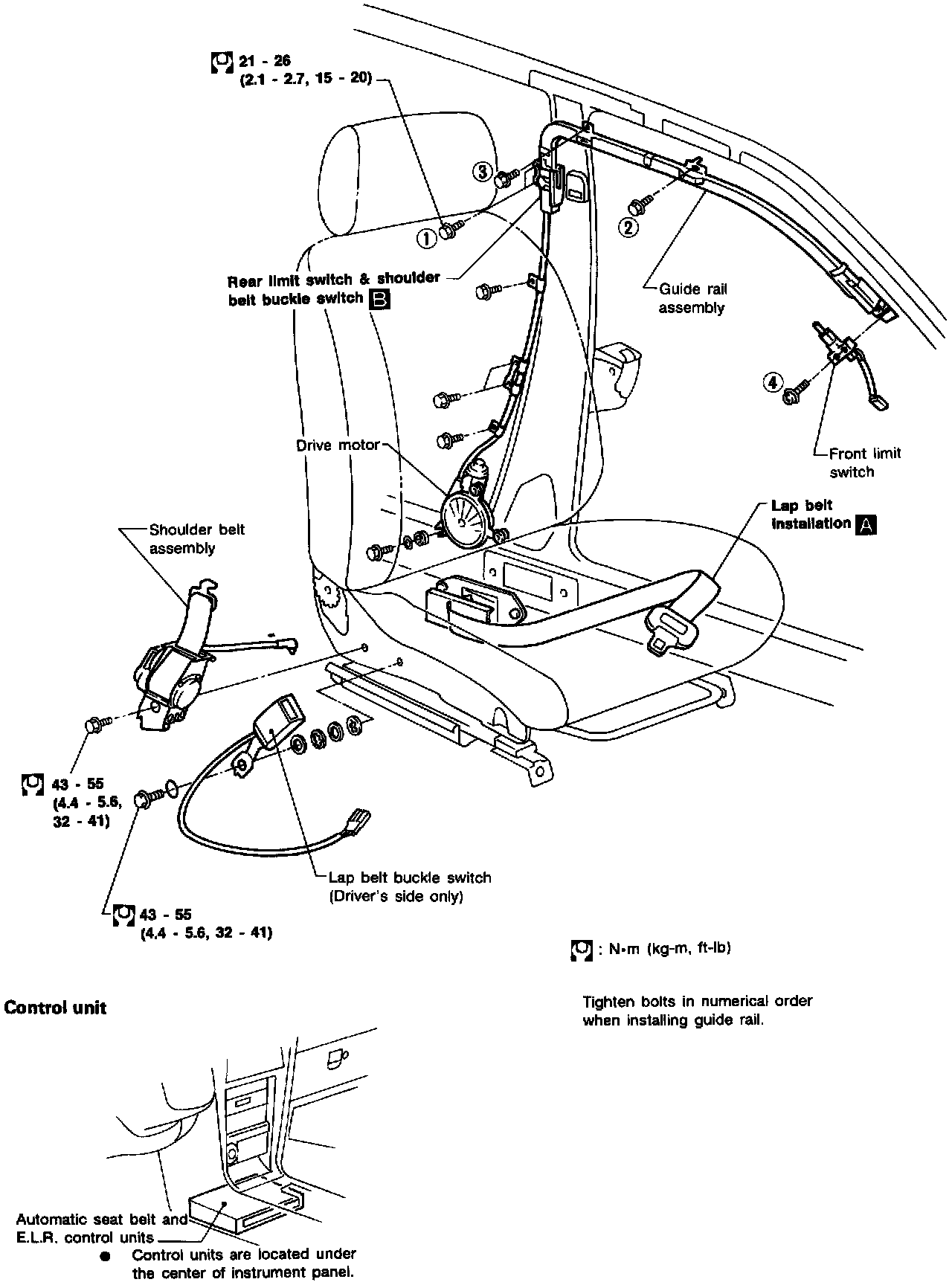

Unit Location:
