Home >> Infiniti >> 1993 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks

Power Locks

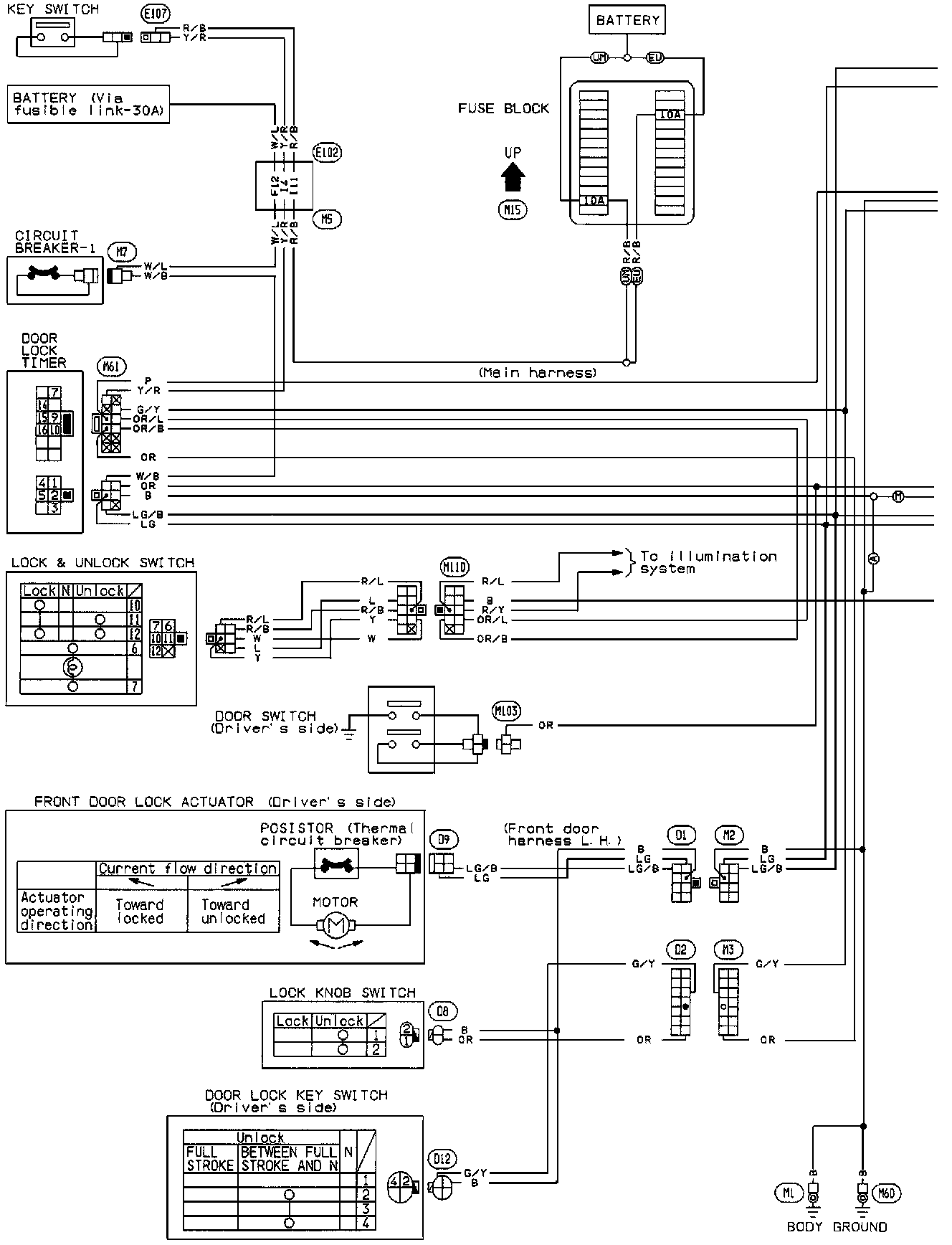

Power Door Lock (Part 1 Of 2):



Power Door Lock (Part 2 Of 2):
