Home >> Infiniti >> 1993 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T

Shift Interlock, A/T

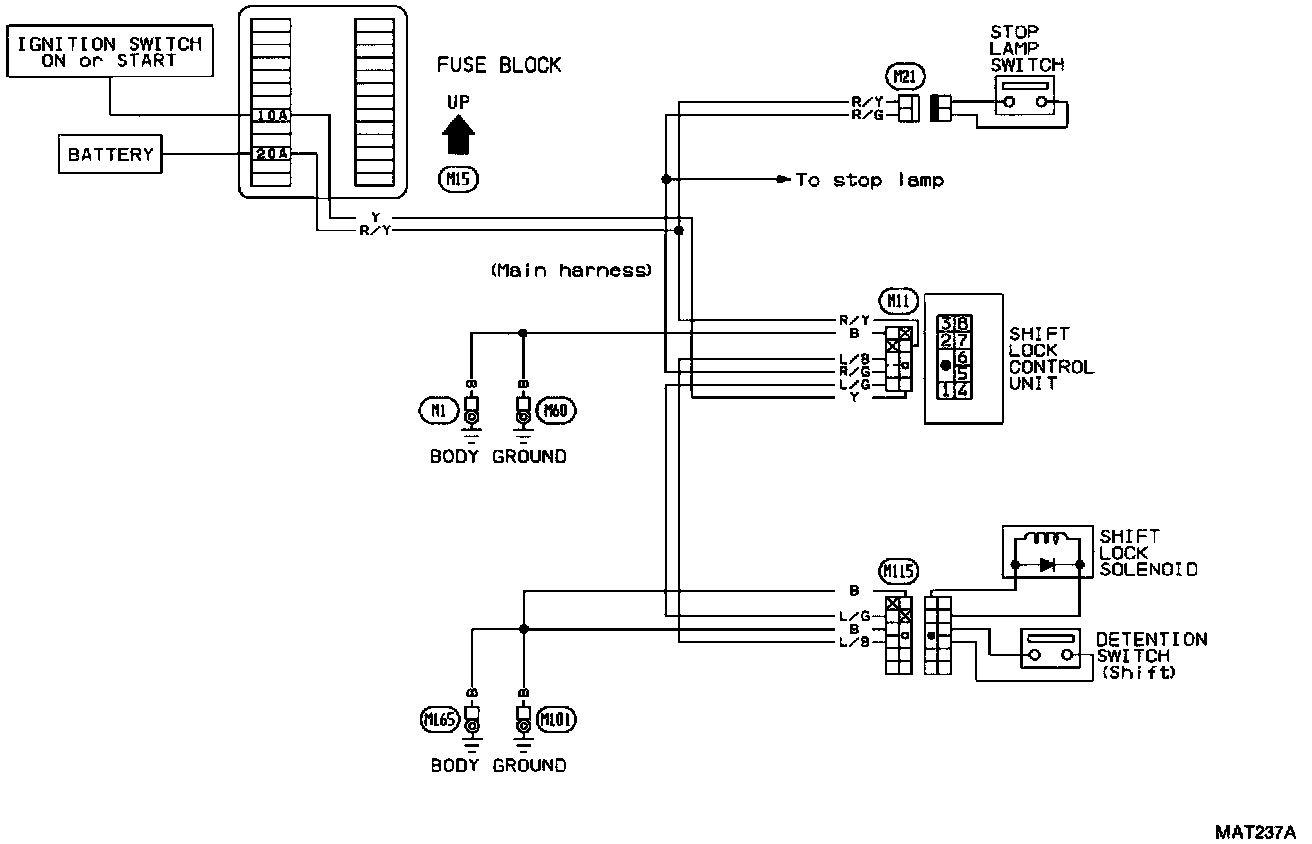

A/T Shift Lock System: Wiring Diagram:
