Home >> Infiniti >> 1993 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Position Sensor/Switch, A/T

Transmission Position Sensor/Switch, A/T

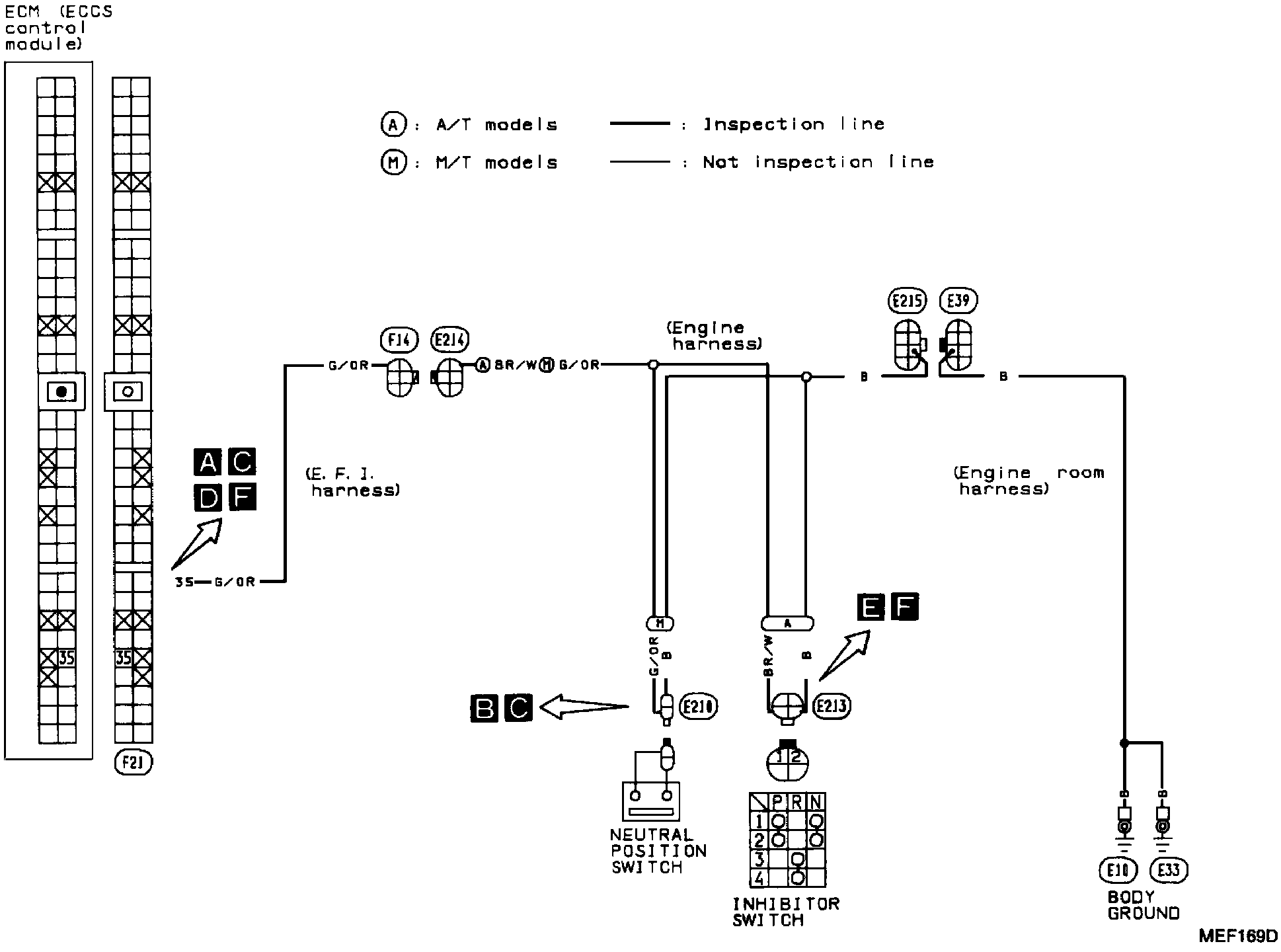

Neutral Position/Inhibitor Switch:
