Home >> Infiniti >> 1993 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Harness >> Door Harness (RH Side) >> Front

Front

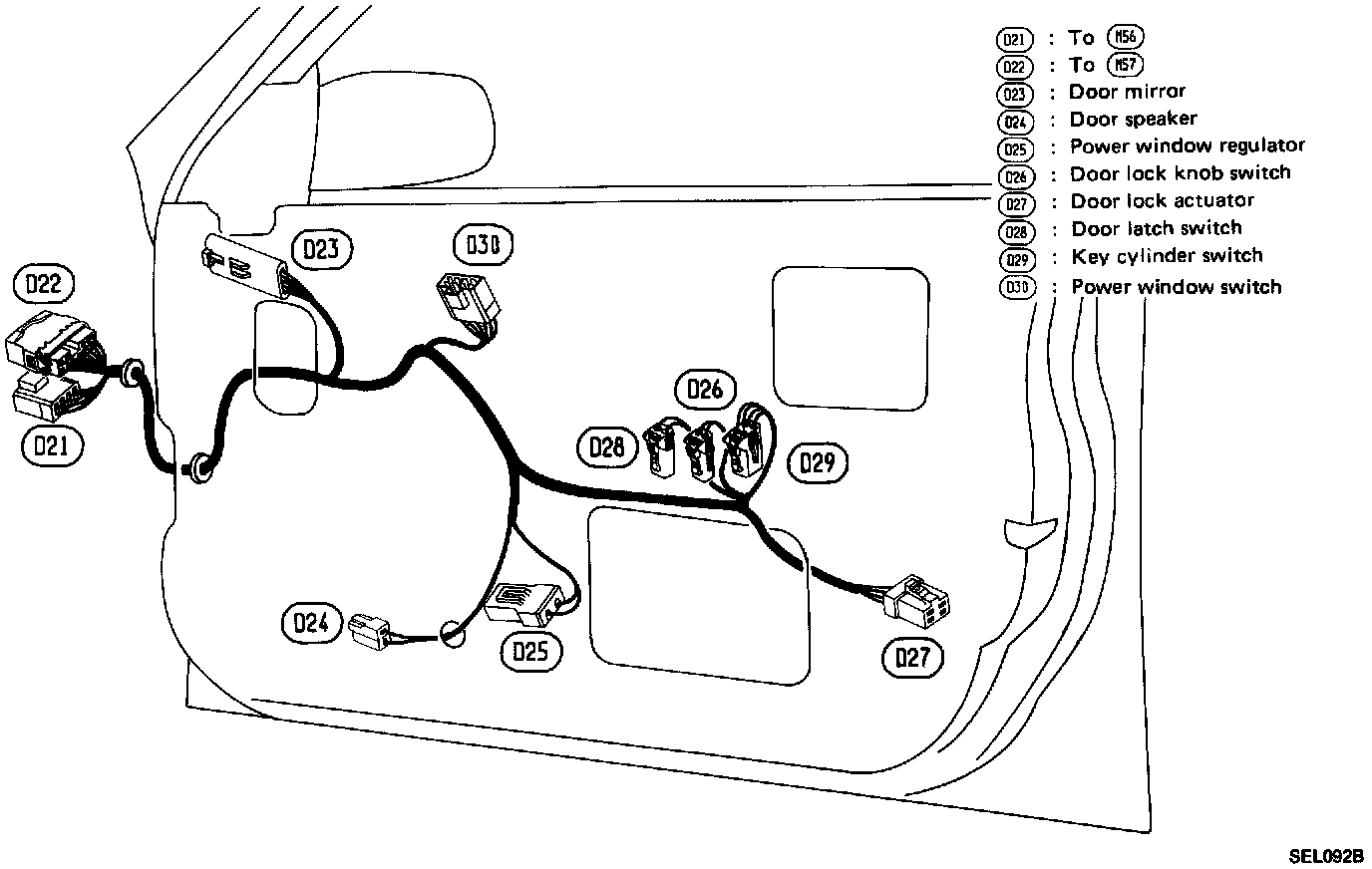

Door Harness (R.H.side)-Front:
