Component Tests and General Diagnostics

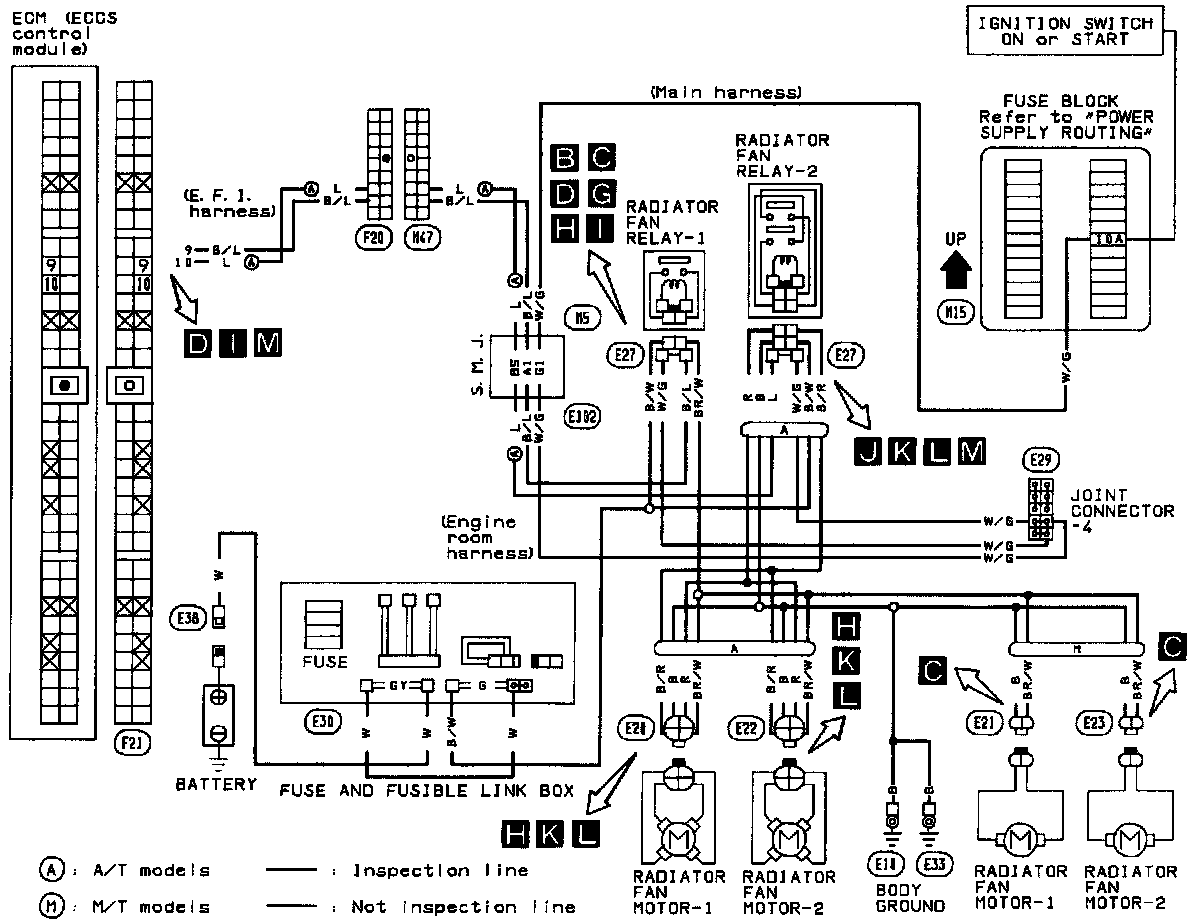

Fig. 1 Cooling Fan Wiring Diagram:

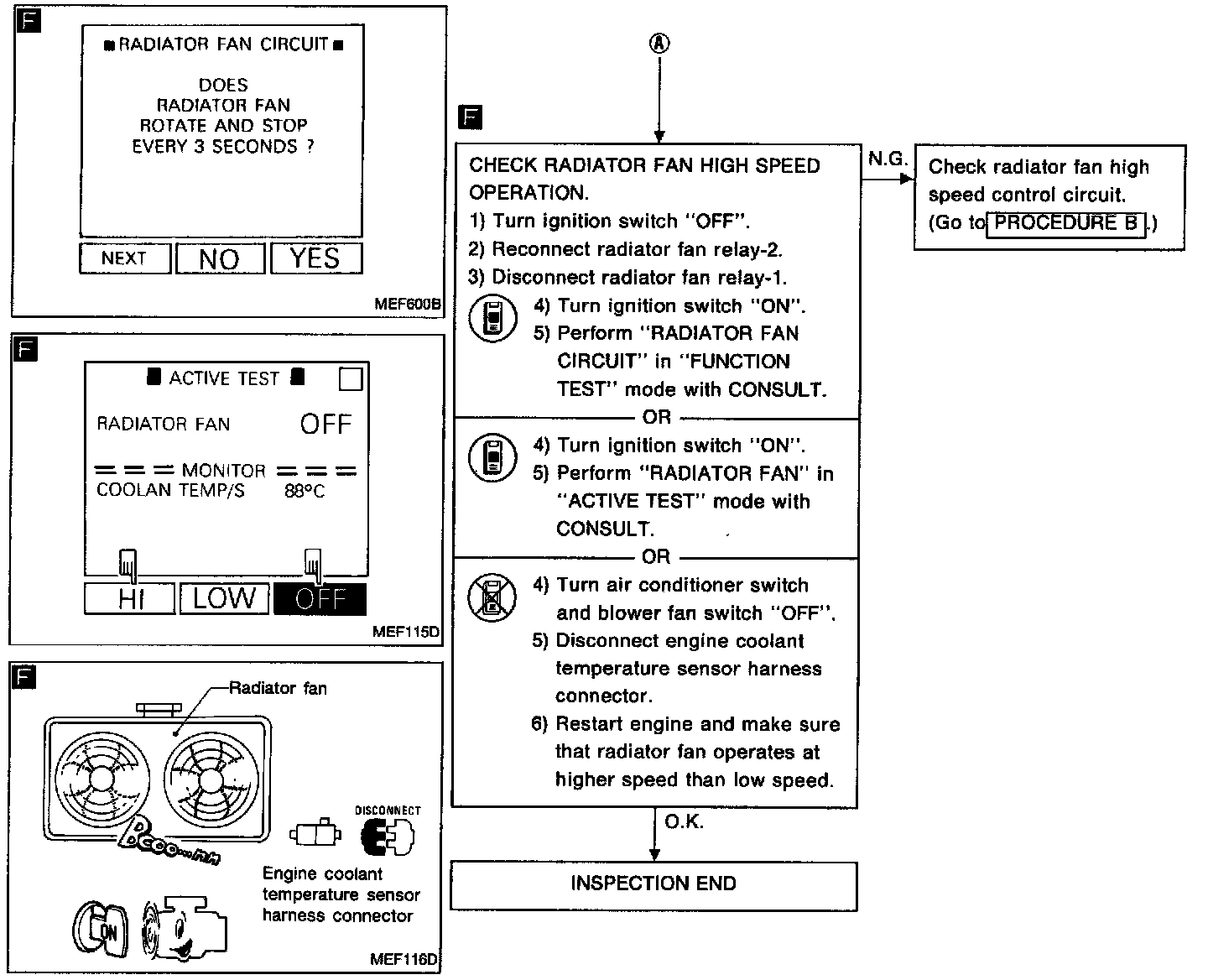

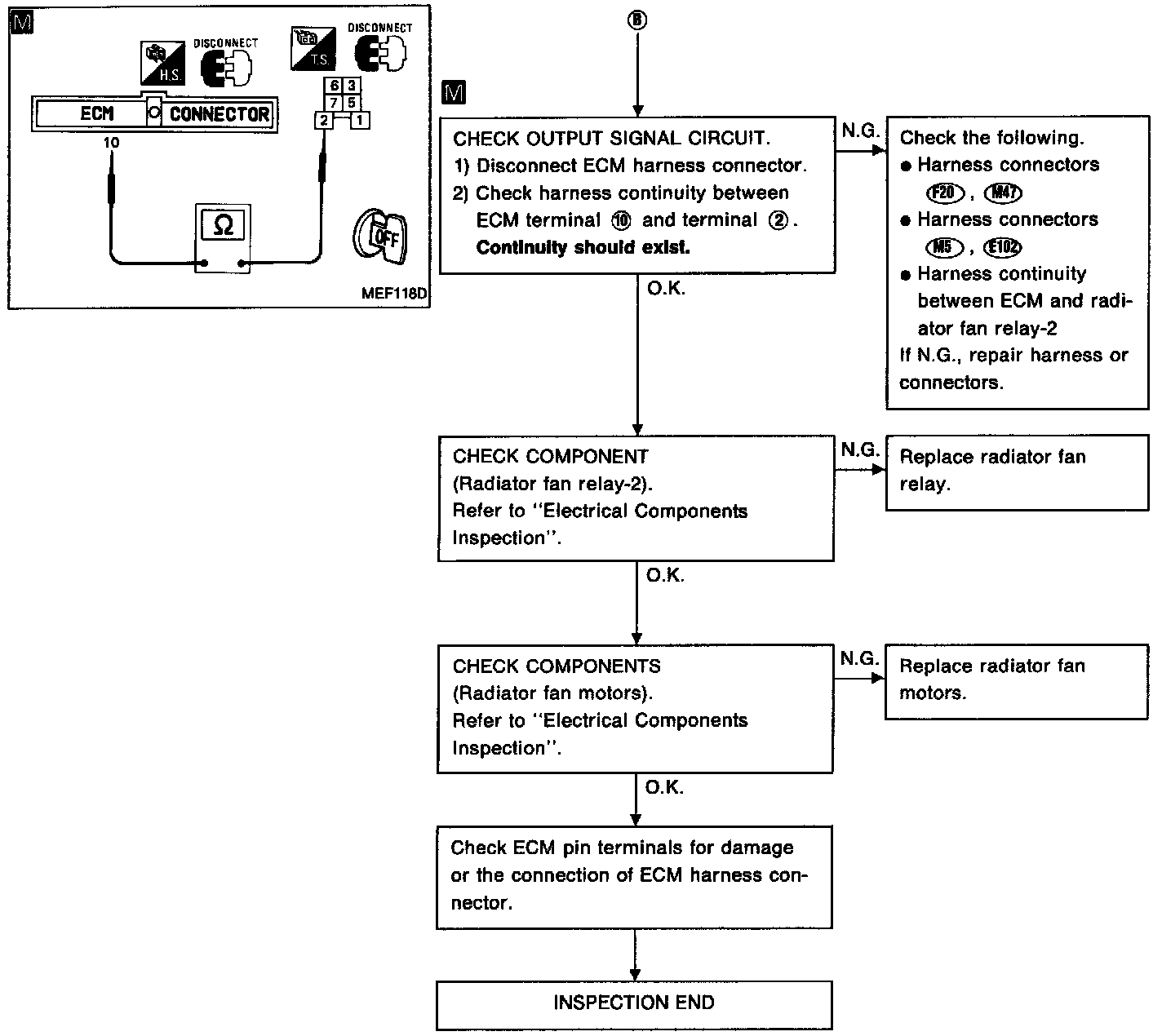

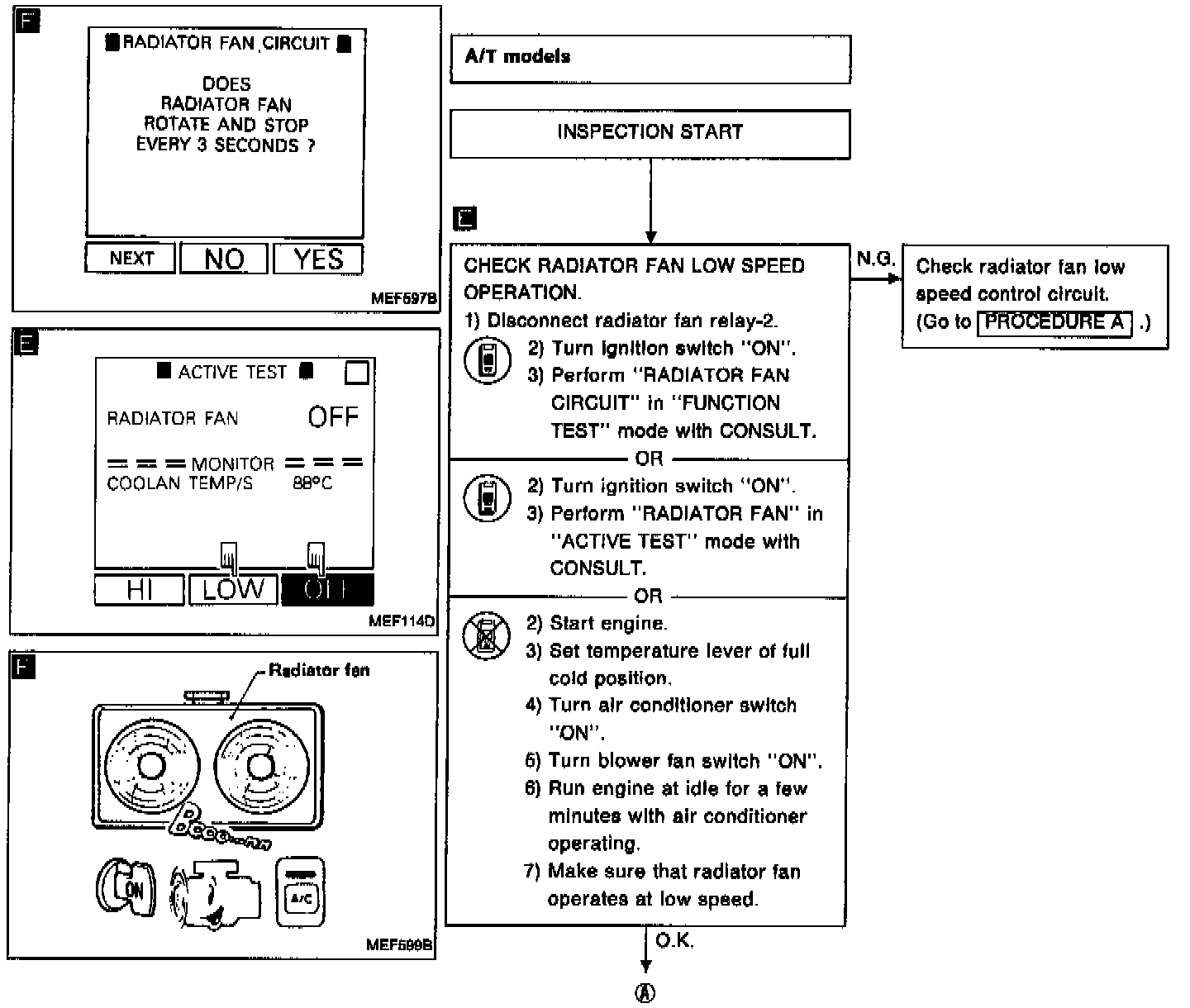

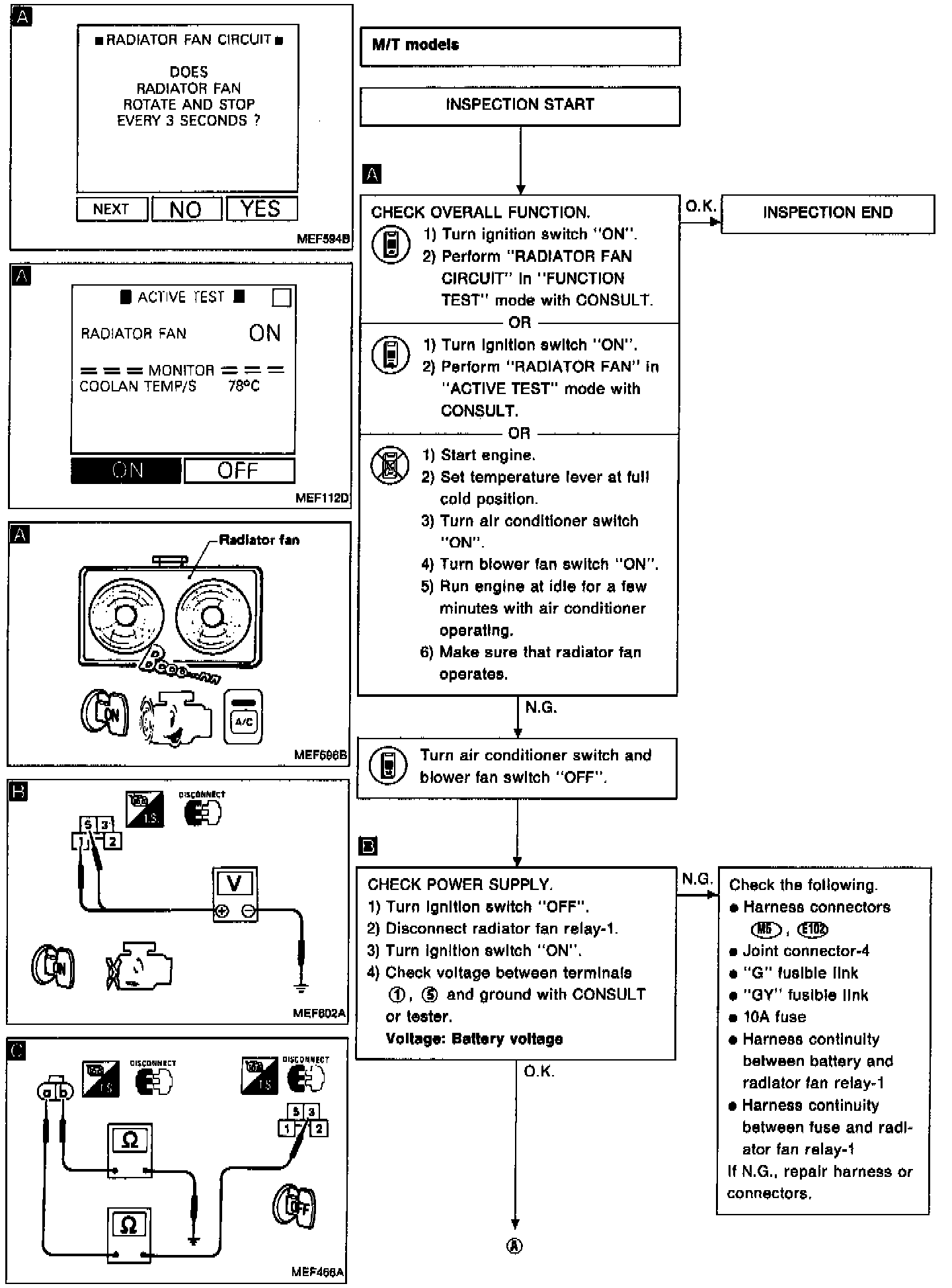

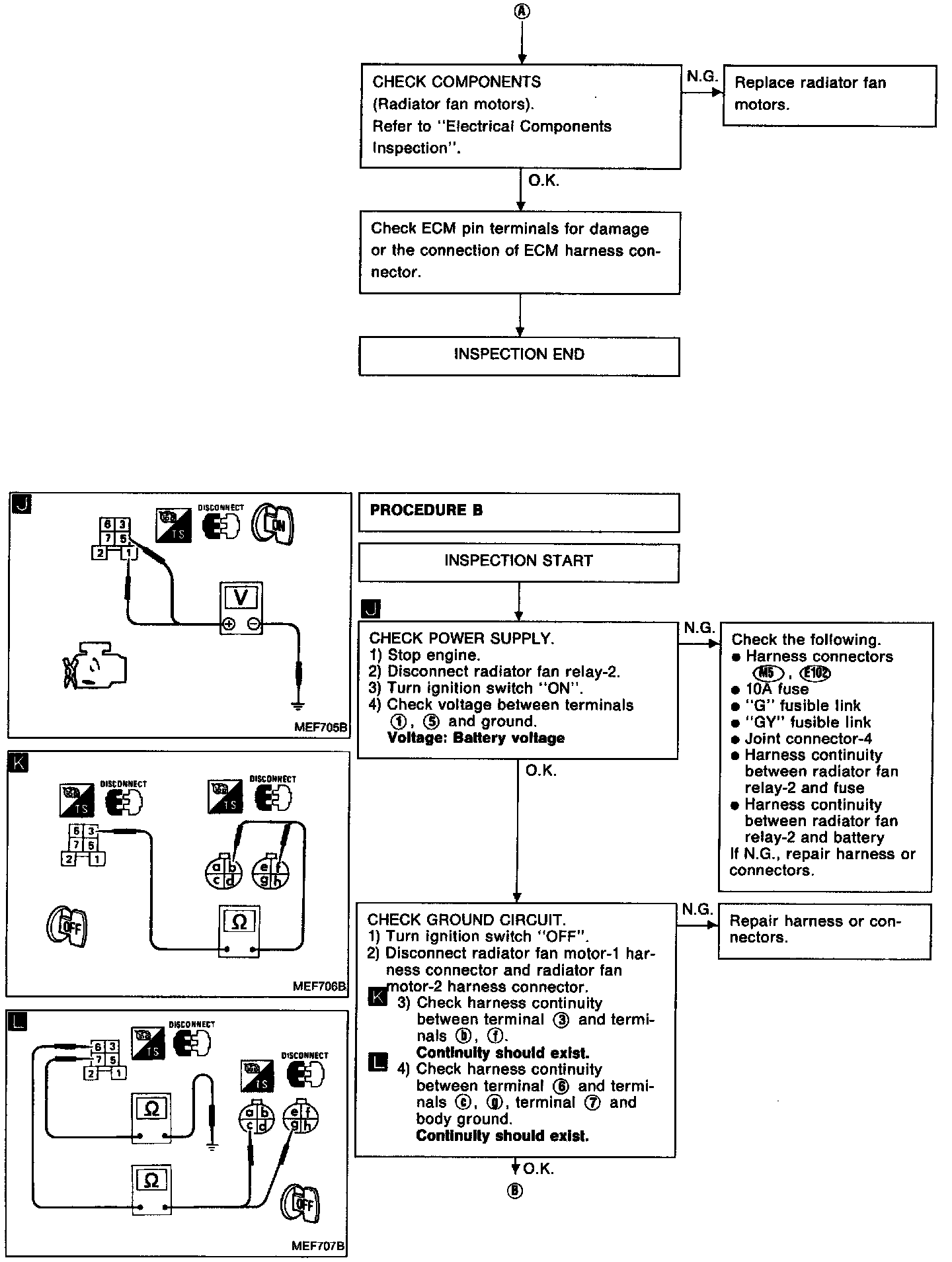

Fig. 3 Troubleshooting cooling fan (Part 1 of 7):

Fig. 3 Troubleshooting cooling fan (Part 2 of 7):

Fig. 3 Troubleshooting cooling fan (Part 3 of 7):

Fig. 3 Troubleshooting cooling fan (Part 4 of 7):

Fig. 3 Troubleshooting cooling fan (Part 5 of 7):

Fig. 3 Troubleshooting cooling fan (Part 6 of 7):

Fig. 3 Troubleshooting cooling fan (Part 7 of 7):

When troubleshooting cooling fan motor refer to Fig. 1 for wiring diagram of system and to Fig. 3 for cooling fan troubleshooting procedures.
