Home
>>
Infiniti
>>
1993
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Illumination
Illumination

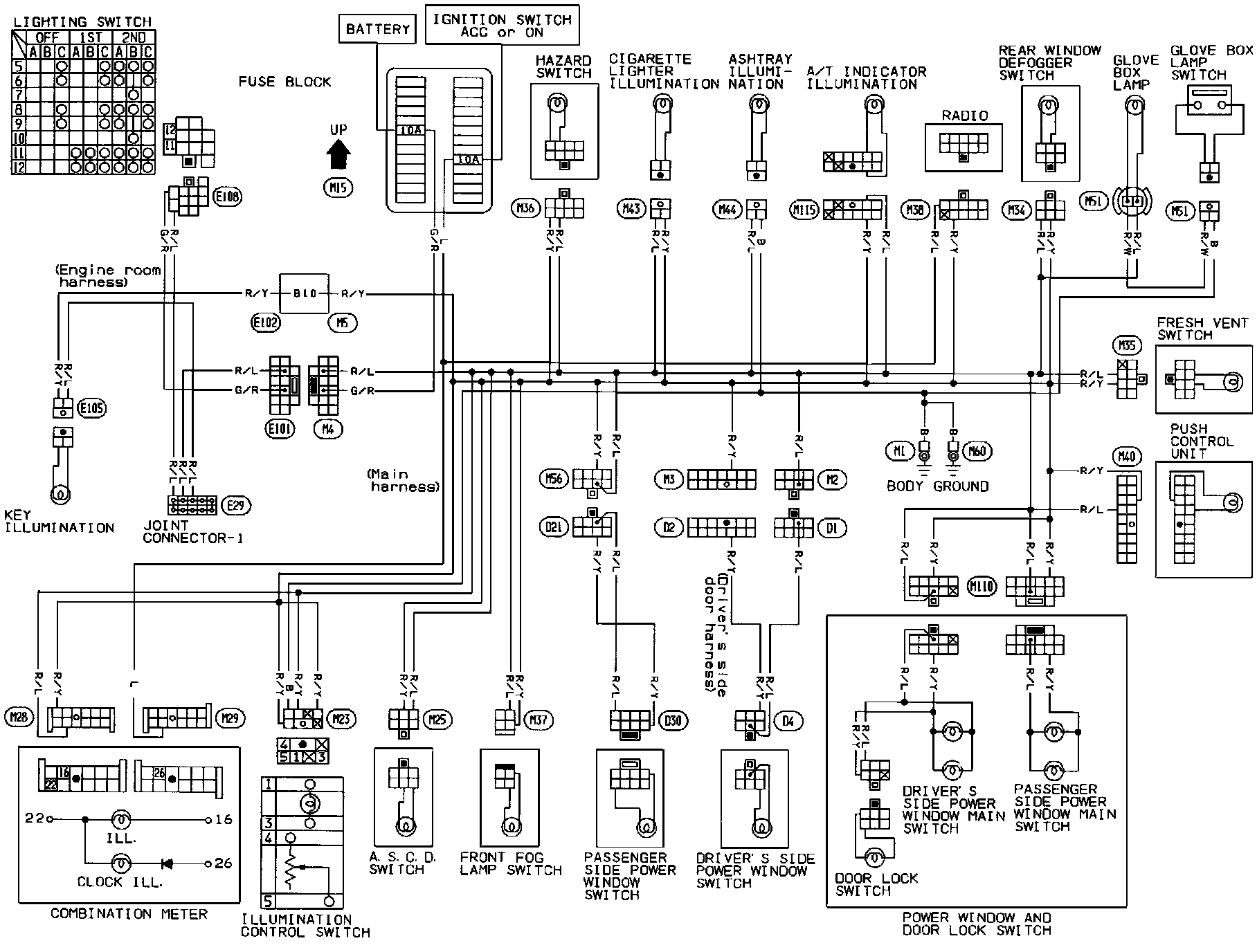

Illumination/Wiring Diagram:
