Heated Glass Element: Testing and Inspection

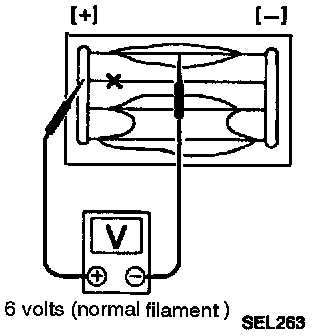

1. Attach probe circuit tester (in volt range) to middle portion of each filament.

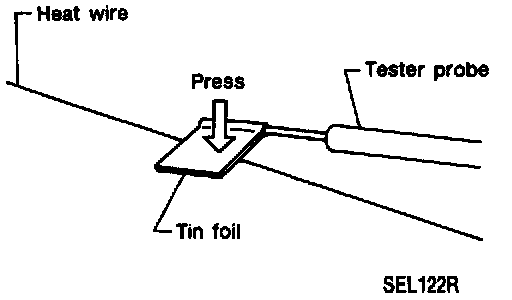

^ When measuring voltage,wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your finger as shown.

2. If a filament is burnt out, circuit tester registers 0 or 12 volts.

3. To locate burned out point,move probe to left and right along filament to determine point where tester needle swings abruptly.
