CONSULT-II Inspection Procedure

Consult:

1. Turn off ignition switch.

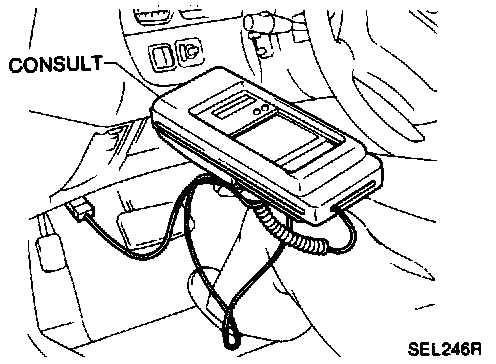

2. Connect "CONSULT" to data link connector.

Consult:

3. Turn on ignition switch.
4. Turn on A.S.C.D. main switch.
5. Touch START (on CONSULT display).
6. Touch A.S.C.D
7. Touch SELF-DIAG RESULTS.

Self-Diagnostic Results:

^ Self-diagnostic results are shown on display.

Data Monitor:

^ Touch DATA MONITOR.

Start:

^ Touch START.
^ Data monitor results are shown on display.
