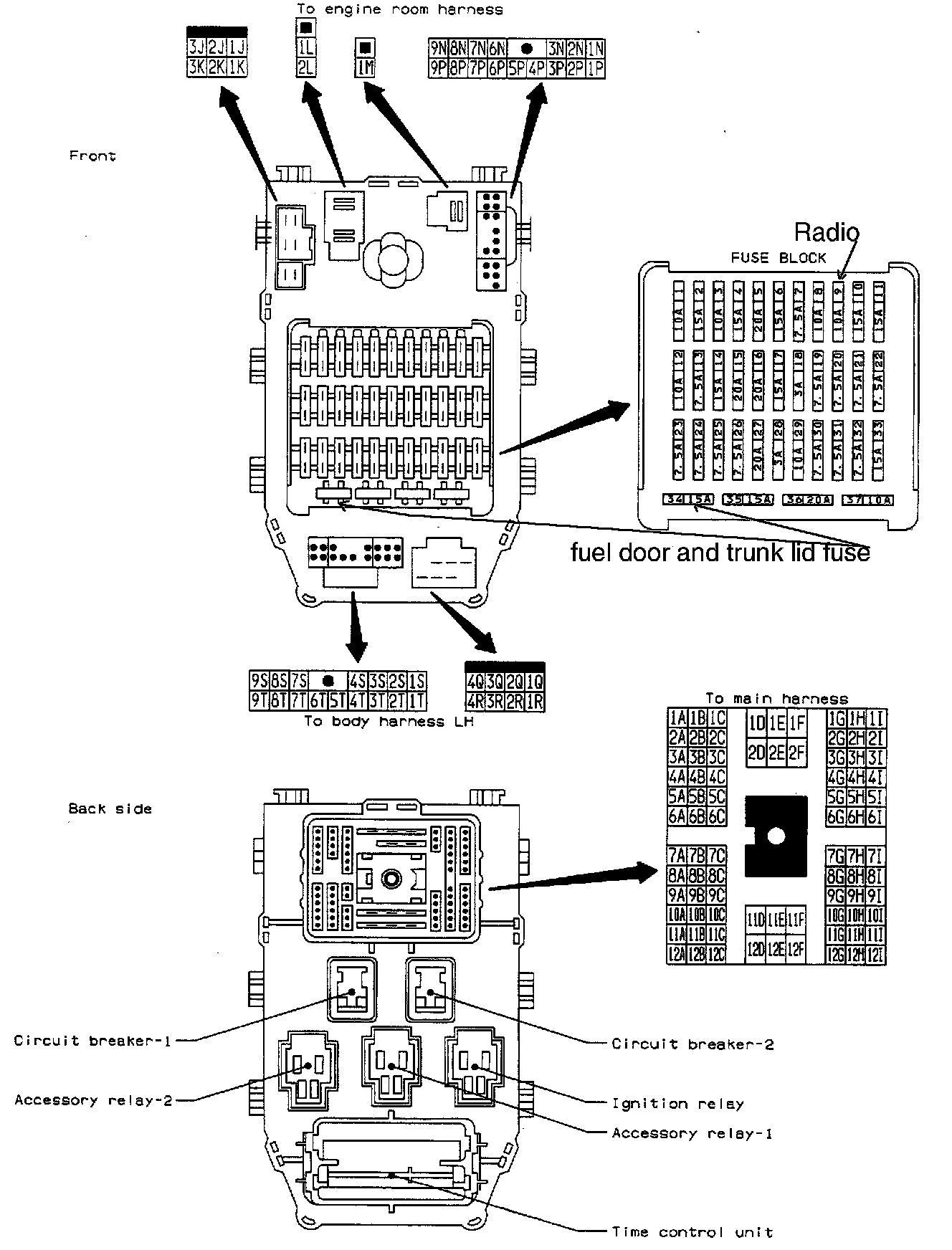

Fuse Block






FUSE No. 34 FUEL DOOR/TRUNK LID
FUSE No. 9 RADIO






UPPER FUSE BLOCK






LOWER FUSE BLOCK






DIAGRAM KEY
