Home >> Infiniti >> 1993 >> J30 V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> EGR Control Solenoid

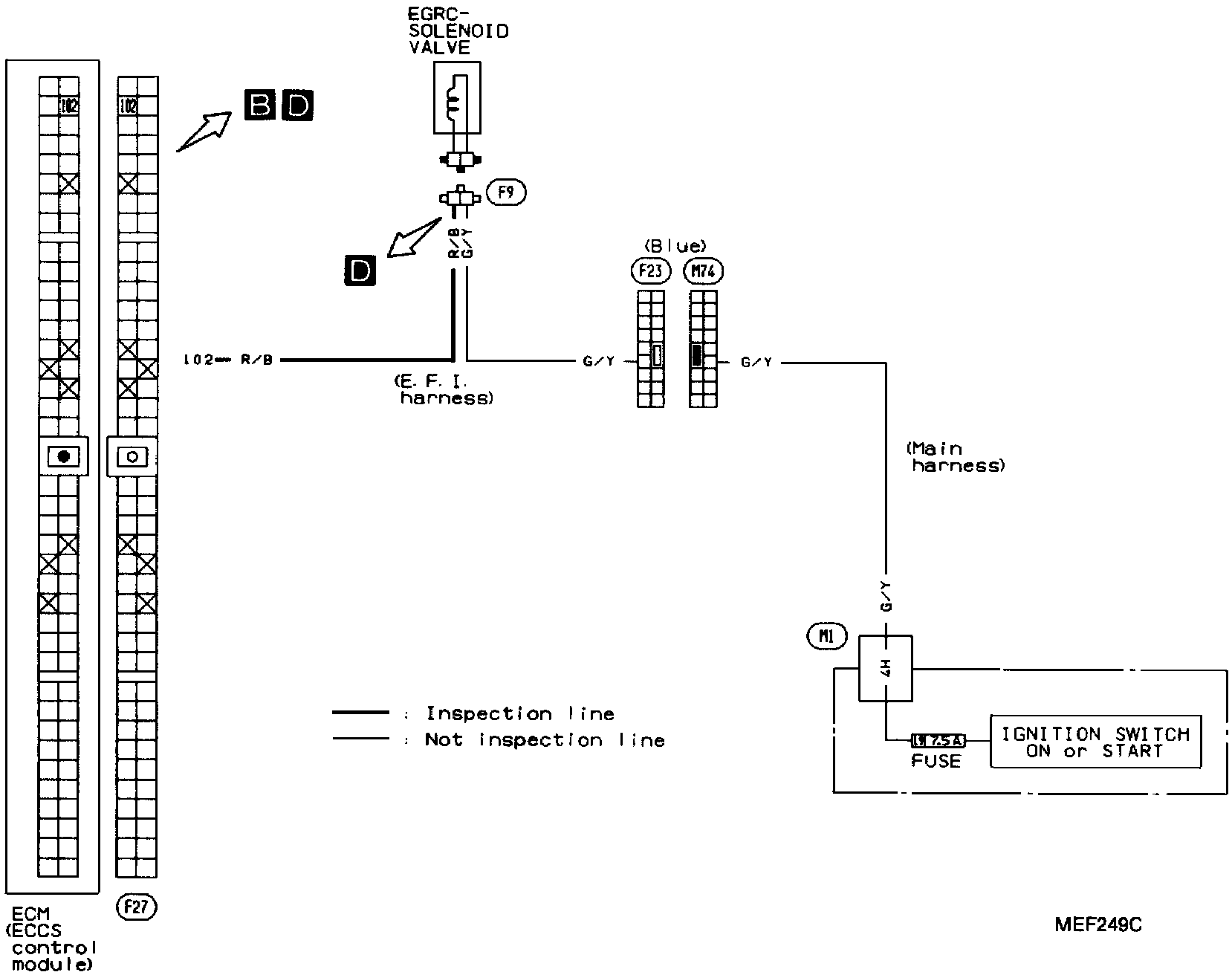

EGR Control Solenoid

E.G.R. Function:
