Home >> Infiniti >> 1993 >> J30 V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Door Harness (RH Side) >> Front

Front

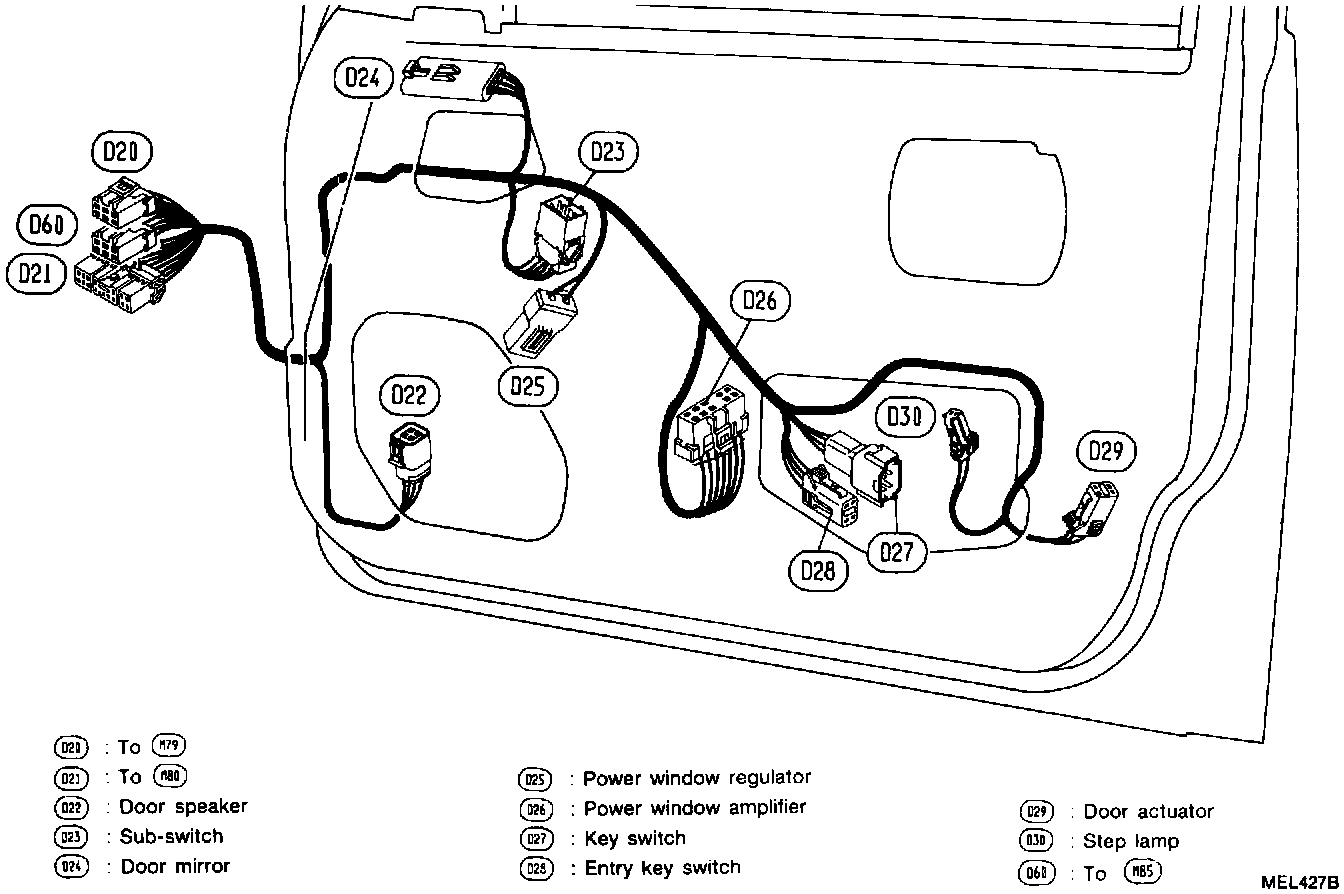

Door Harness (R.H. Side) - Front:
