Home
>>
Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Room Harness
>>

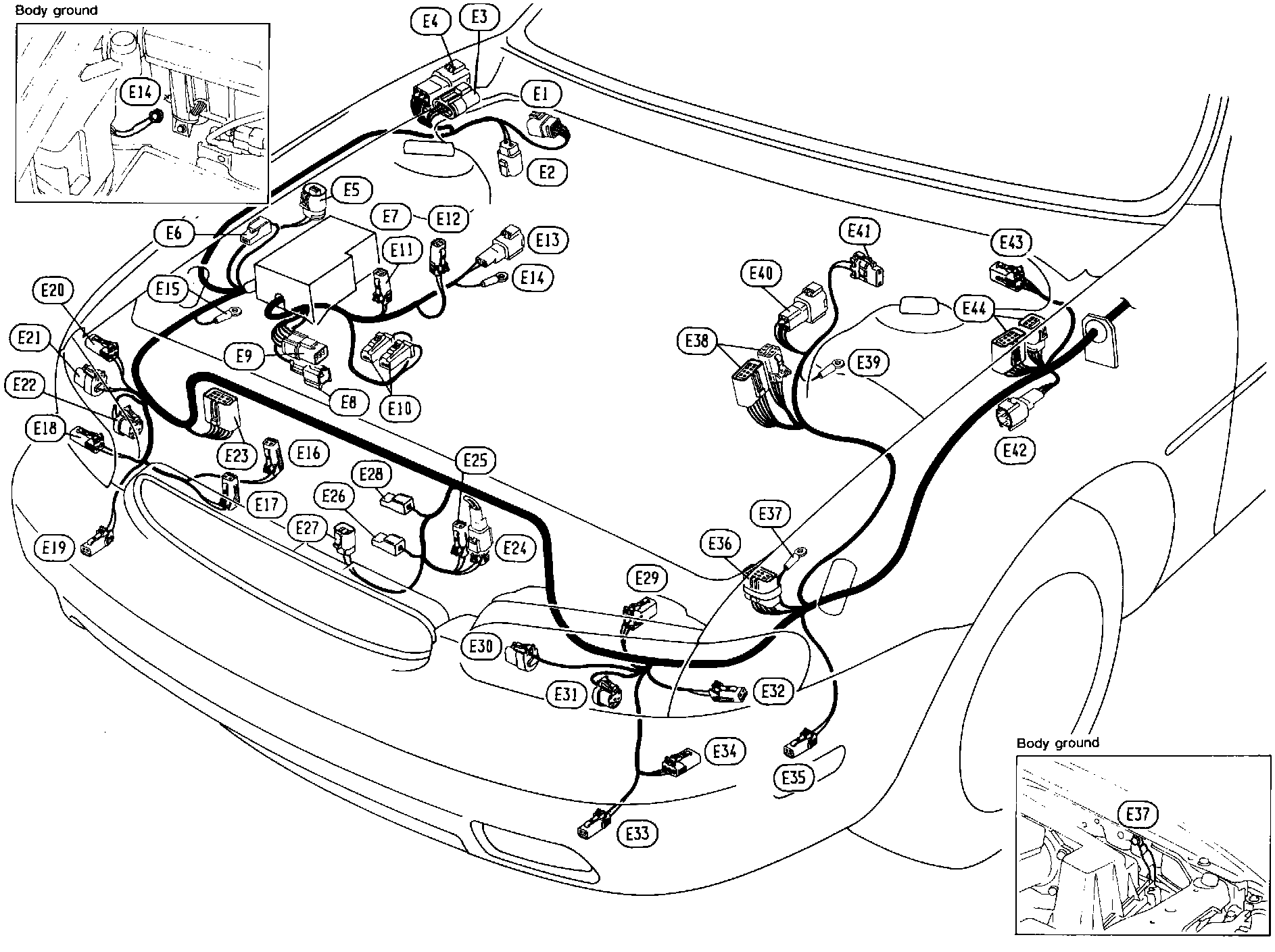

Engine Compartment
Engine Compartment

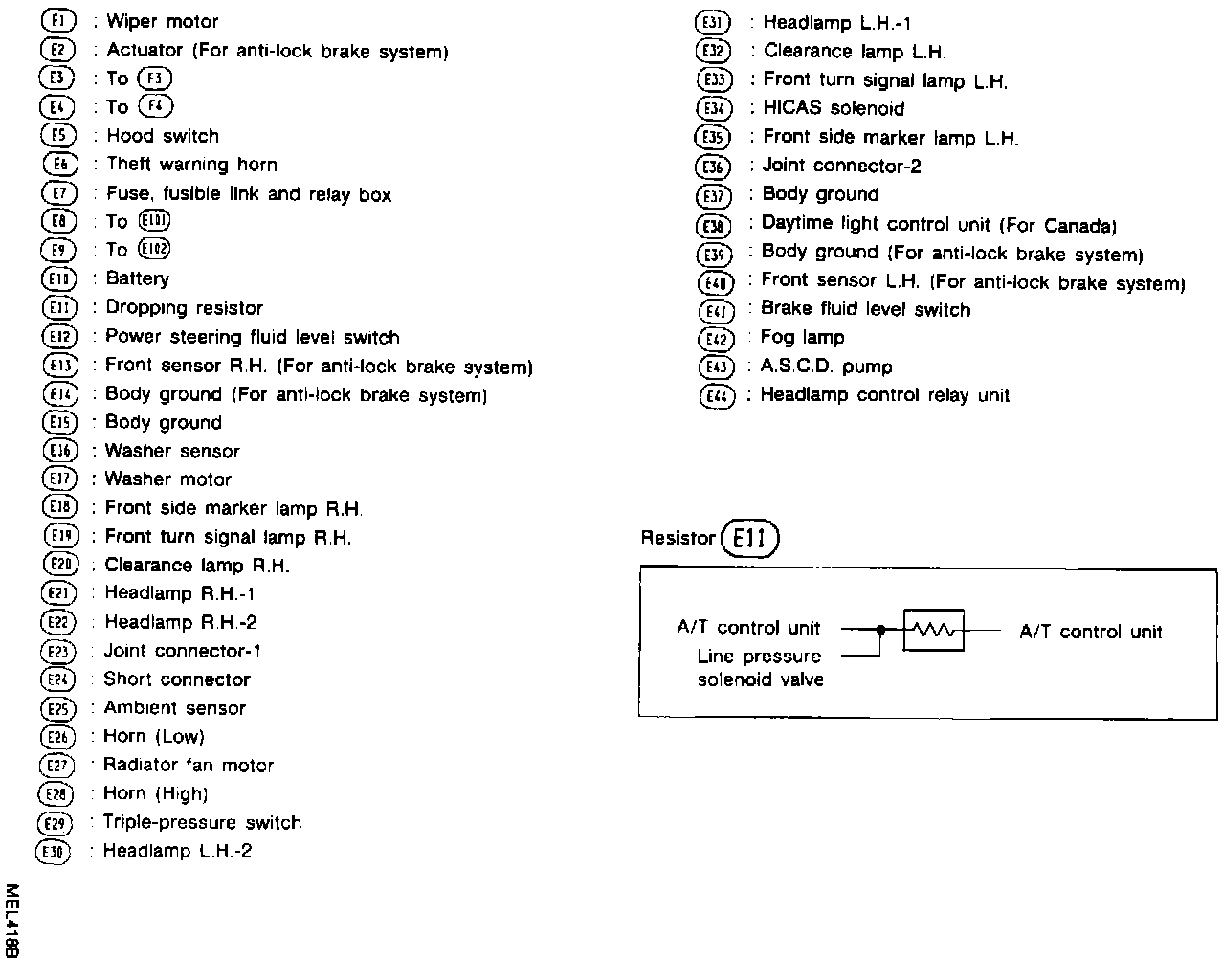

Engine Compartment:
Engine Compartment:
