Radiator Cooling Fan: Testing and Inspection

Cooling Fan Control (Not Self-Diagnostic Item):

Cooling Fan Control (Not Self-Diagnostic Item):

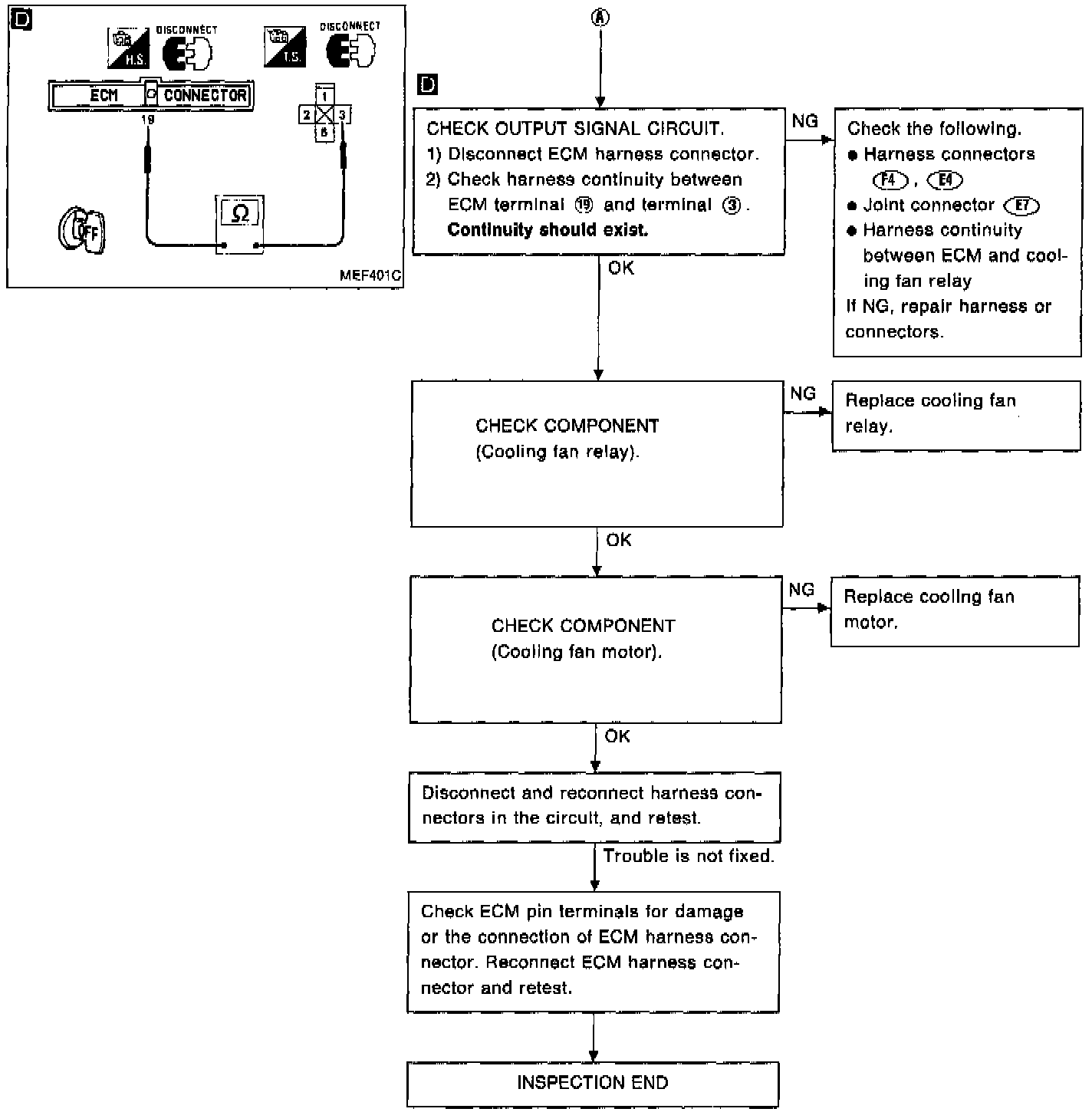

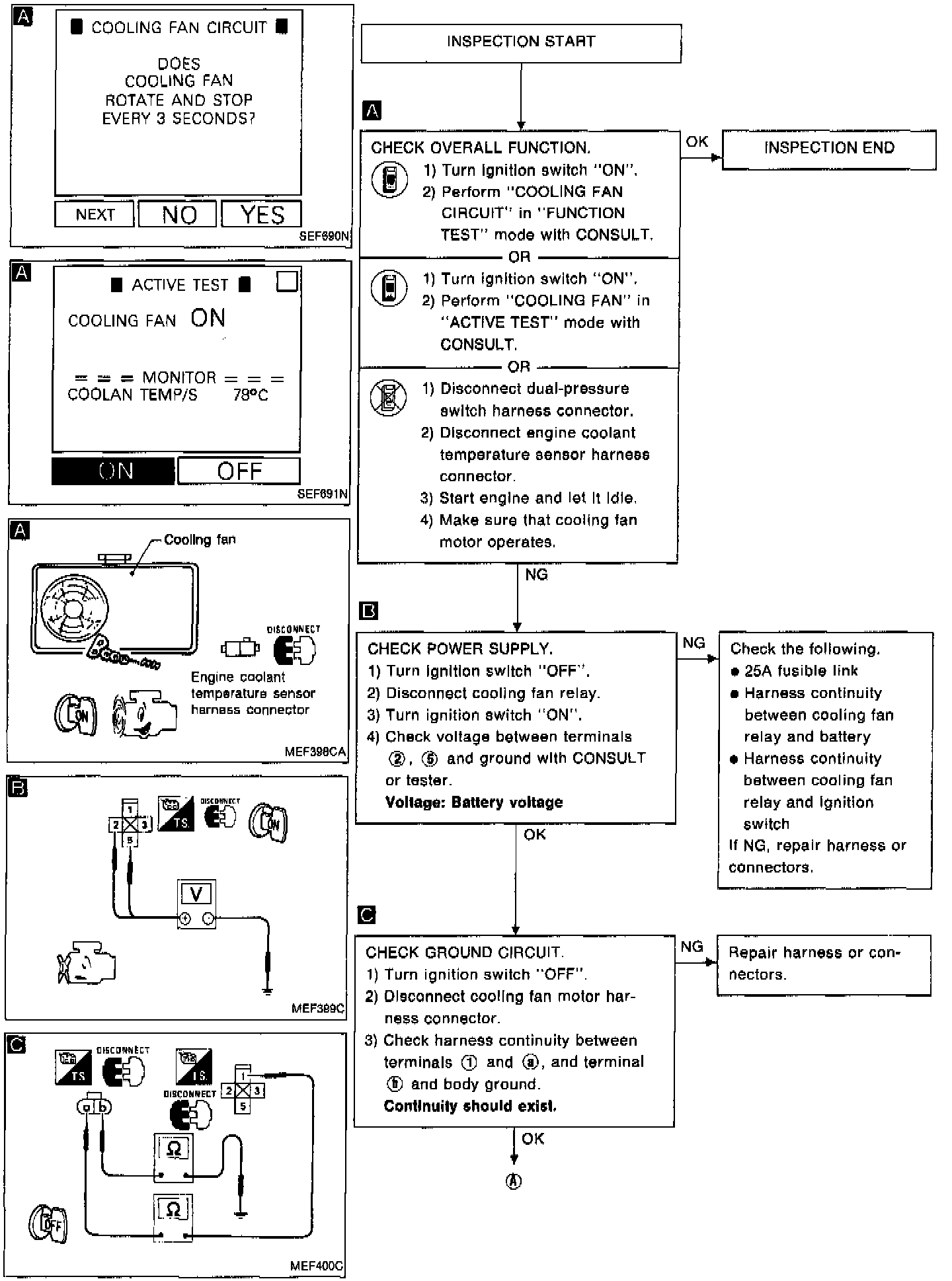

DIAGNOSTIC CHART

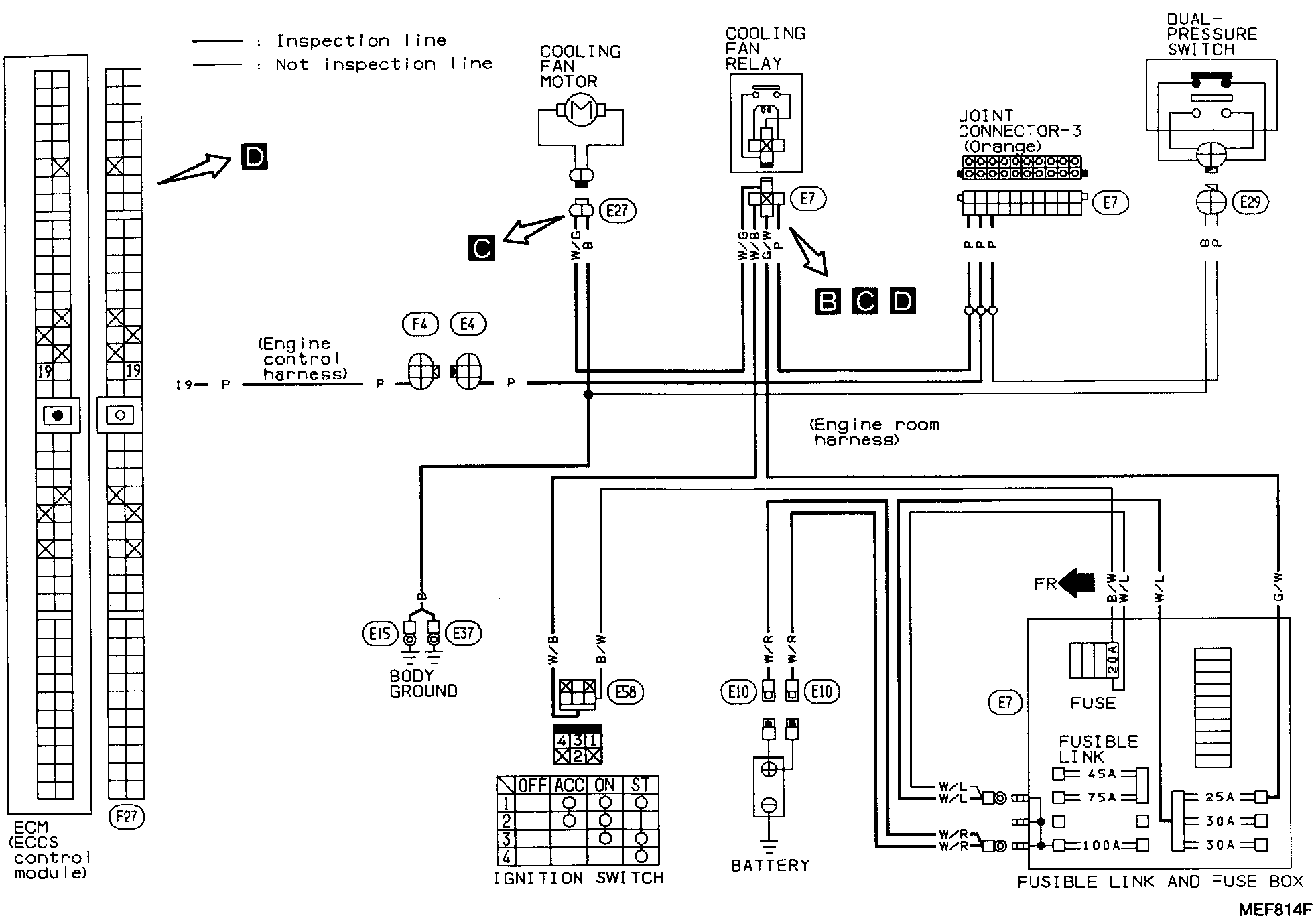

Circuit Diagram:

CIRCUIT DIAGRAM

Harness Layout:

Cooling Fan Motor Relay:

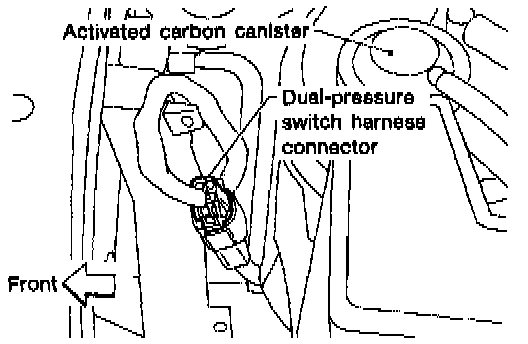

View From Under The Front Bumper Area:

HARNESS LAYOUT
