Wiring Diagram

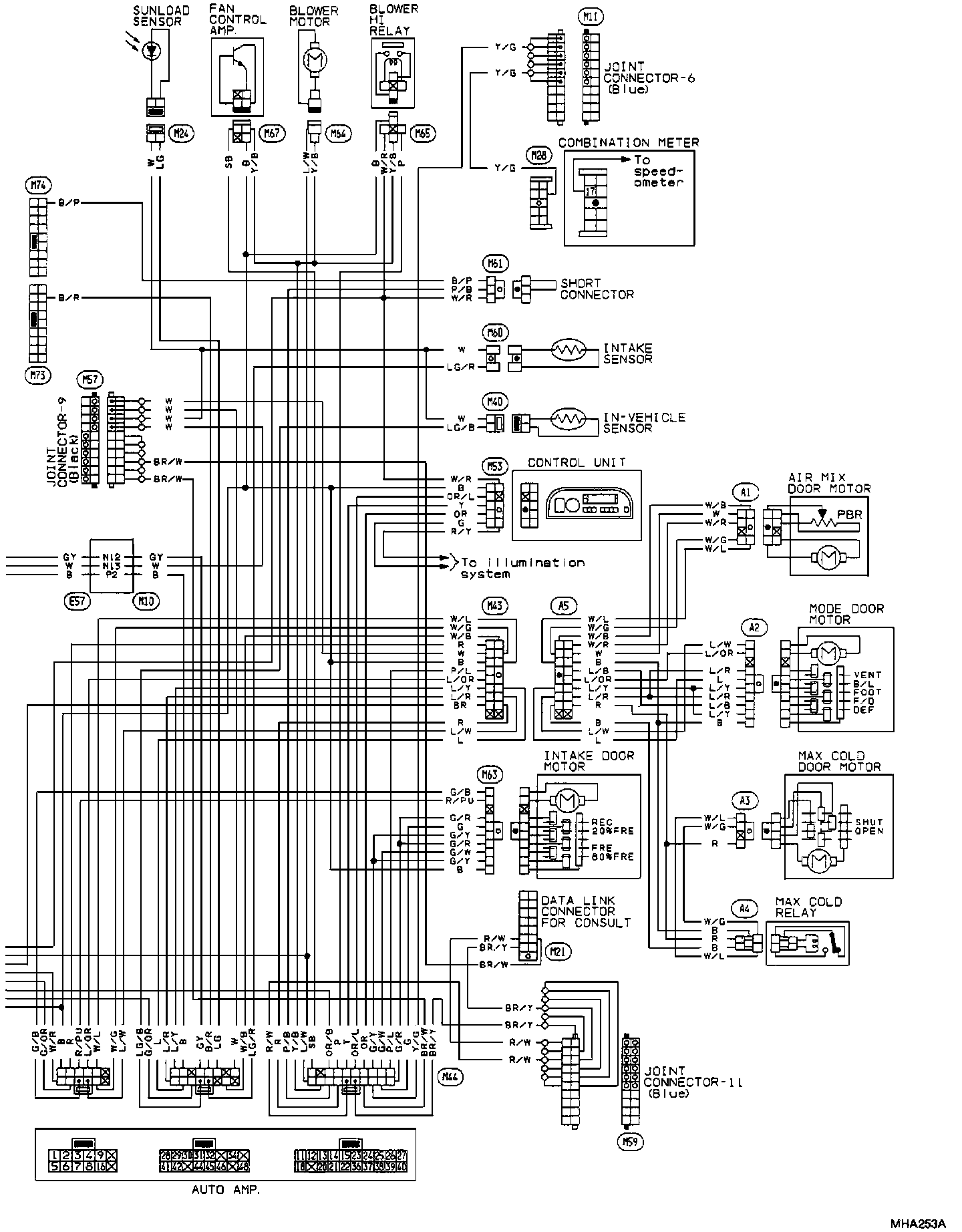

Heating And Air Conditioning (Part 1 Of 2):



Heating And Air Conditioning (Part 2 Of 2):
