Home
>>
Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

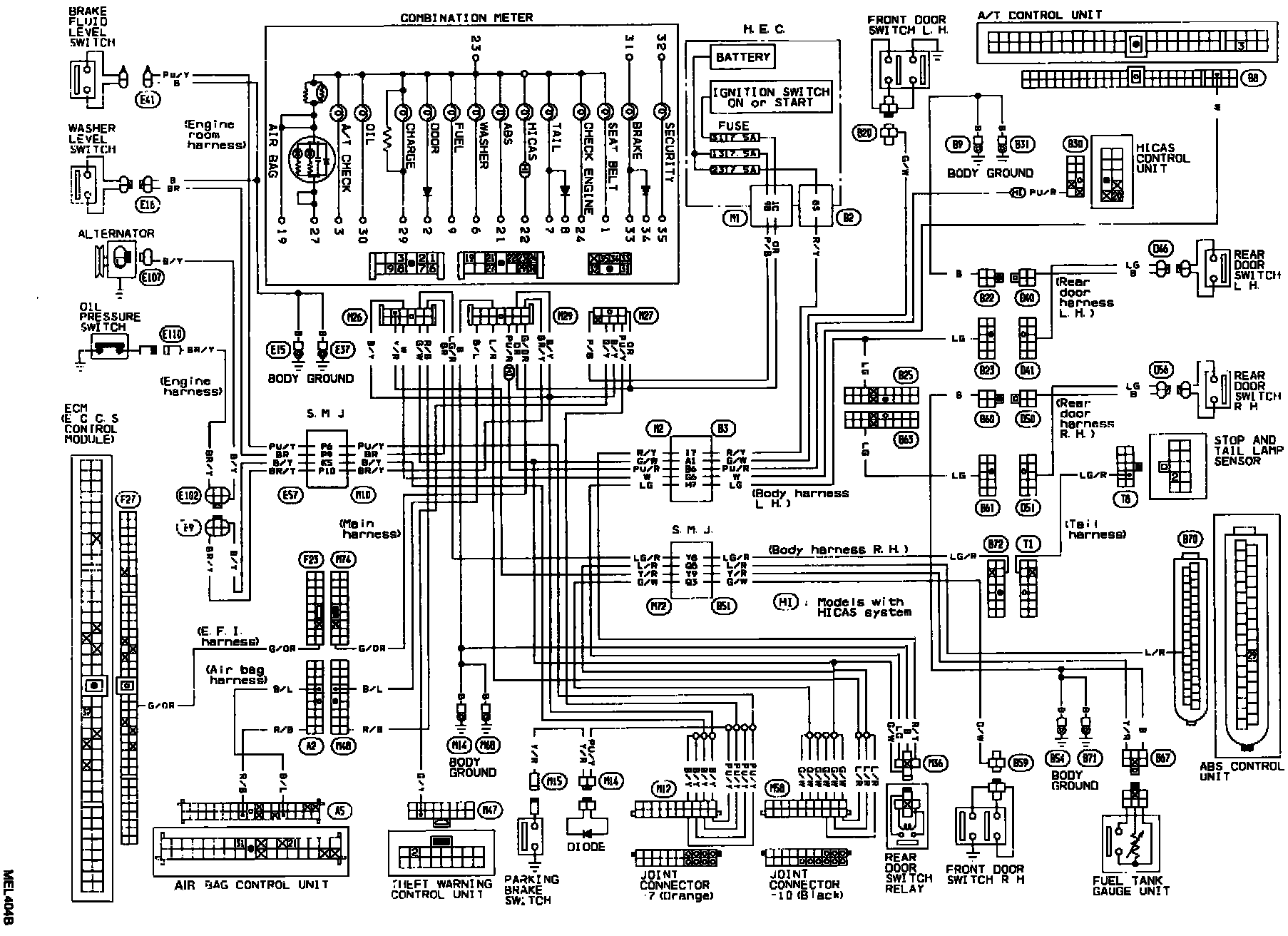

Warning Lamps/Wiring Diagram
Warning Lamps/Wiring Diagram
Warning Lamps/Wiring Diagram:
