Instrument Panel, Gauges and Warning Indicators: Testing and Inspection

Warning Lamp Testing:

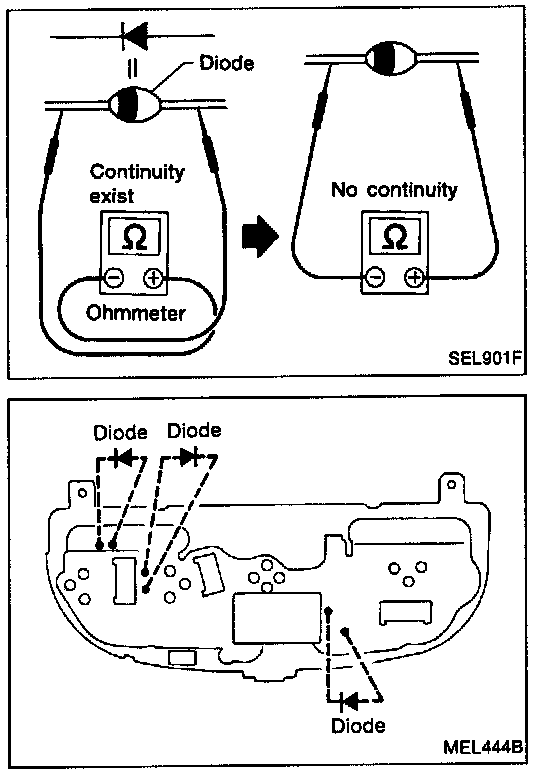

^ Check continuity using an ohmmeter.

^ Diode is functioning properly if test results are as shown in the figure above.

NOTE: Specifications may vary depending on the type of tester. Before performing this Inspection, be sure to refer to the instruction manual of your tester.

^ Diodes for warning lamps are built into the combination meter printed circuit.
