Diode: Testing and Inspection

Diode Check:

Diode:

^ Check continuity using an ohmmeter.

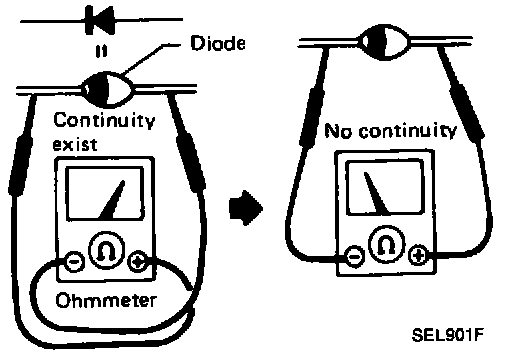

^ Diode is functioning properly if test results are as shown in the figure at left.

^ Diodes for warning lamps are built into the combination meter printed circuit.
