Multiple Junction Connector: Service and Repair

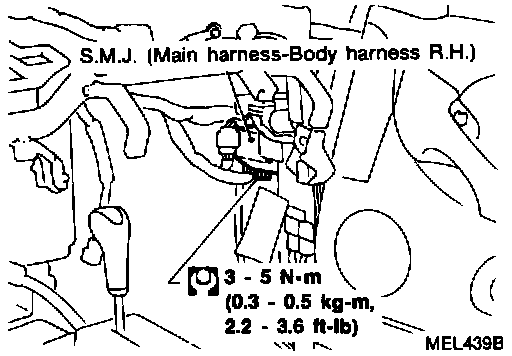

Super Multiple Junction (S.M.J.): Installation:

To install S.M.J., tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.

Torque: 3 - 5 N-m
(0.3 - 0.5 kg-m, 2.2 - 3.6 ft-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
