Using CONSULT Tool

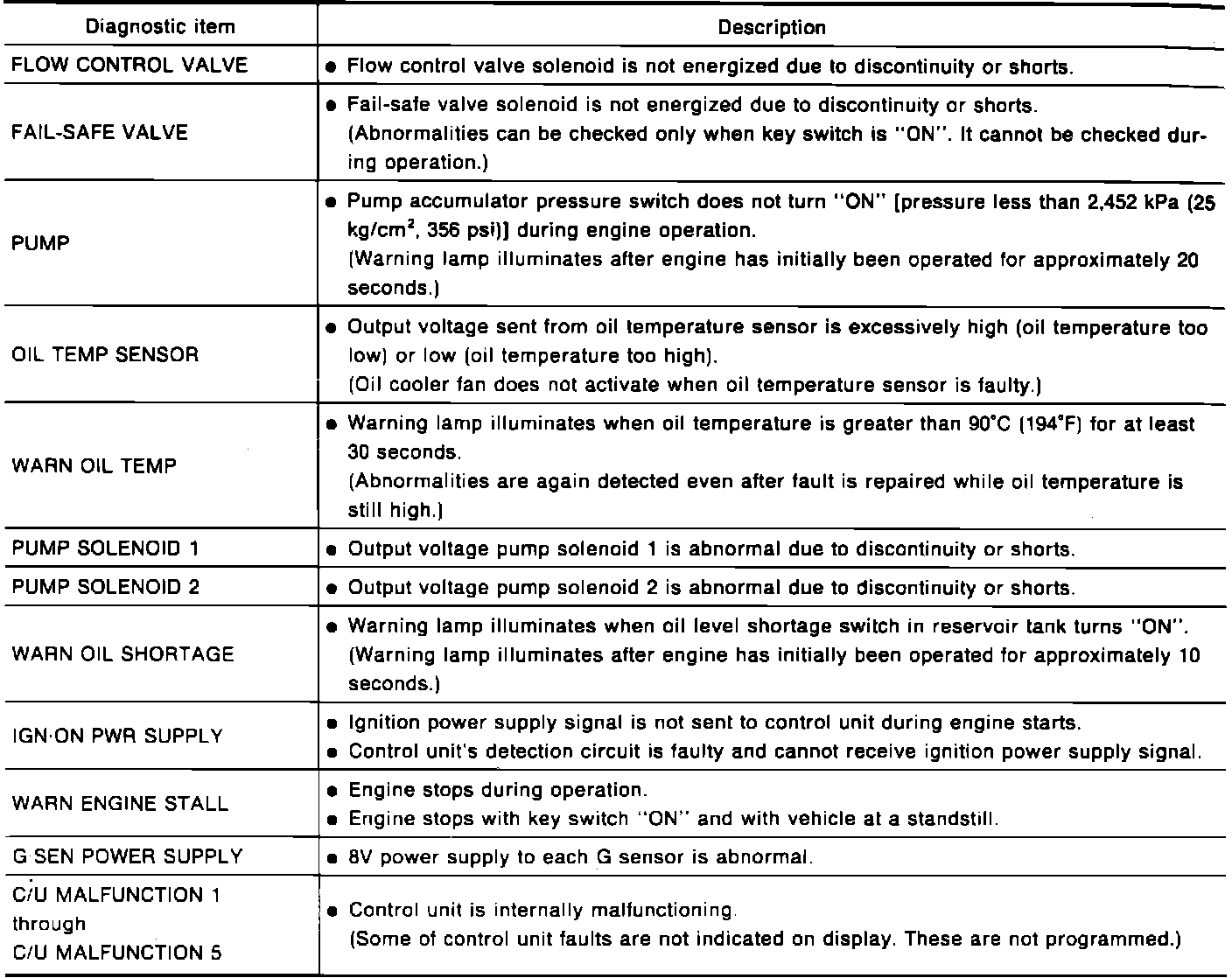

Fig. 4 CONSULT Display Results. Part 1 Of 2:

Fig. 4 CONSULT Display Results. Part 2 Of 2:

1. Turn ignition switch OFF and connect CONSULT connector to diagnostic connector located on fuse box, at lower left side of instrument panel.
2. Start engine, then touch START, ACTIV SUS and SELF-DIAG RESULTS on the CONSULT display.
3. A self-diagnostic result will be shown on display. Refer to Fig. 4 for explanation of display results.
4. Refer to DIAGNOSTIC CHARTS, after self-diagnostic display results have been interpreted.
