Wiring Diagram

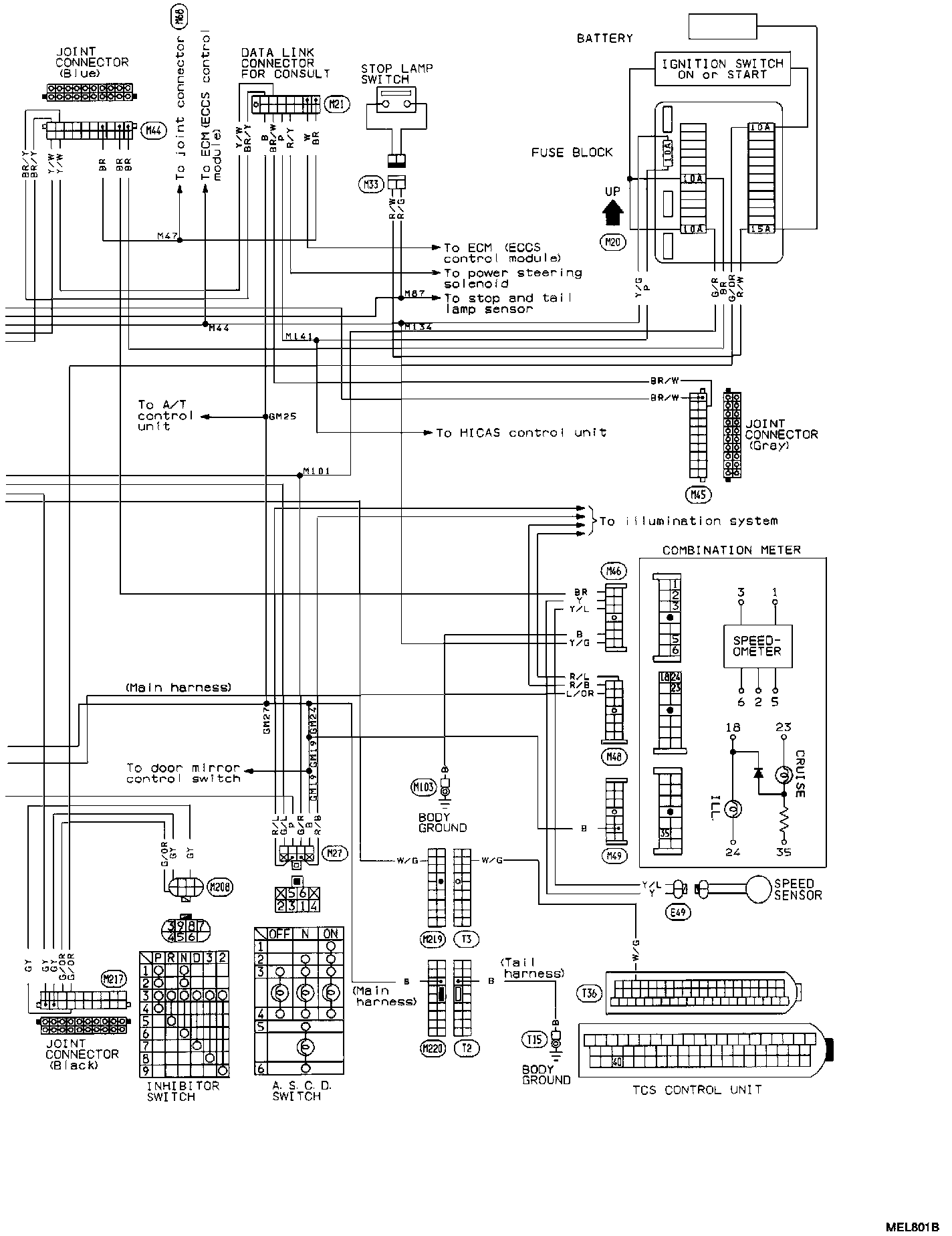

Automatic Speed Control Device Wiring Diagram (Part 1 0f 2):

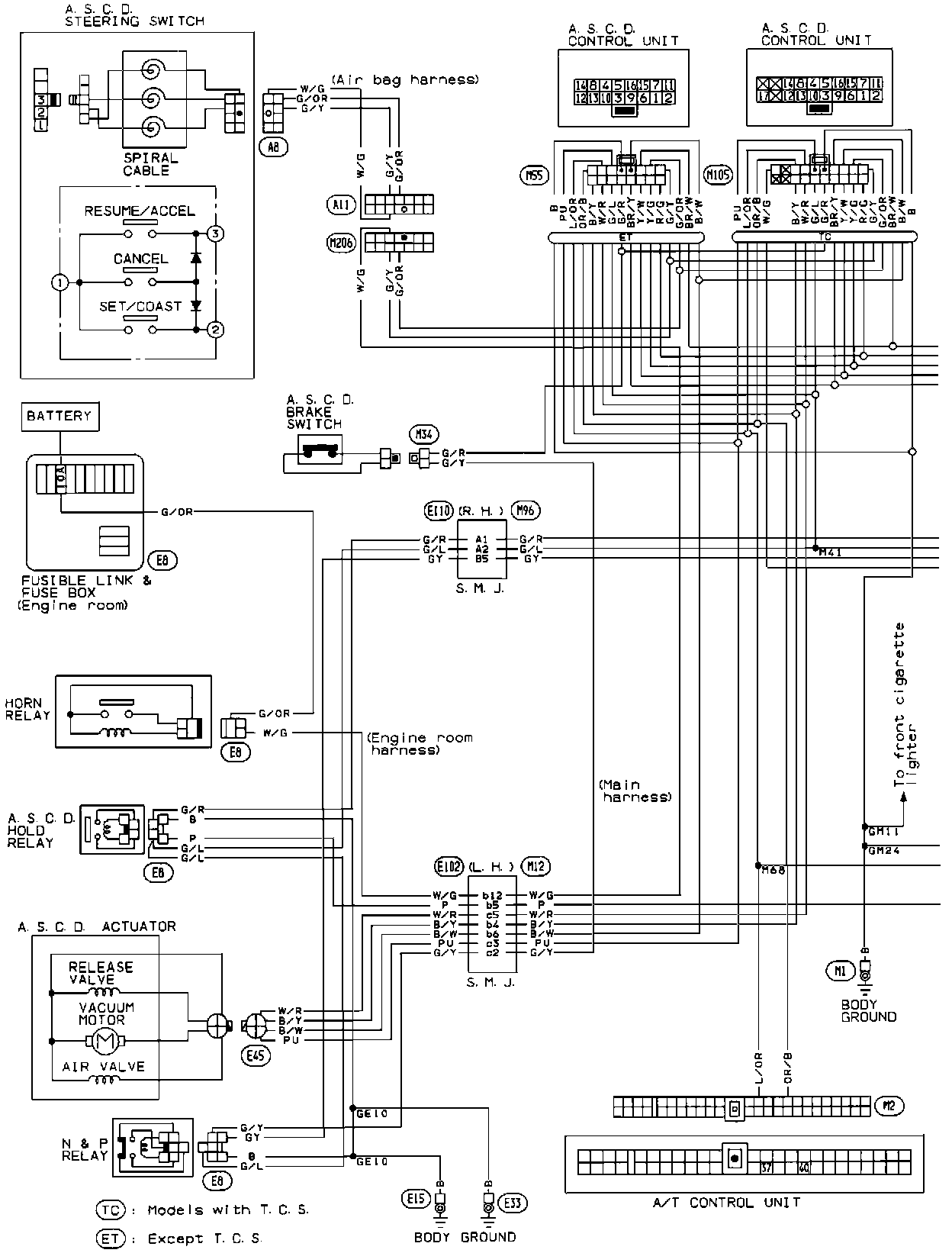

Automatic Speed Control Device Wiring Diagram (Part 2 0f 2):
